Interlock Kit KS-8112
$349.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

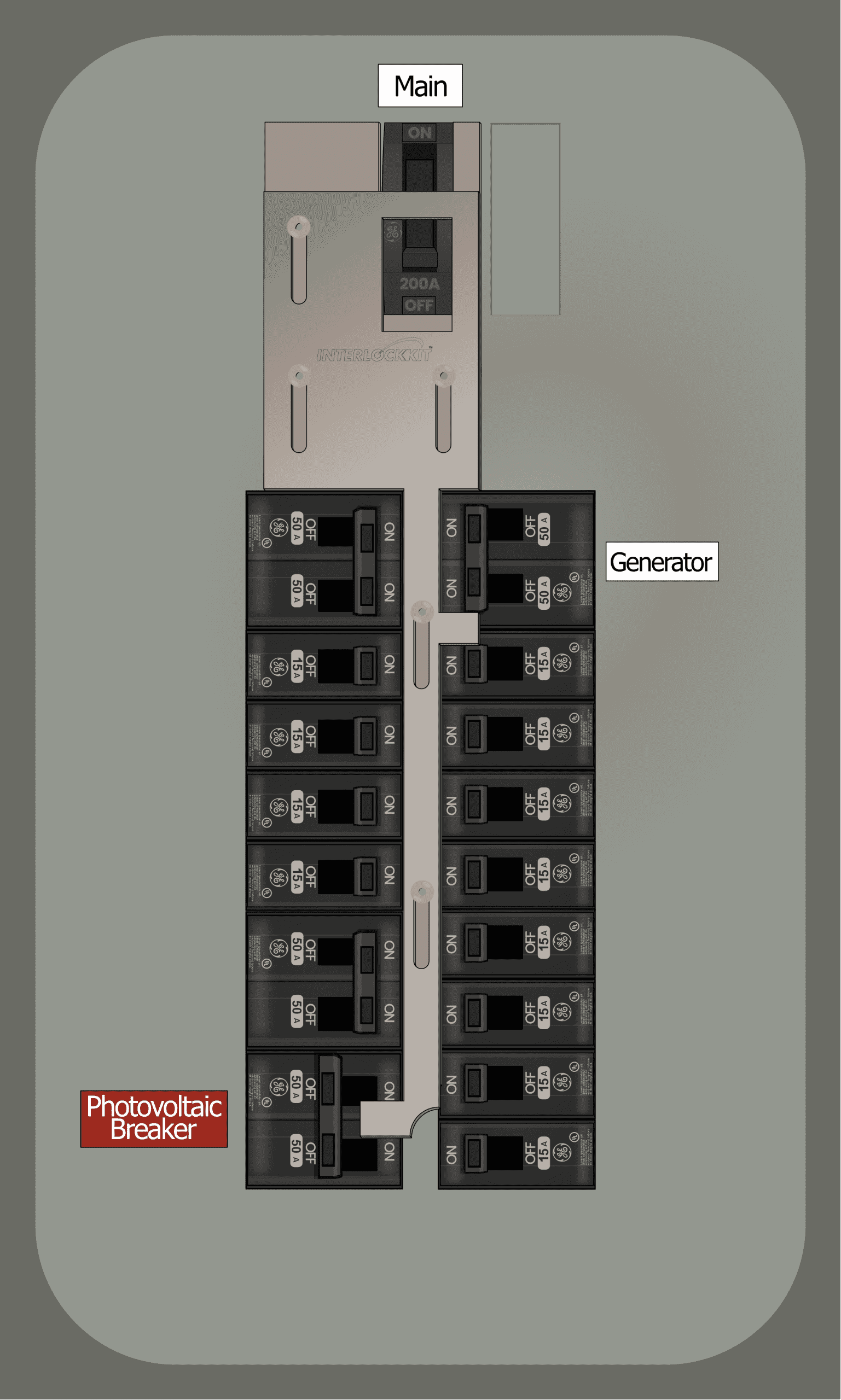

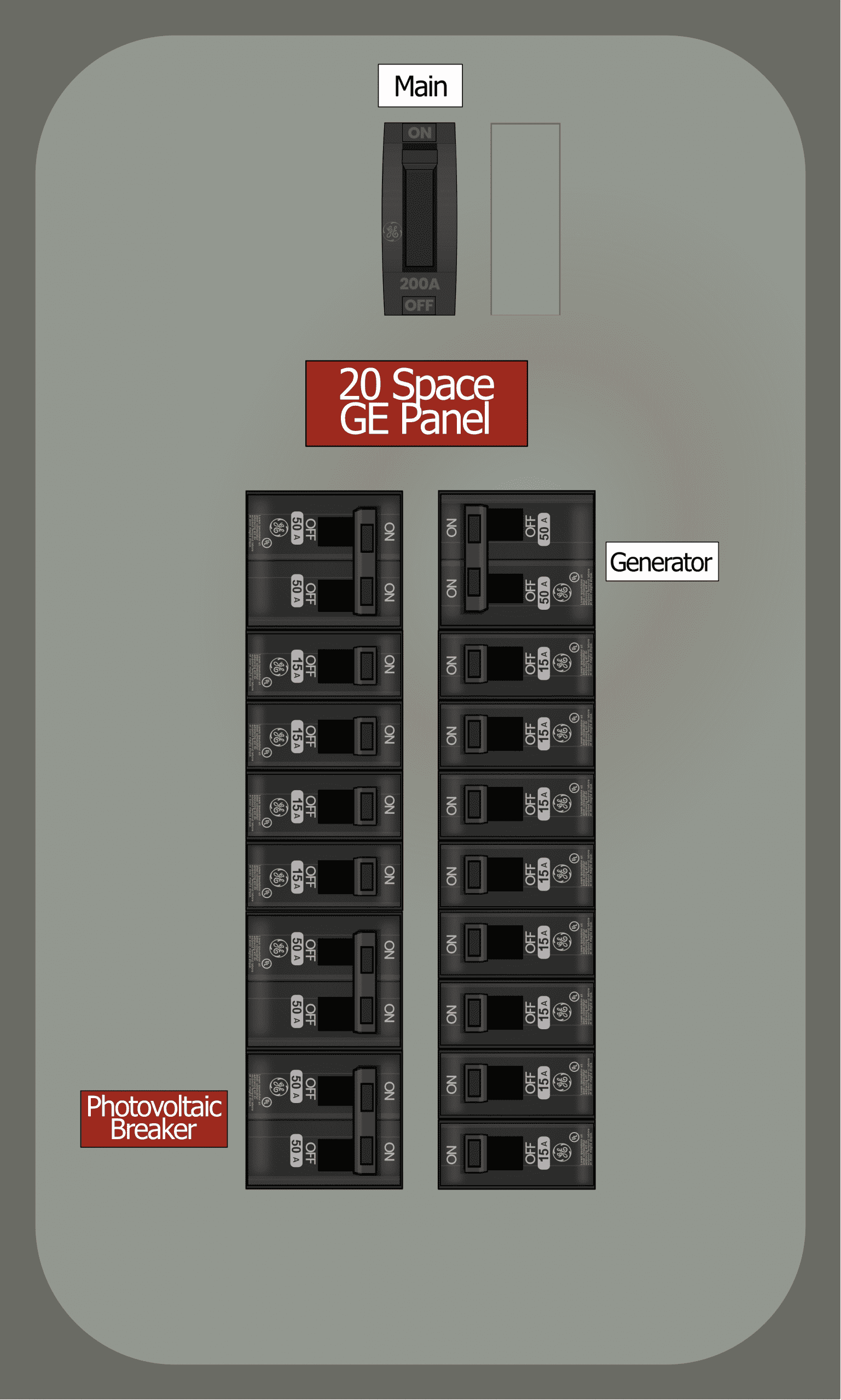

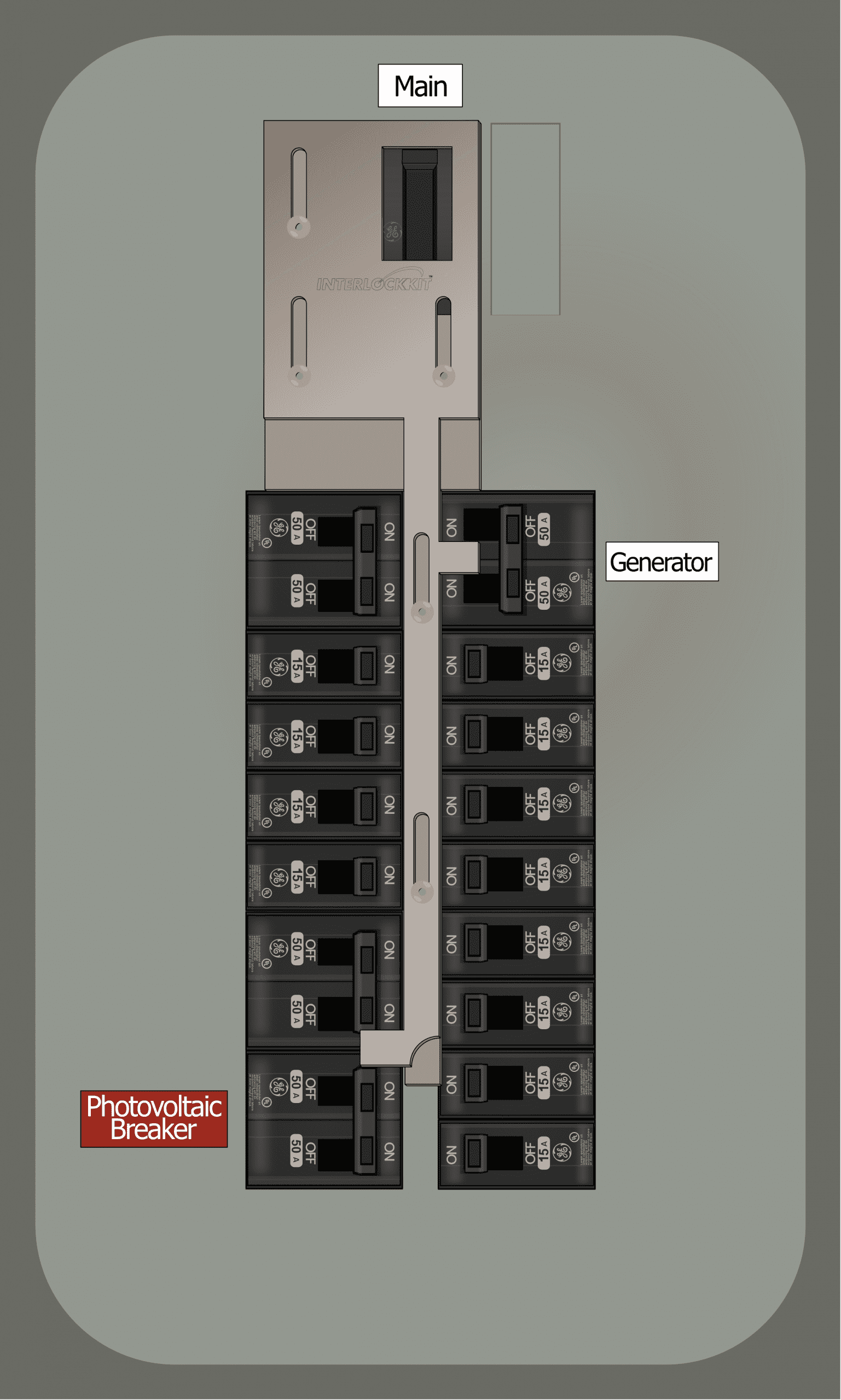

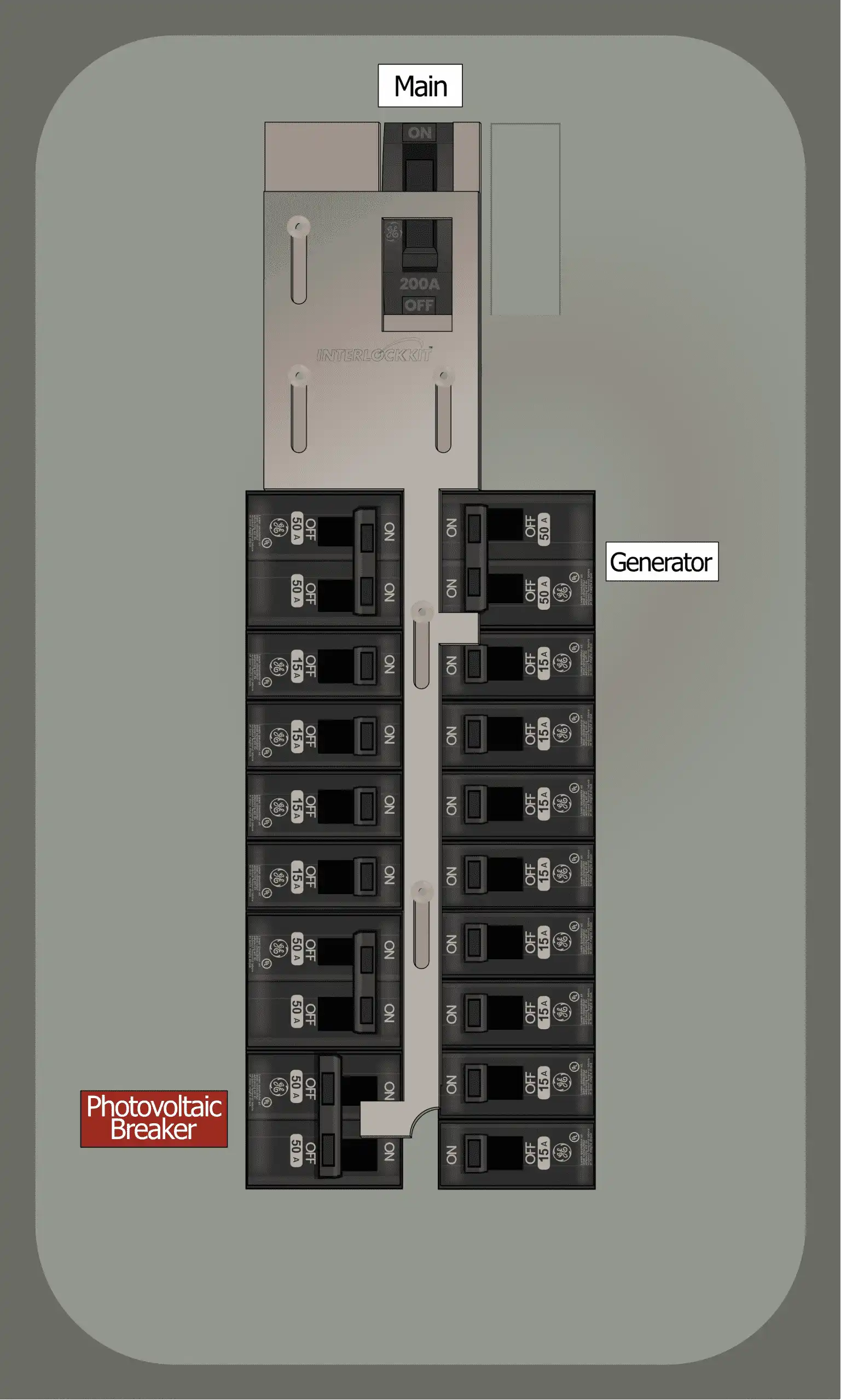

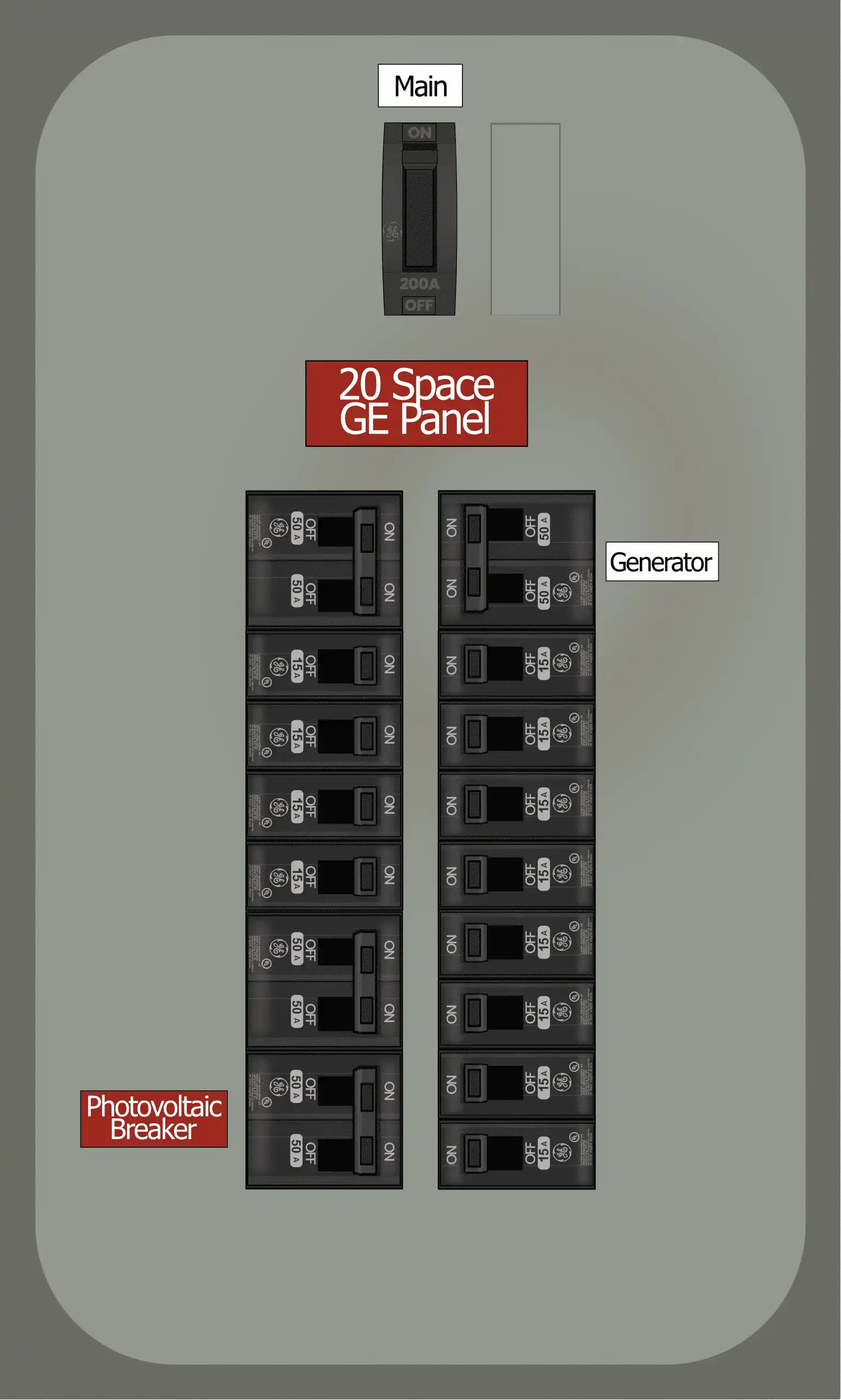

This Interlock Kit mounts to GE electrical panels with the following features:
- SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT
- Space between breaker columns: 1/2"
- 200 amp main breaker
- Main breaker toggle action: vertical (up-down) throw direction
- Main breaker is centered 2 1/2" above the breaker column
Requirements:
- Install a generator breaker in the top of the right column
- Install a solar breaker in the bottom of the left breaker column
- Compatible with 20 space 40 circuit panels. 20 1" spaces
Additional information
| Weight | 2 lbs |
|---|---|
| Catalog # | mc2040b1200esc |
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!
