Interlock Kit KS-6716
$349.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

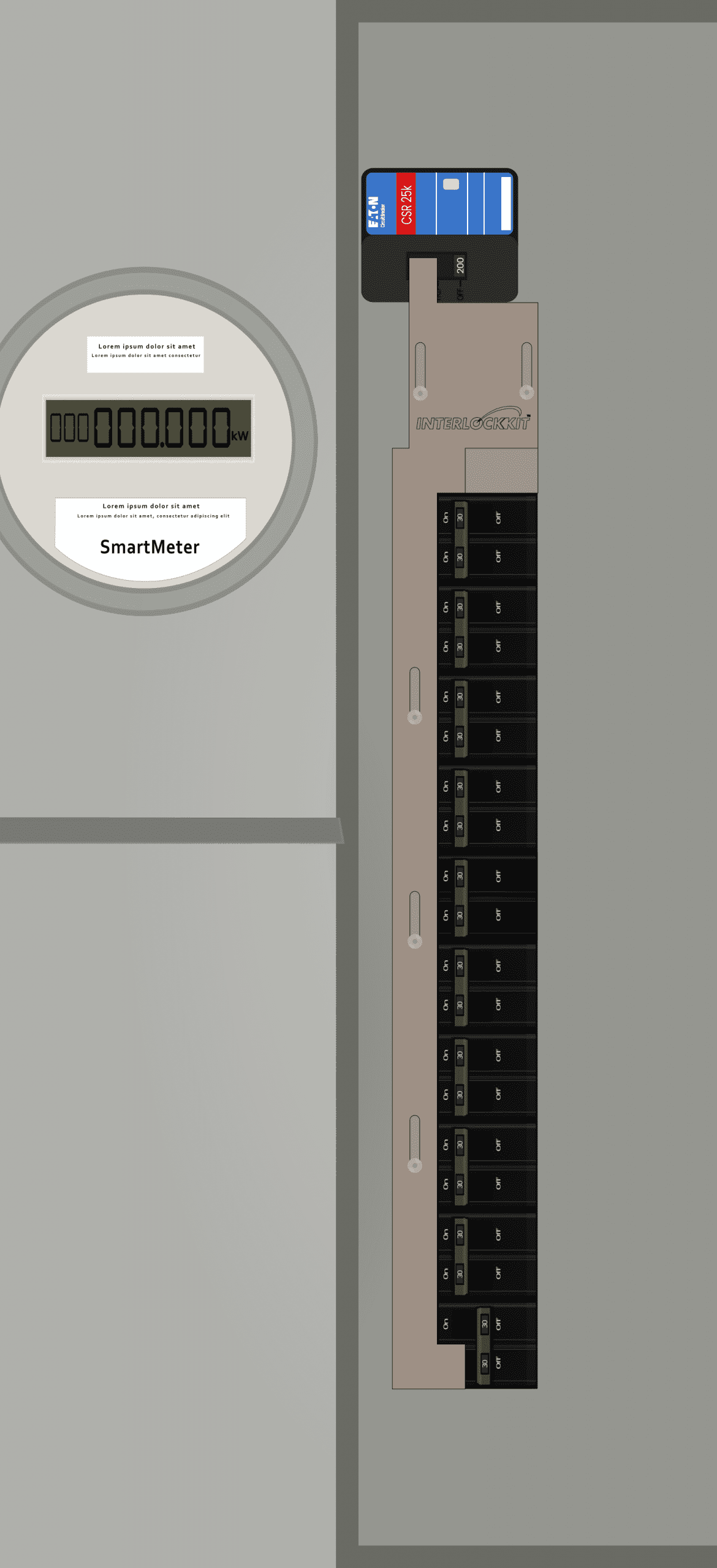

This Interlock Kit mounts to EATON electrical panels with the following features:
- SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT

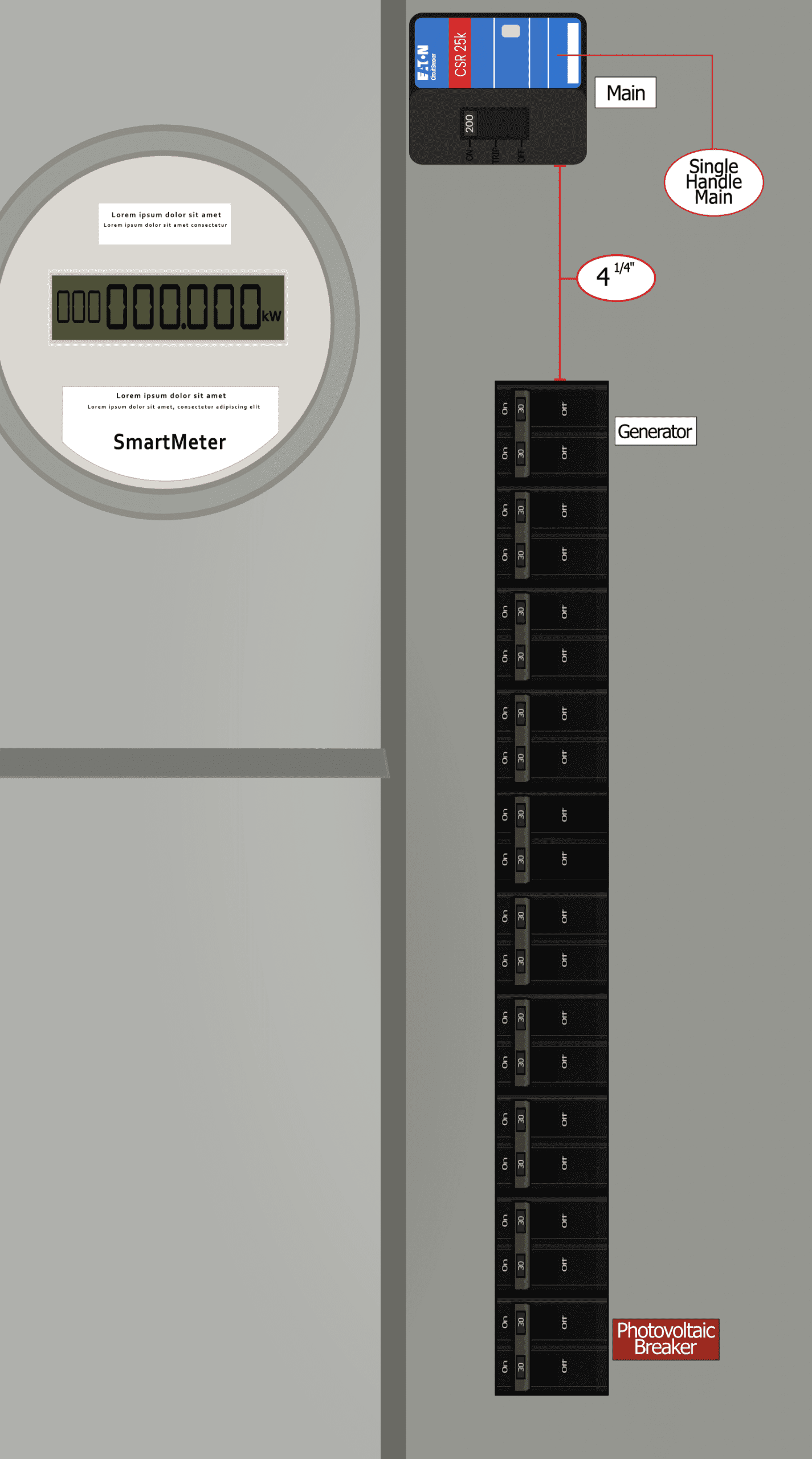

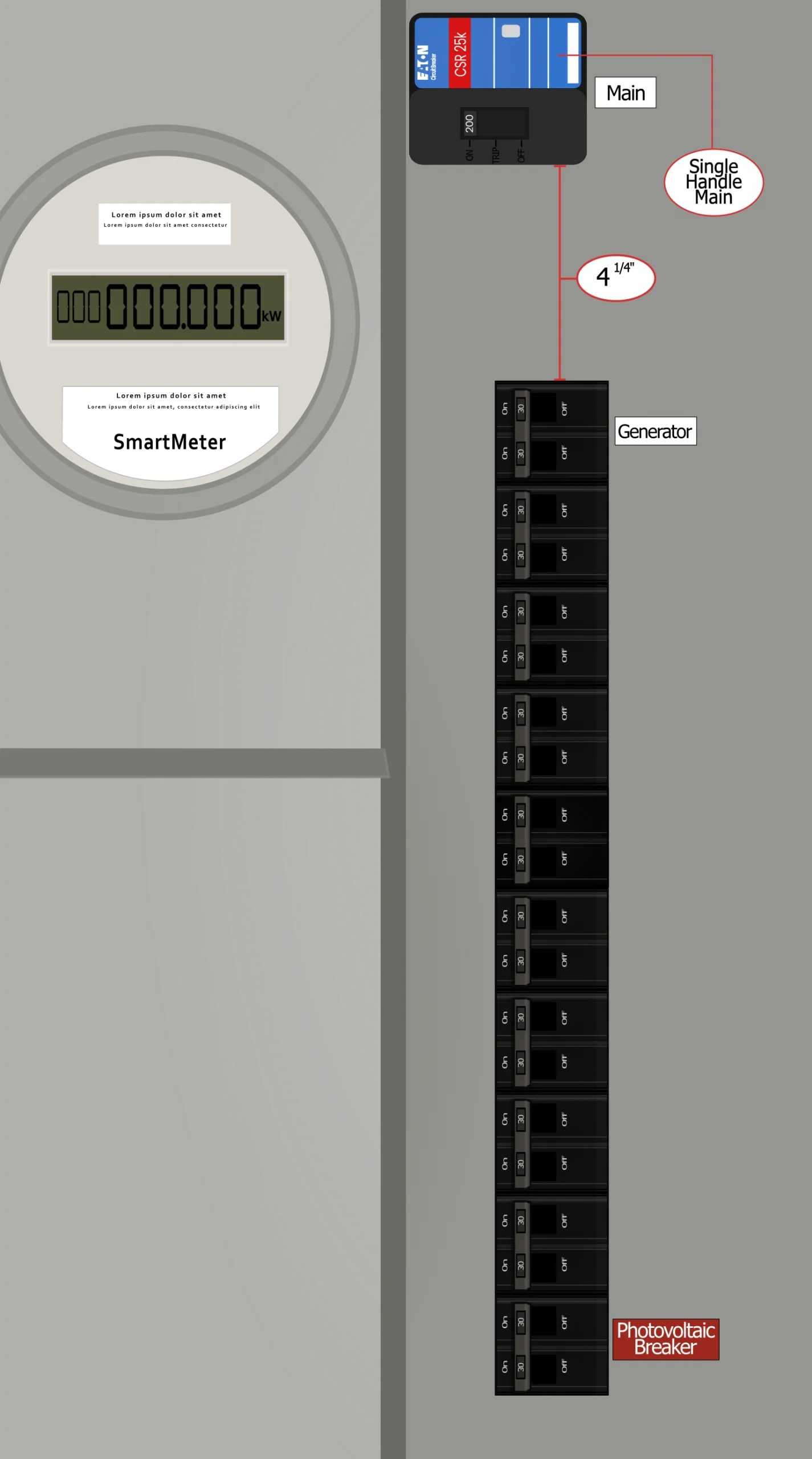

- Gap between main breaker and columns below: 4 1/4
- 150-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction
- Main breaker is offset left of the breaker column
Requirements:
- Install a generator breaker at the top of the right column: spaces 1 & 2
- Install a solar breaker in the bottom of the branch circuit column
- Compatible with 20 space 40 circuit panels. 20 1" spaces in the column
- Page four of the installation instructions includes a list of contents included in Kit KS-6716
call for more details about modified kits: (804)726-2448
Additional information
| Weight | 2 lbs |
|---|
