Interlock Kit KS-6512

$349.95

44 in stock

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

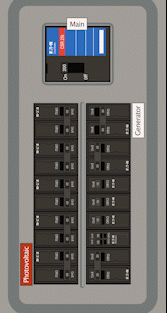

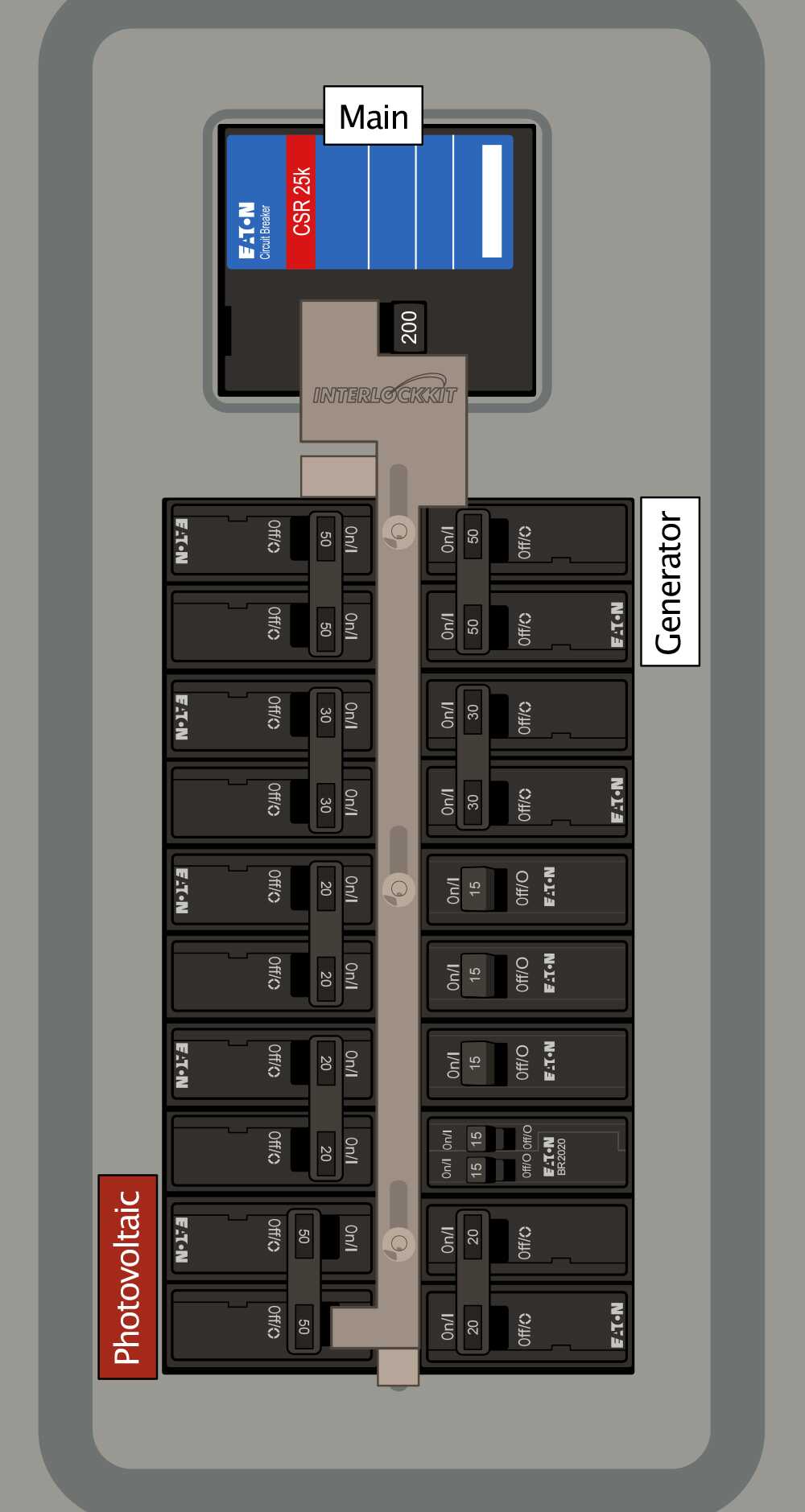

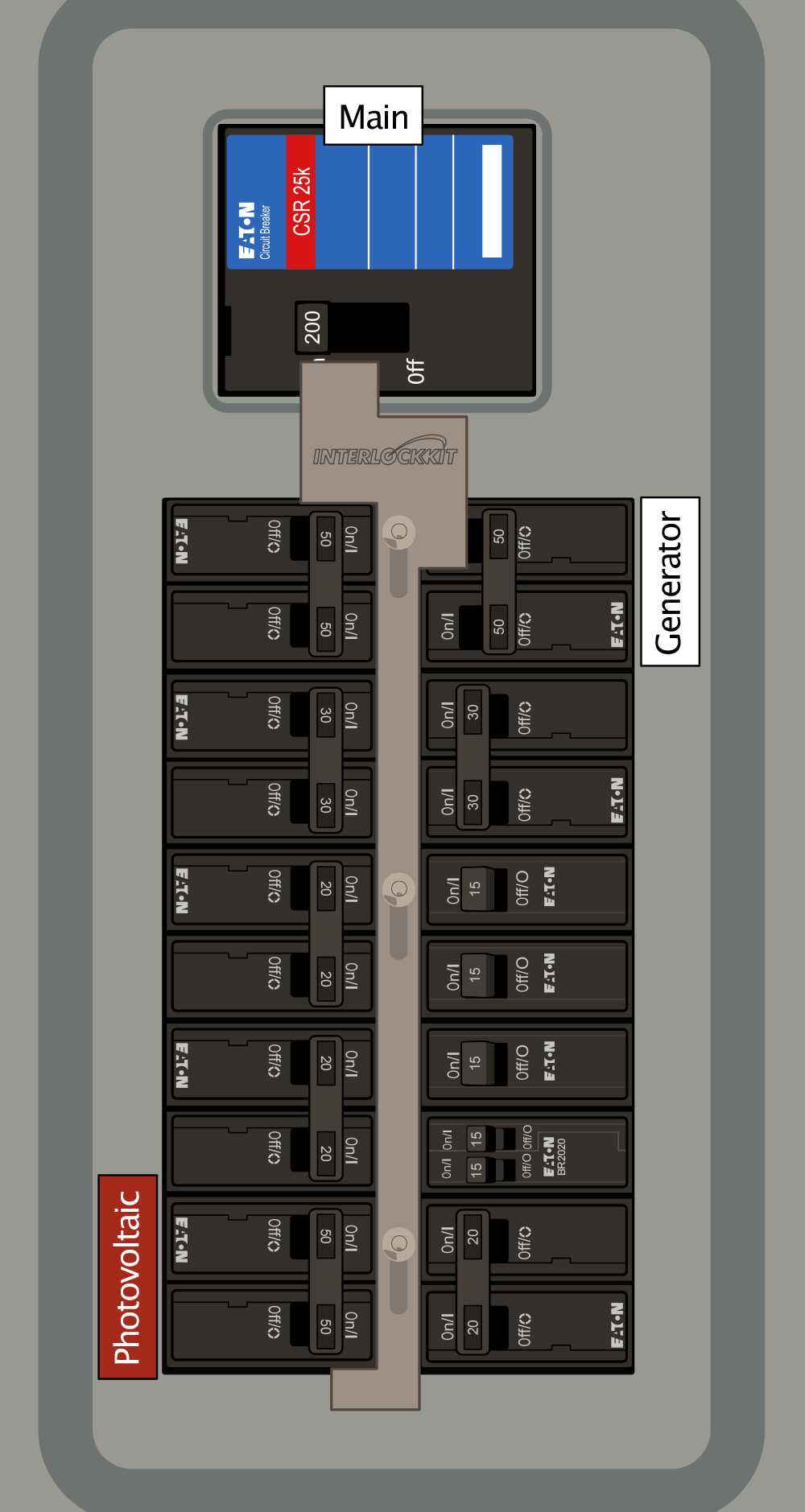

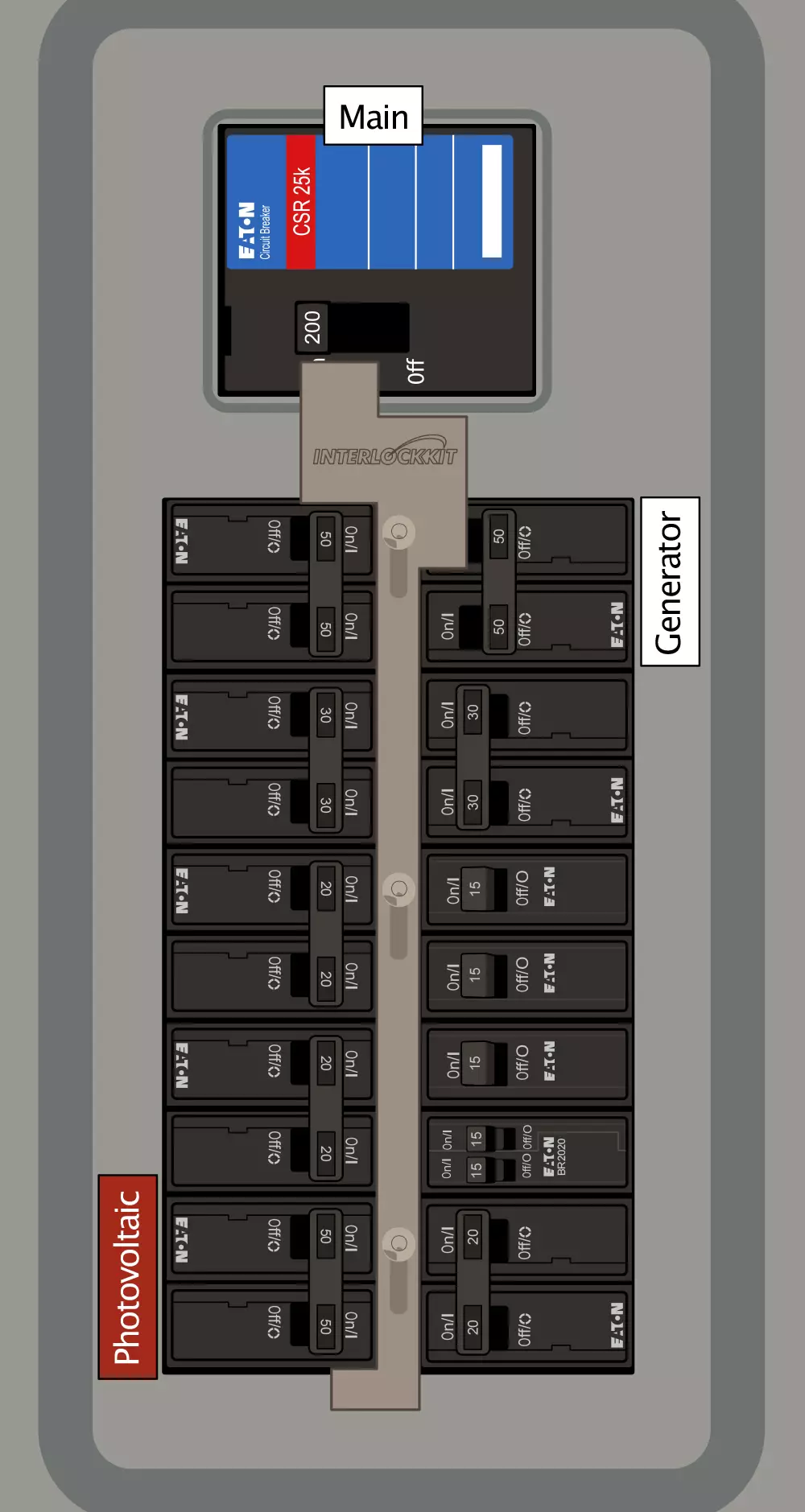

This Interlock Kit mounts to EATON electrical panels with the following features:

  • SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT
  • Space between breaker columns: 1/2"

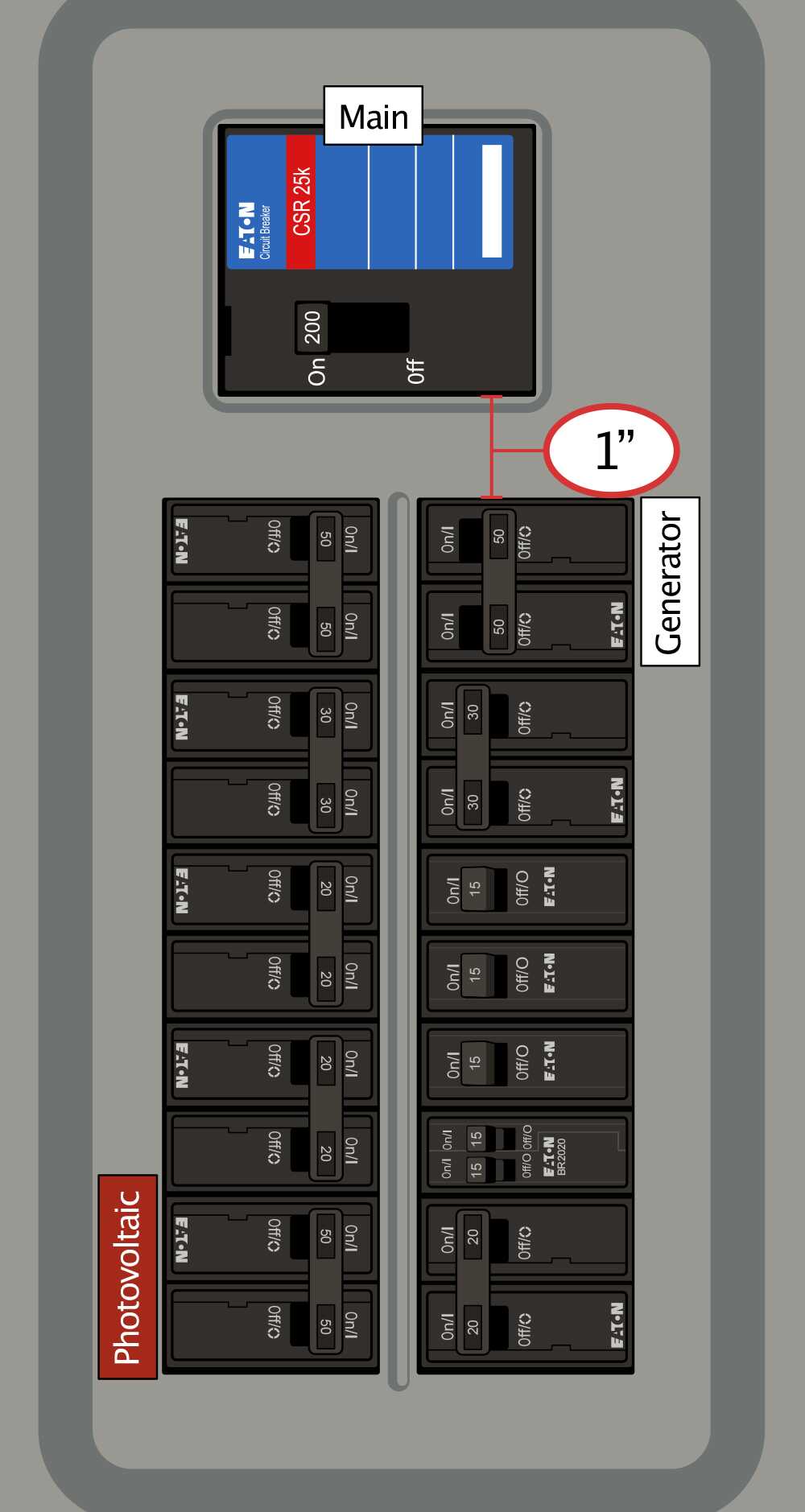

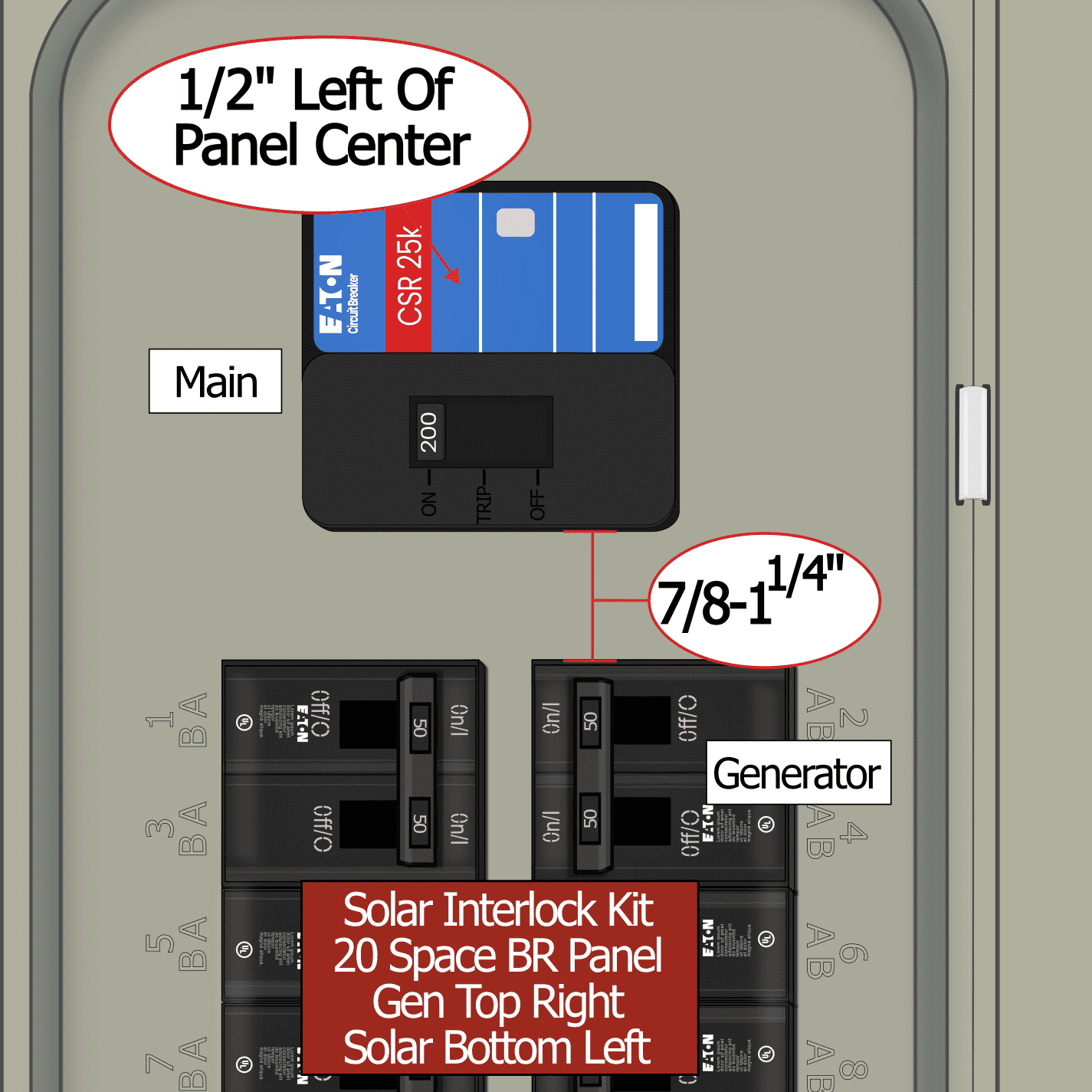

  • Gap between main breaker and columns below: 1 1/4 - 1 1/2"
  • 150-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction
  • Main breaker is centered over both breaker columns

Requirements:

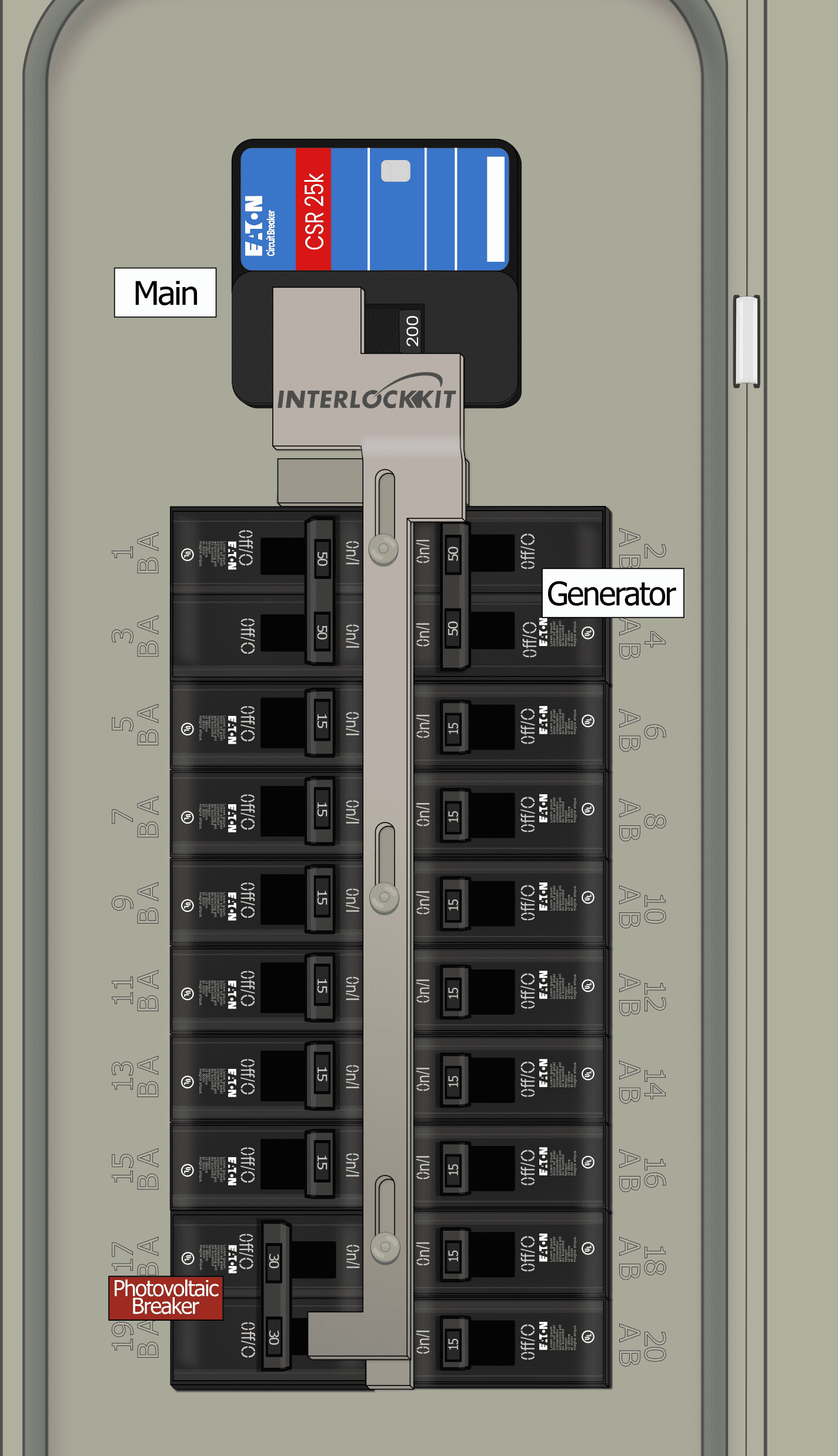

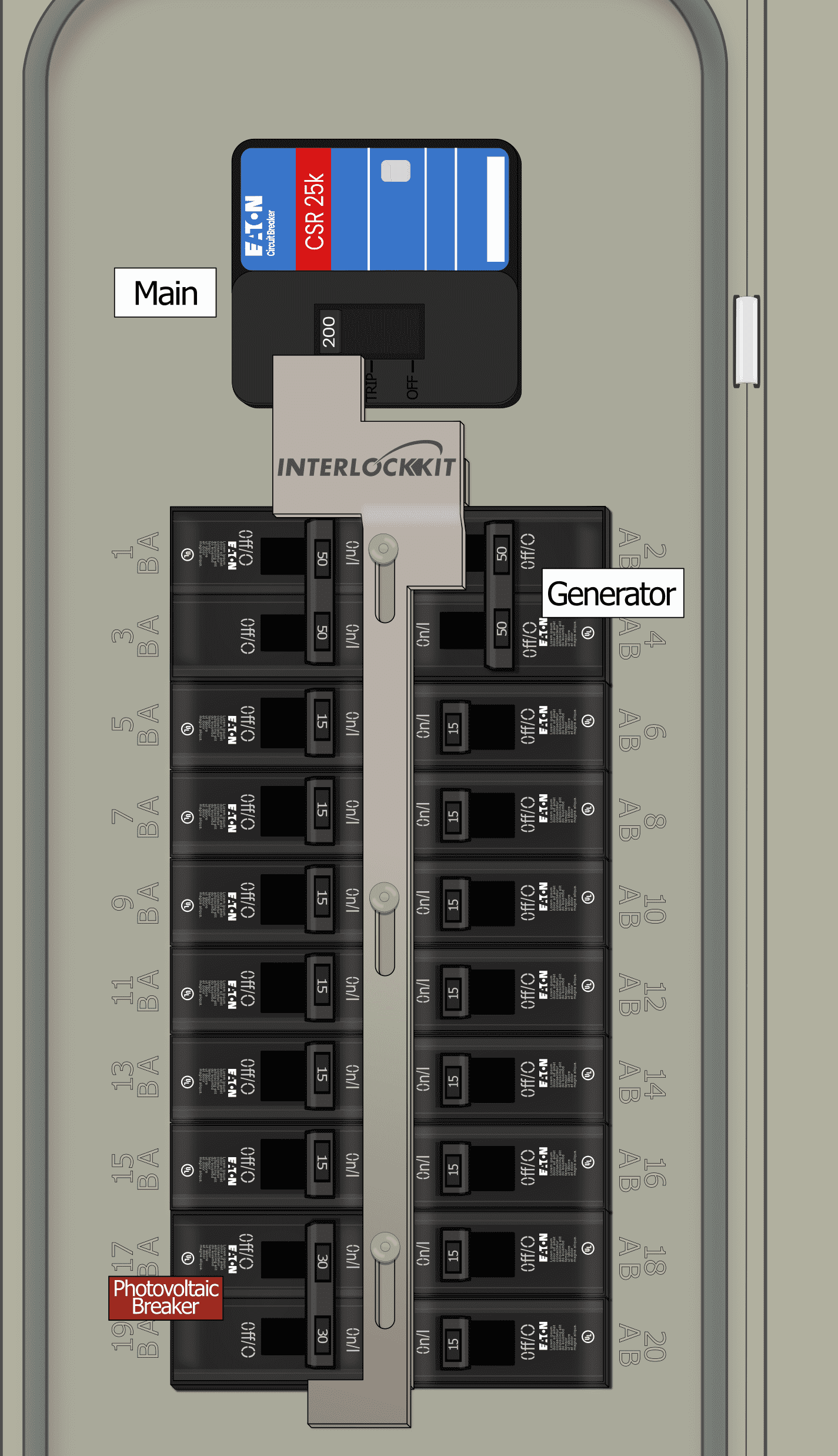

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Install a solar breaker in the bottom left corner of the branch circuit columns
  • Compatible with 20 space 40 circuit panels. 10 1" spaces in the left column & 10 1" spaces in the right
  • Page four of the installation instructions includes a list of contents included in Kit K-5012

Modified versions of this Interlock Kit exist, see: KS-6513, KS-6514 (solar modified Interlock Kit) call for more details about modified kits: (804)726-2448

Additional information

Weight 2 lbs
