Interlock Kit KS-6014

$349.95

48 in stock

You need extra 350 Points for getting this product for free

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

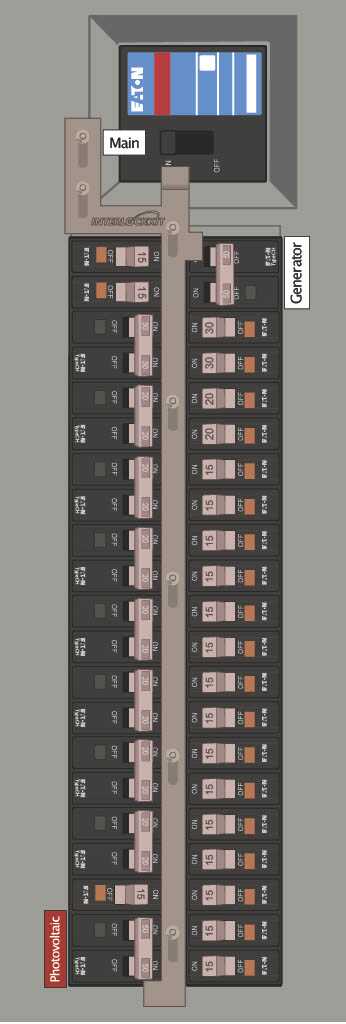

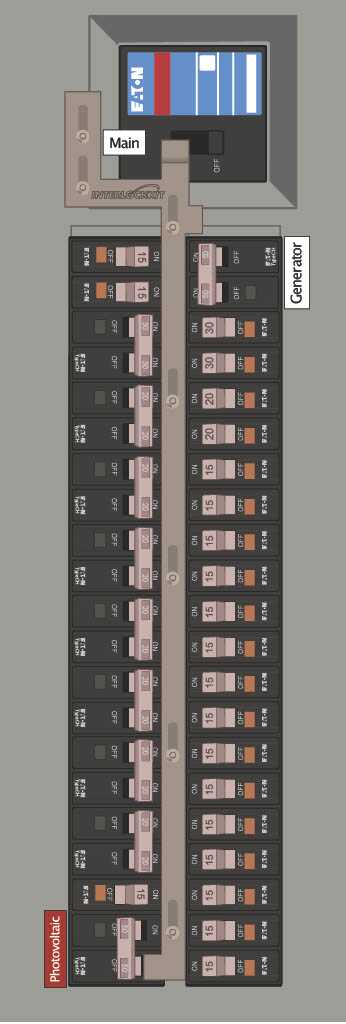

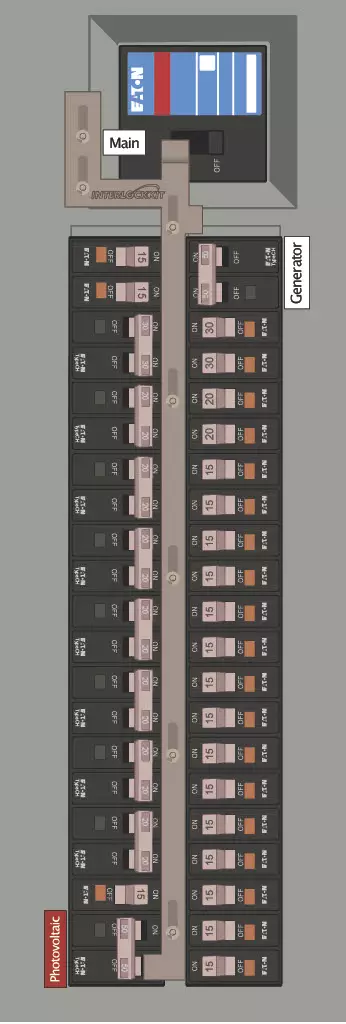

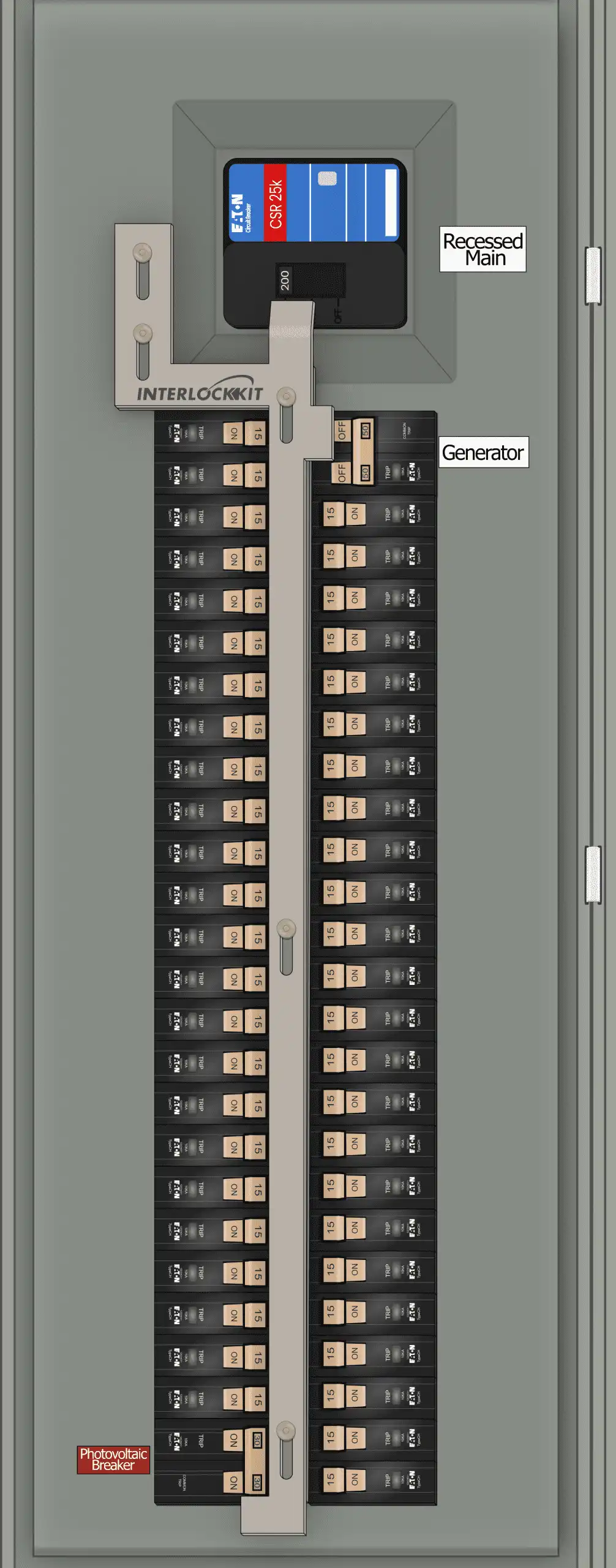

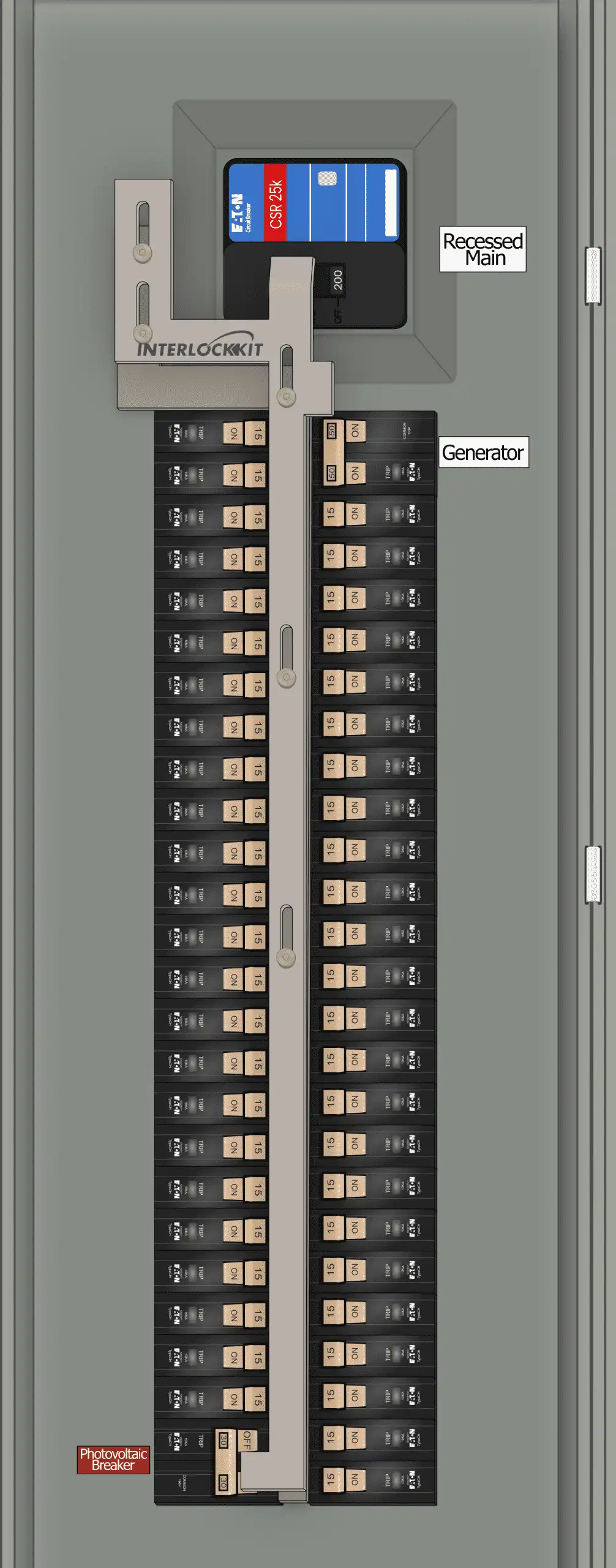

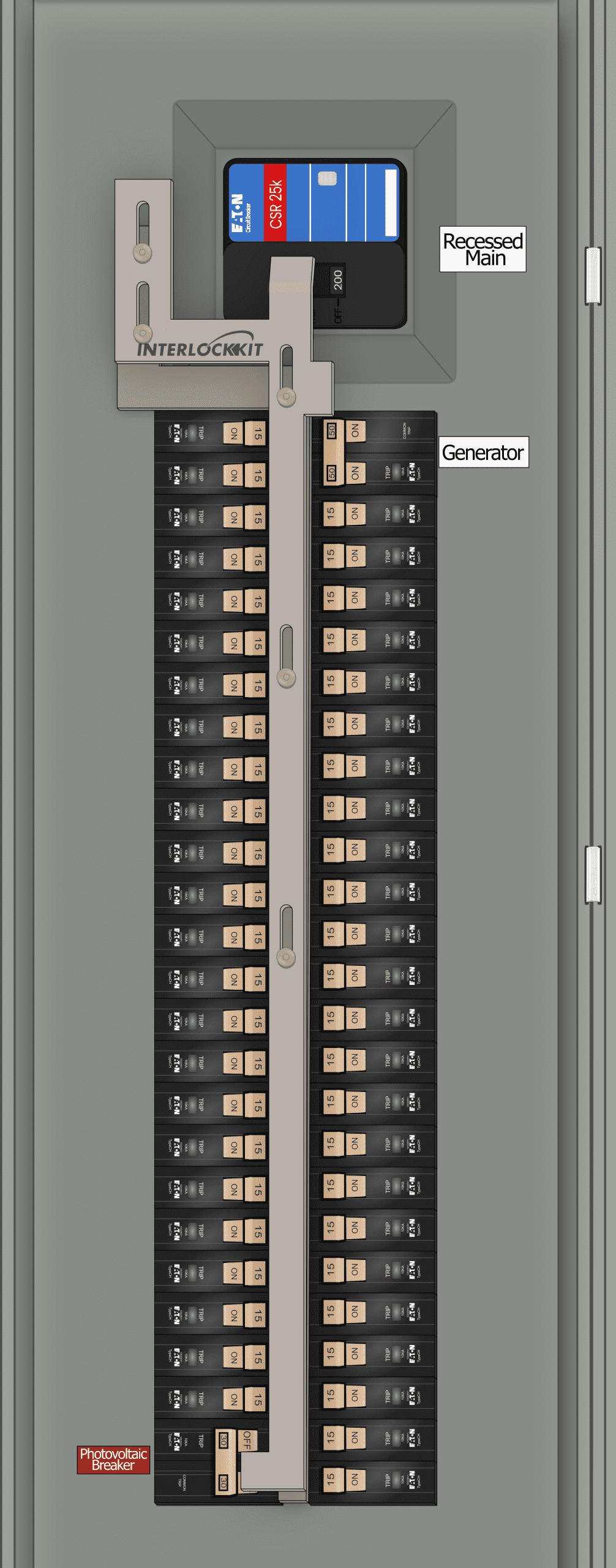

This Interlock Kit mounts to EATON electrical panels with the following features:

  • SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT

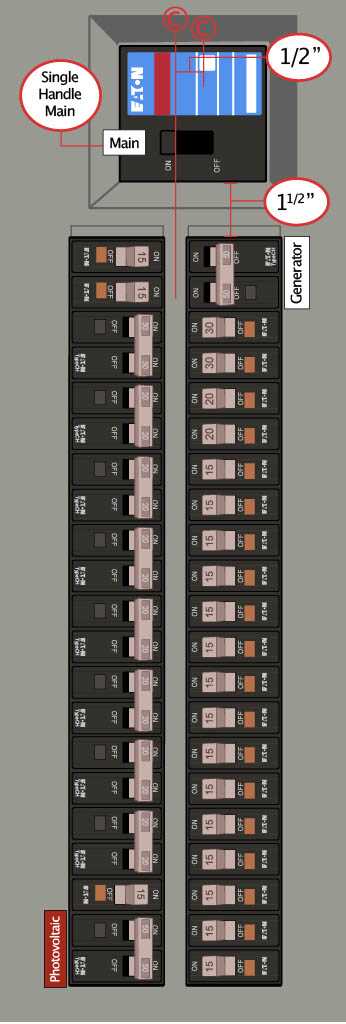

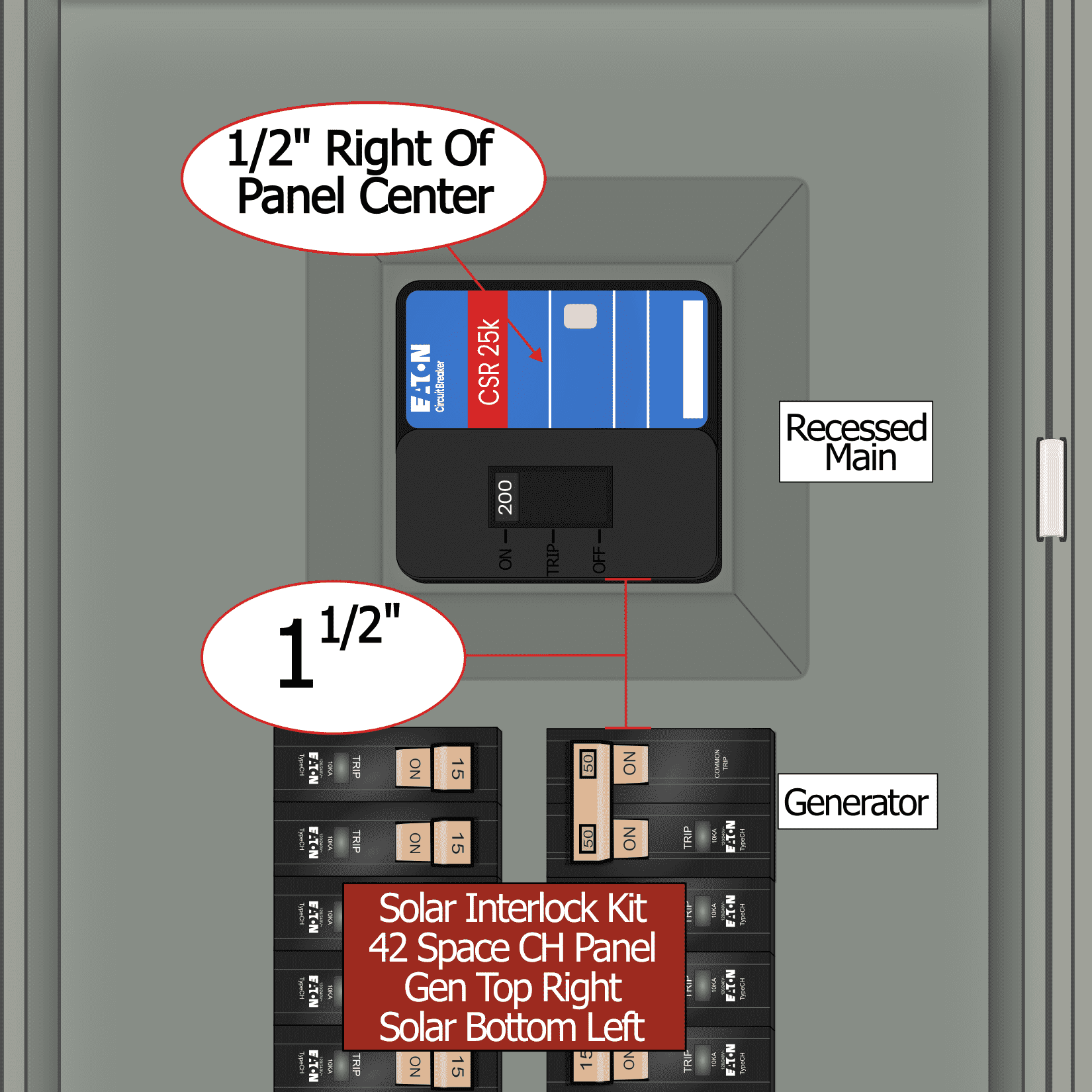

  • Space between breaker columns: 1/2"
  • Gap between main breaker and columns below: 1 1/2"
  • 150-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction
  • Main breaker is centered over both breaker columns

Requirements:

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Install a solar breaker in the bottom left corner of the branch circuit columns
  • Compatible with 42 space 84 CH circuit panels. 21 3/4 inch spaces in the left column & 21 3/4 inch spaces in the right column.
  • Page four of the installation instructions includes a list of contents included in Kit KS-6014

Modified versions of this Interlock Kit exist, see: KS-6012, KS-6013 (solar modified Interlock Kit) call for more details about modified kits: (804)726-2448

Additional information

Weight 2 lbs
