Interlock Kit KS-5013

$349.95

50 in stock

You need extra 350 Points for getting this product for free

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

This Interlock Kit mounts to Square D electrical panels with the following features:

  • SOLAR & GENERATOR COMPATIBLE INTERLOCK KIT
  • Space between breaker columns: 1/2"

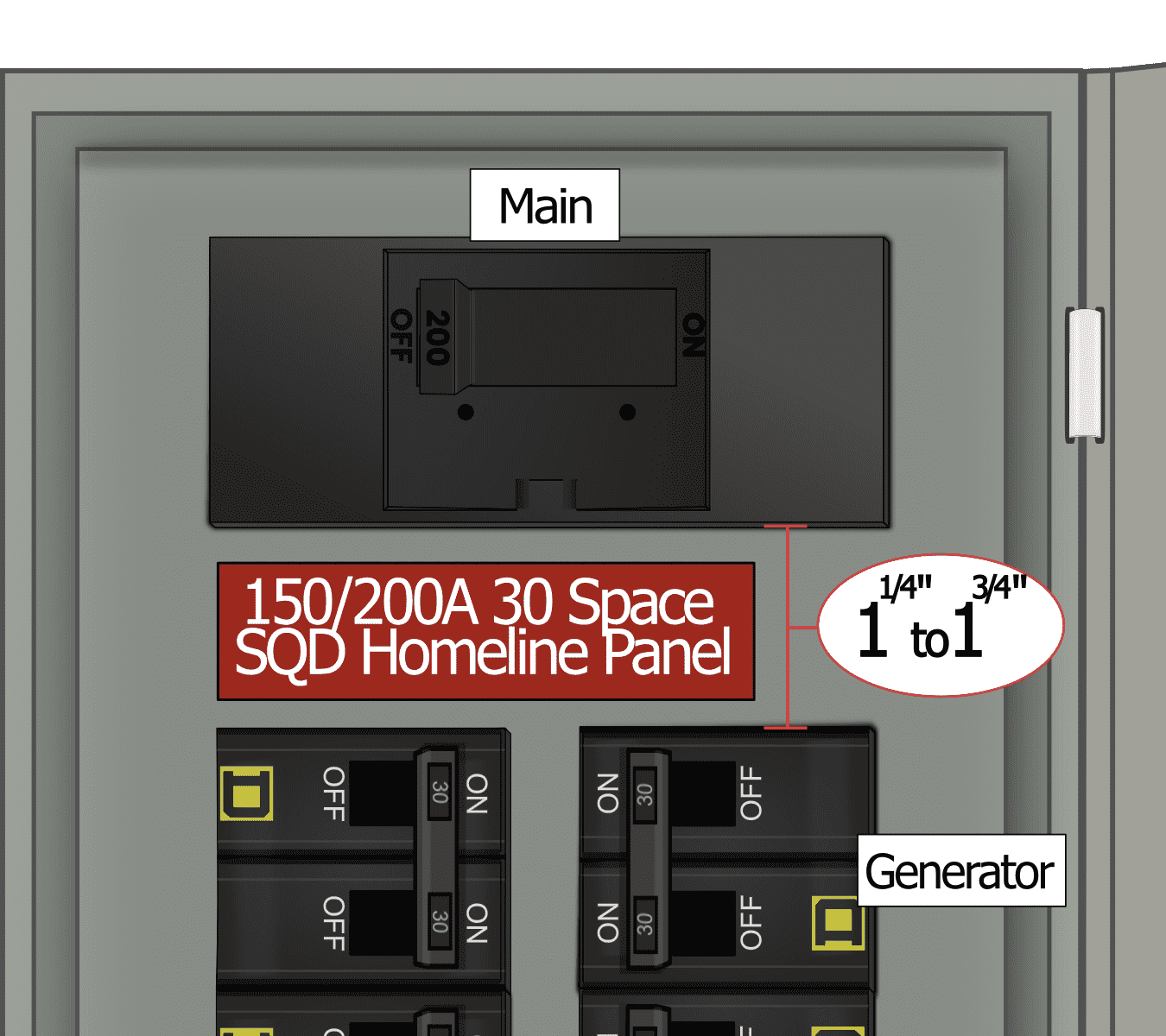

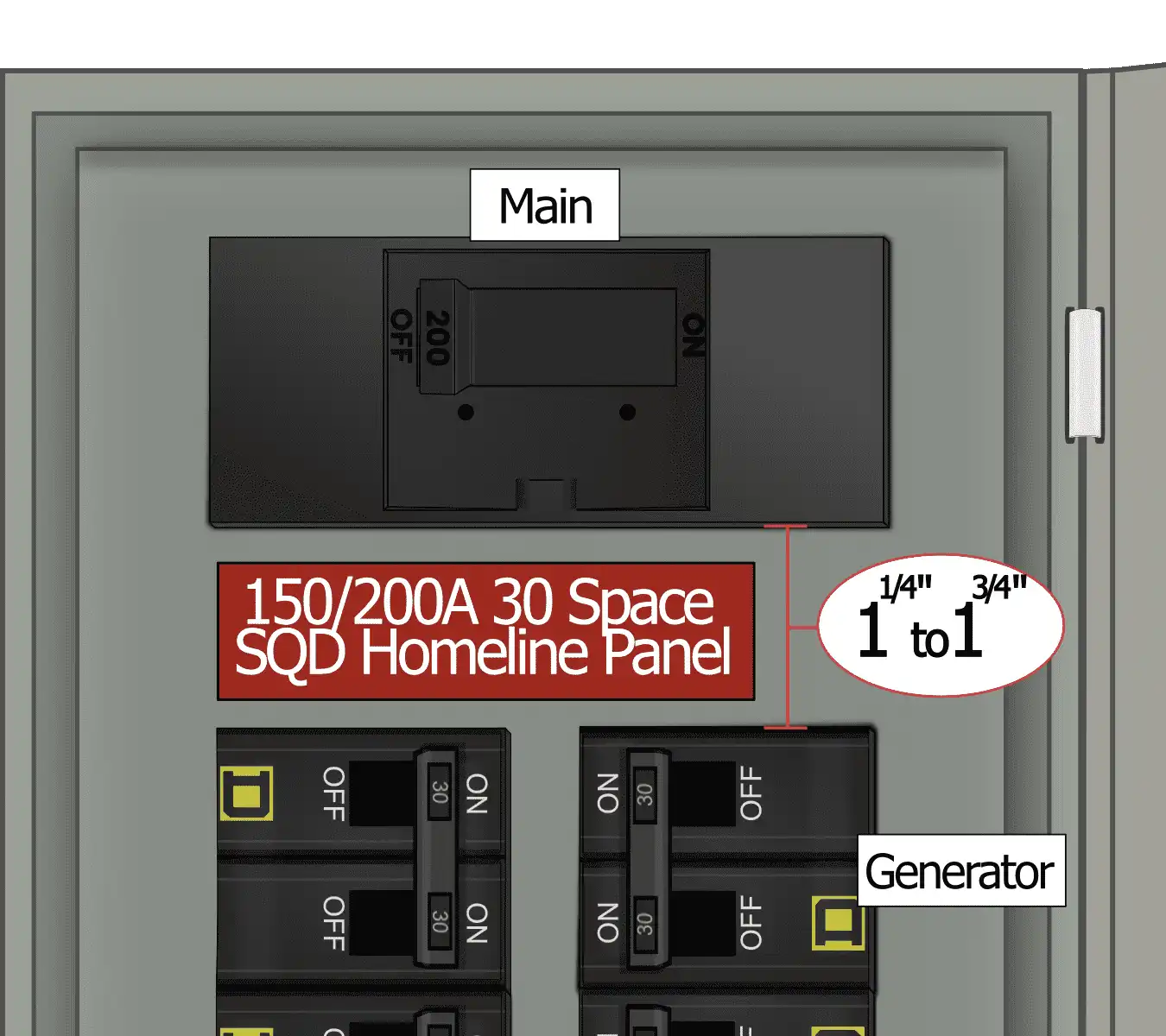

  • Gap between main breaker and columns below: 1 1/4 - 1 1/2"
  • 100-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction
  • Main breaker is centered over both breaker columns

Requirements:

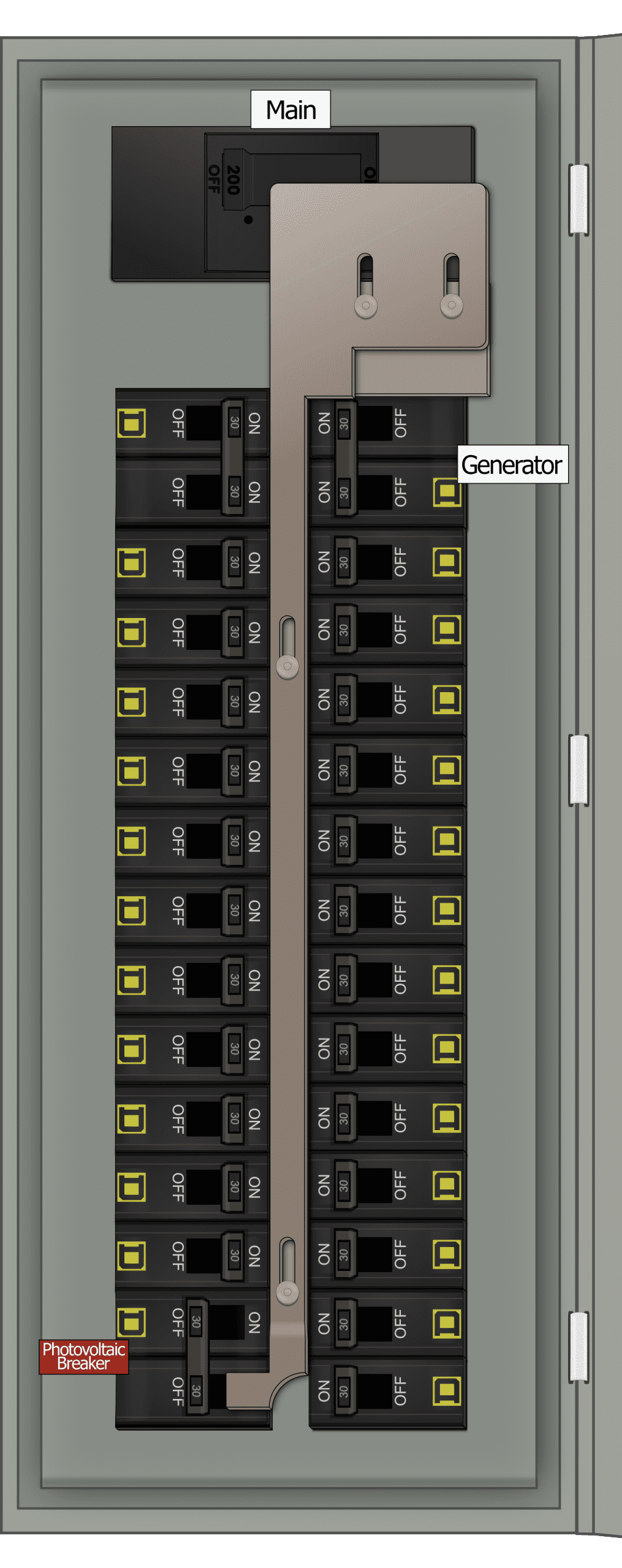

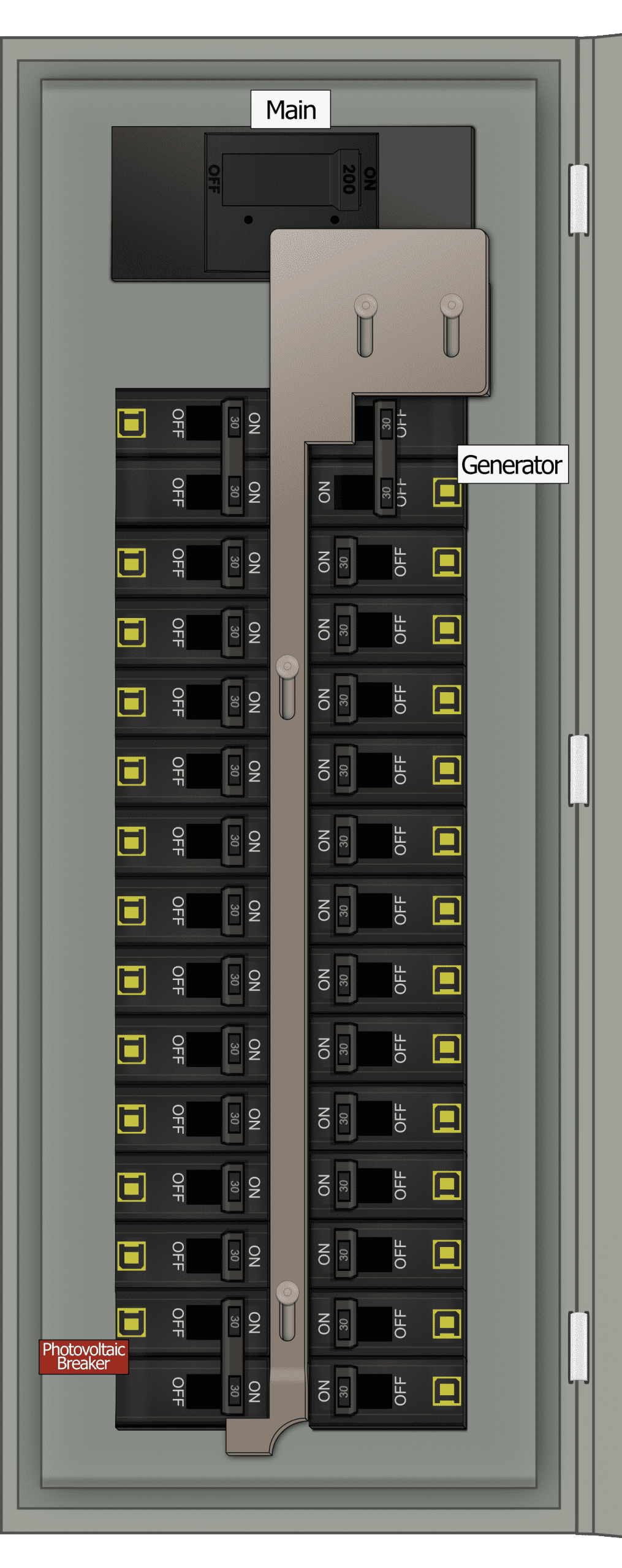

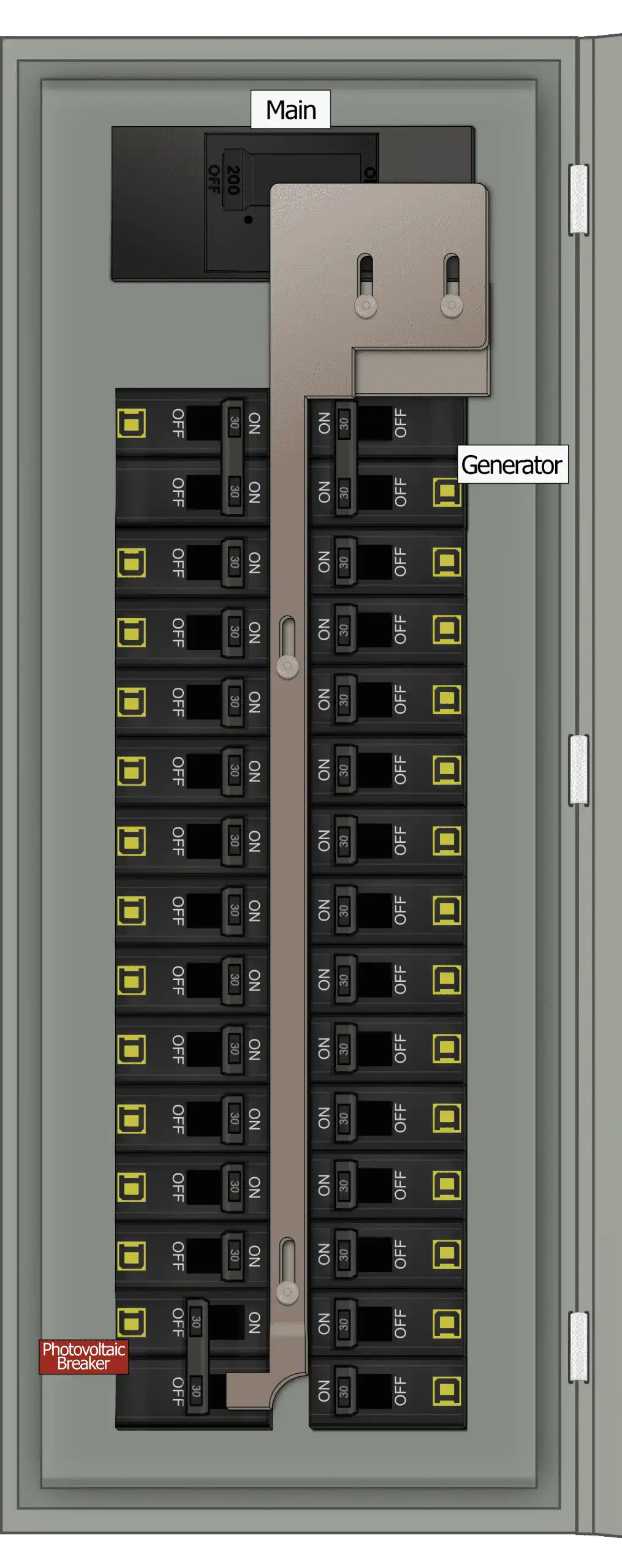

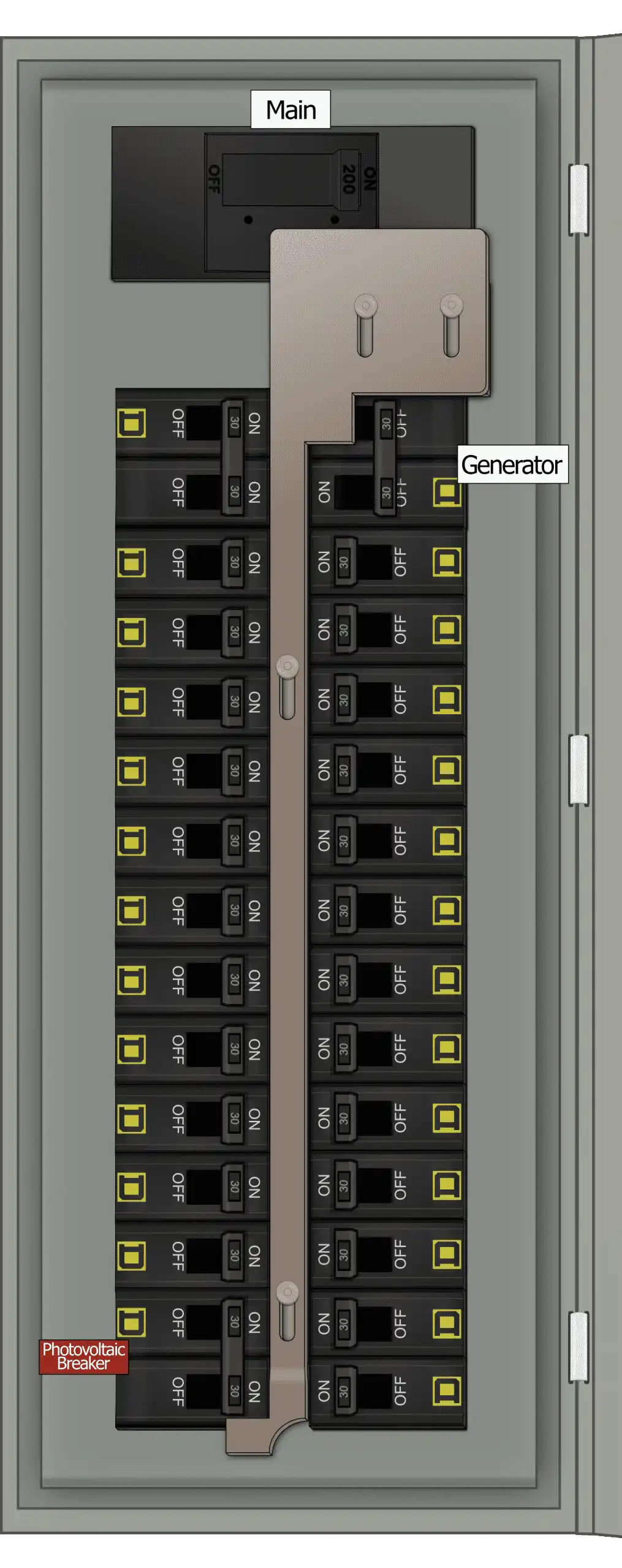

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Install a solar breaker in the bottom left corner of the branch circuit columns
  • Compatible with 30 space 60 circuit panels. 15 1" spaces in the left column & 15 1" spaces in the right
  • Page four of the installation instructions includes a list of contents included in Kit K-5013

Modified versions of this Interlock Kit exist, see: KS-5012, KS-5013 (solar modified Interlock Kit) call for more details about modified kits: (804)726-2448

Additional information

Weight 2 lbs
