Interlock Kit K-9510
$149.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

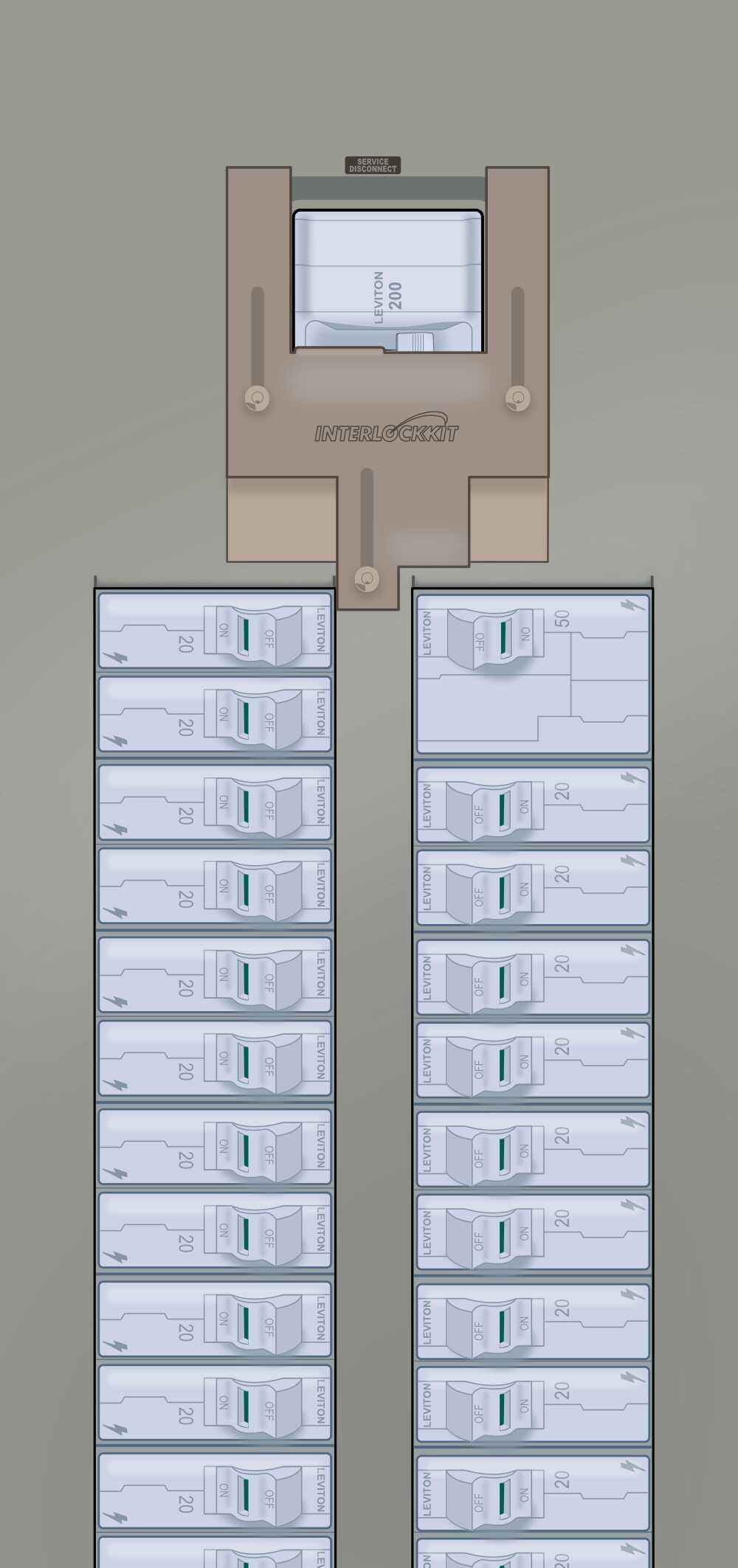

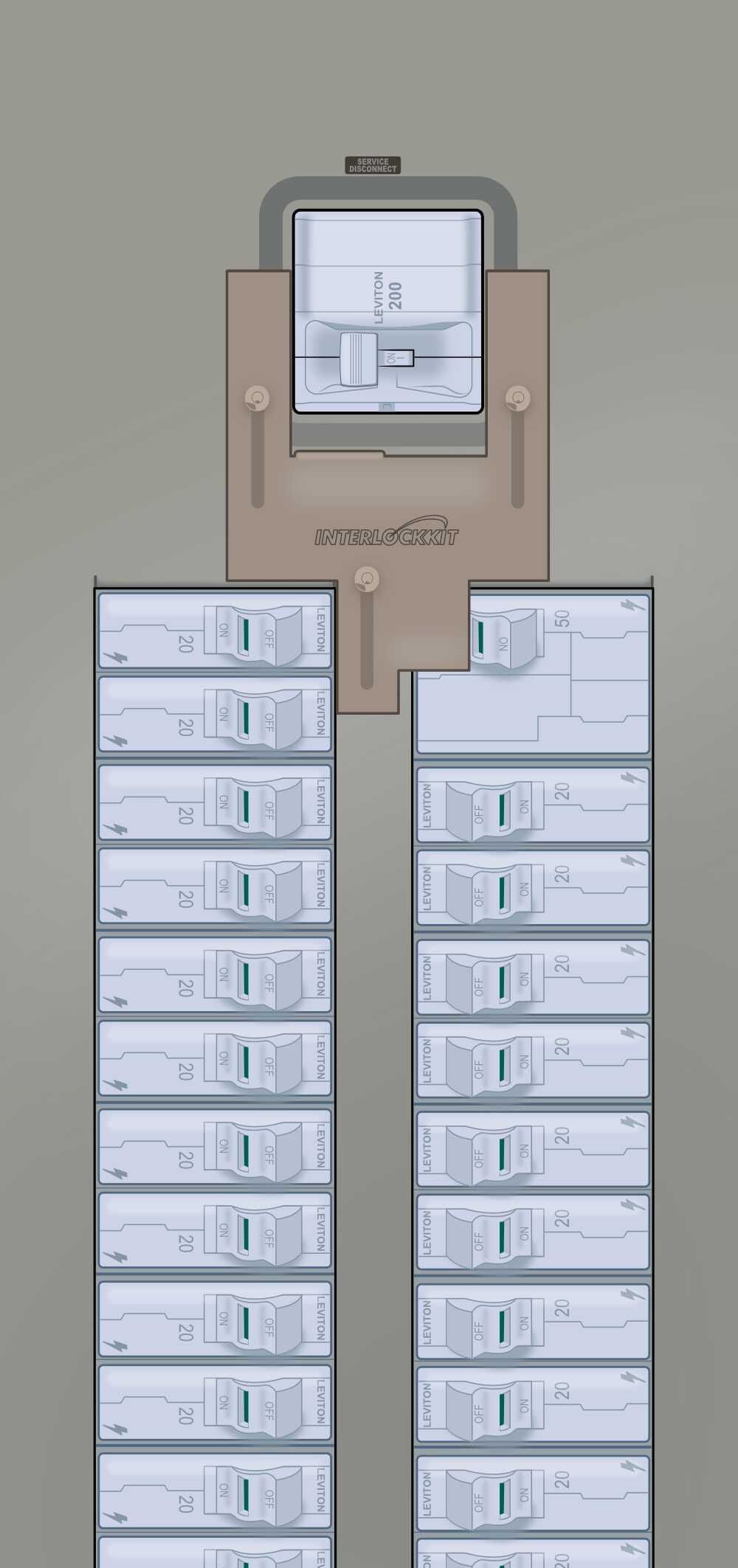

This kit performs like a manual transfer switch Leviton panels with the following features:

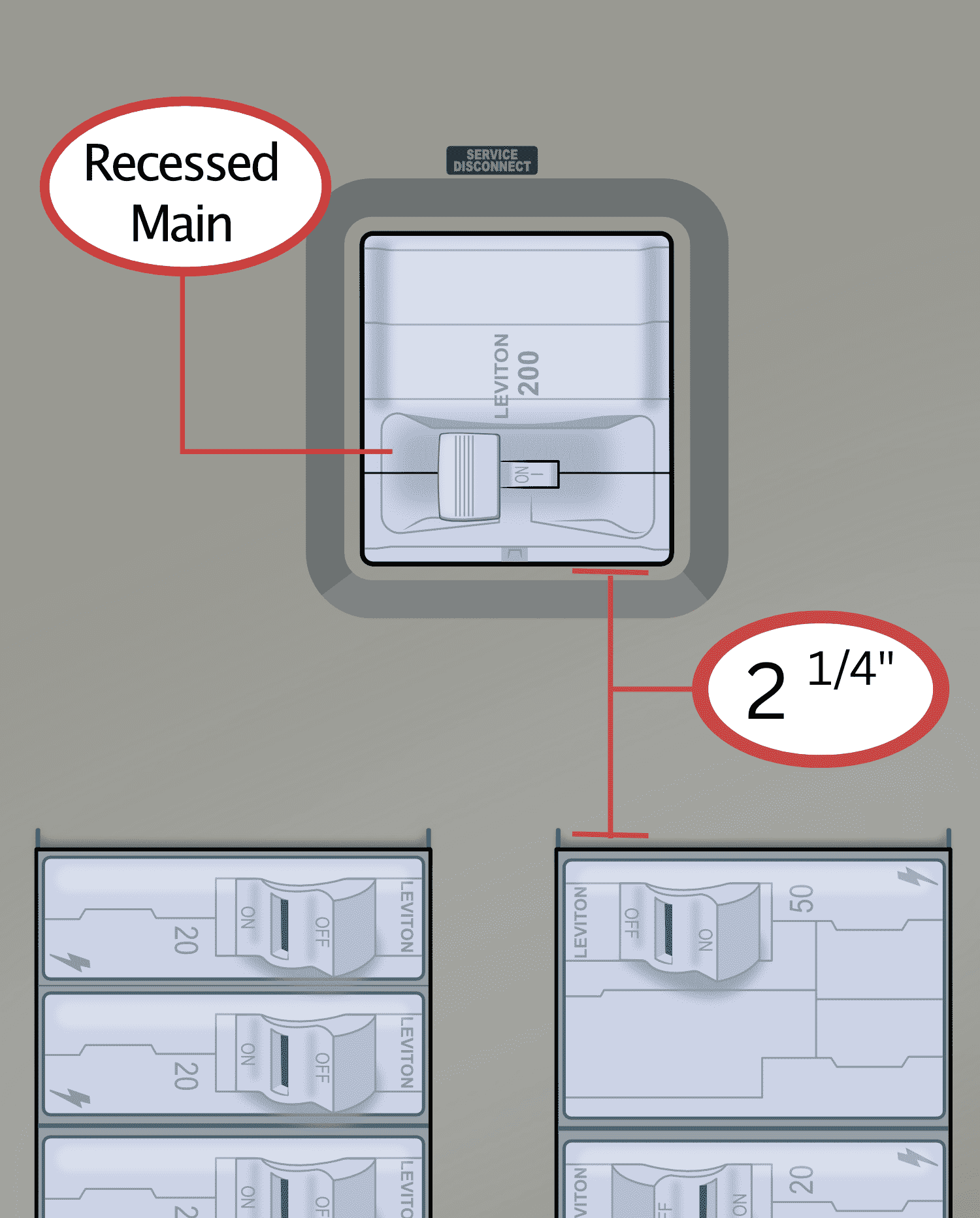

- Recessed Main
- Gap between main breaker and breaker column below, is: 2 1/4"
- 150-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
Requirements:
- Install a two pole generator breaker at the top of the right breaker column: spaces 2 & 4
- Page four of the installation instructions includes a list of contents included in Kit K-9510
Additional information
| Catalog #: | LR422-BDD, LR222-LDD, LR422-LDD, LS815-BTD*, LS820-BTD* , LS815-BHD, LS820-BHD, LS815-BLD*, LS820-BLD*, LS815-B5D*, LS820-B5D*, LS815-BRD, LS820-BRD, LG122-LED, LJ310-BED, LJ312-BED, LJ315-BED, LJ320-BED, LJ420-BED, LJ422-BED, LG110-BED, LG112-BED, LG120-BED, LG310-BED, LG312-BED, LG320-BED, LG420-BED, LG422-BED, LP215-BPD LP310-BPD, LP220-BPD, LP210-BPD, LP212-BPD, LP312-BPD, LP315-BPD, LP320-BPD, LP415-BPD, LP420-BPD, LP422-BPD, LR415-BDD, LR420-BDD, LR320-BDD, LR315-BDDLP620-BPD, LP622-BPD, LP222-LPD, LP322-LPD, LP422-LPD, LP622-LPD, LR210-BDD, LR212-BDD, LR215-BDD, LR220-BDD, LR312-BDD |
|---|
