Interlock Kit K-5010


1415 in stock


Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

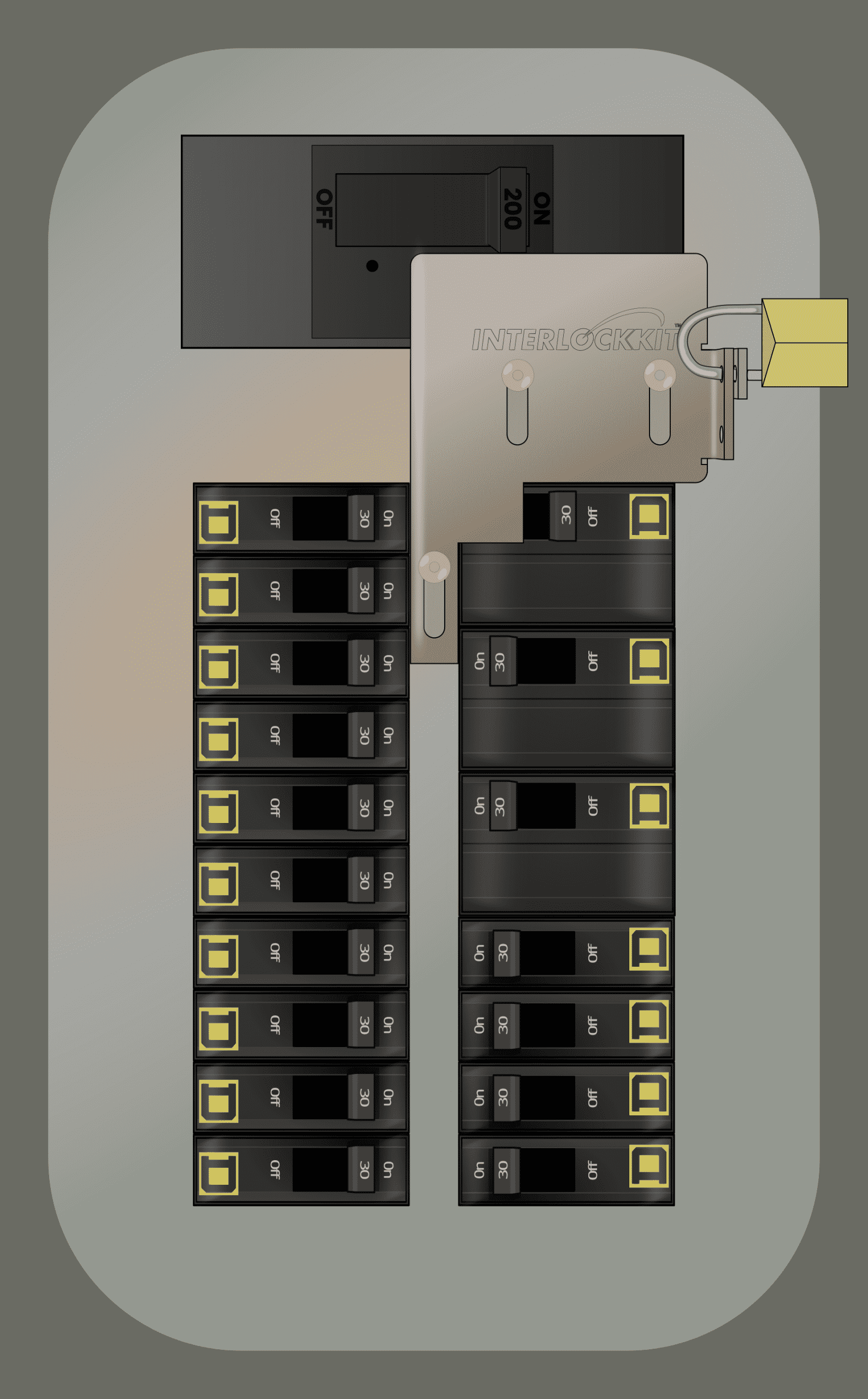

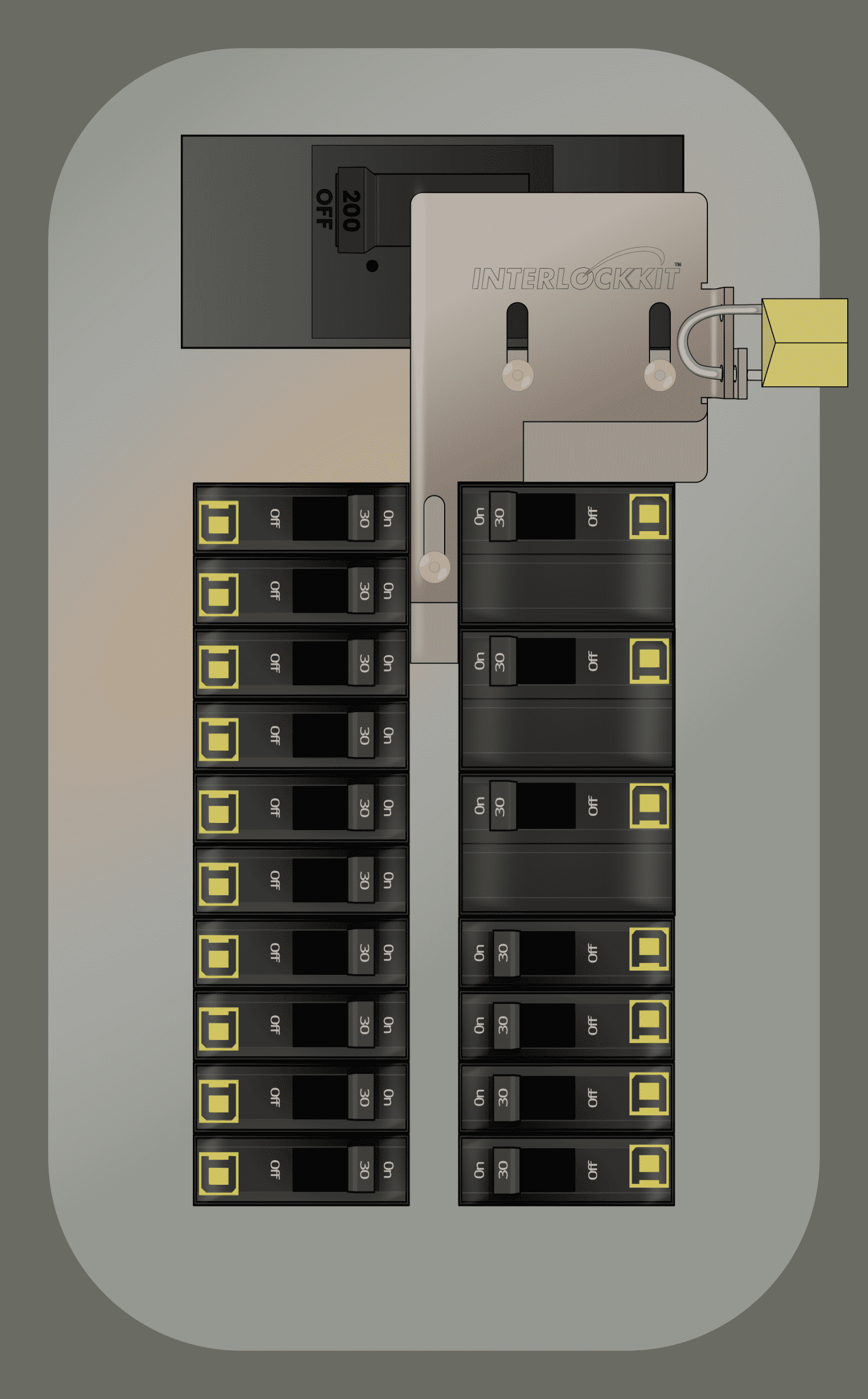

This Interlock Kit mounts to Square D electrical panels with the following features:

  • Space between breaker columns: 1/2"

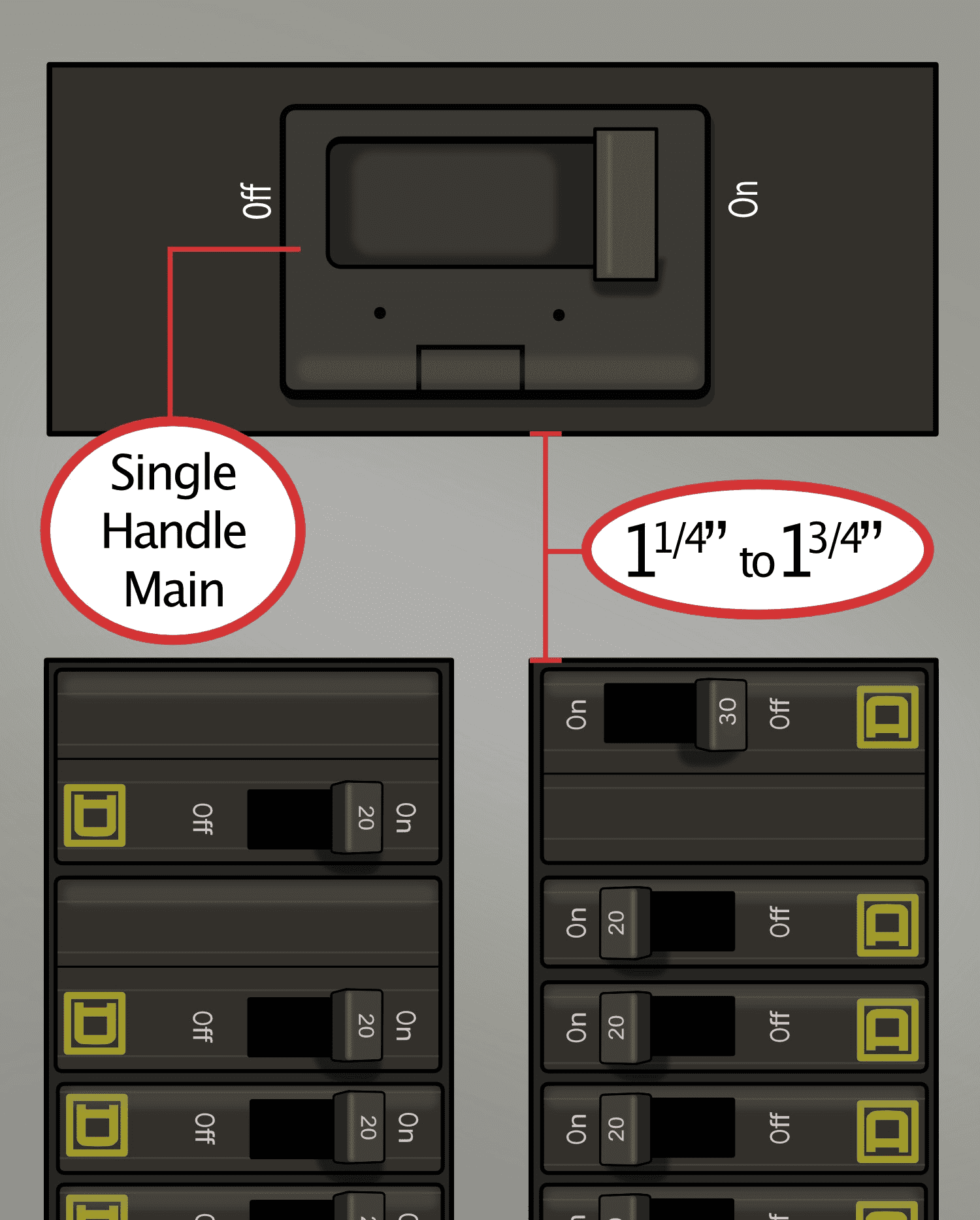

  • Gap between main breaker and columns below: 1 1/4 - 1 1/2"
  • 100-200 amp main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction
  • Main breaker is centered over both breaker columns
  • Compatible with: QO & HOMELINE type BREAKERS

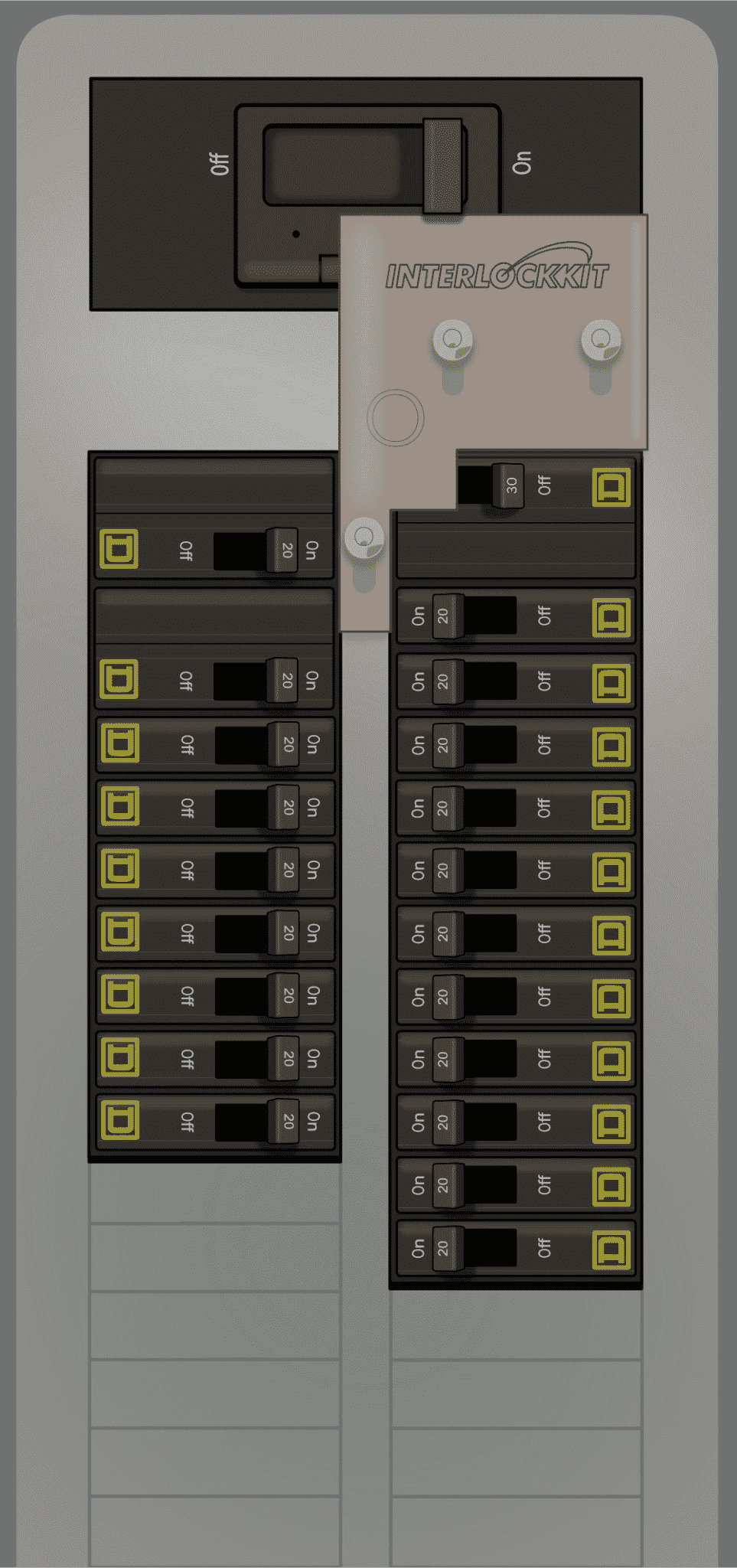

  • Install a generator breaker at the top of the right column: spaces 2 & 4
  • Page four of the installation instructions includes a list of contents included in Kit K-5010

Modified versions of this Interlock Kit exist, see: K-5011 (not featured on site) , KS-5010 (solar modified Interlock Kit) call for more details about modified kits for K-5010: (804)726-2448

Kit Installation Instructions

Additional information

Weight 1 lbs
Catalog #:

QO142M200PC,QO130M200PRB, QO130L200PGC, QO142L225PGRB, QO140M200C, QO140M200RB, HOM816M150PFTRB, HOM4080M200PC, QC816F150C, RC2040M200C, HOMC42U,HOMC42UC, HOMC30UC,HOMC30U, QC816F100CH, QC816F125X, QC816F150C, QC816F150CH,QC816F200C, QC816F200CH, QOC42UF, QO30M150RB, QOC40OU ,QOC30UF ,SC816F200F, SC3042M200PS, HOMC42UC, QOC30OU, QOC20OU — other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
