Interlock Kit K-3310

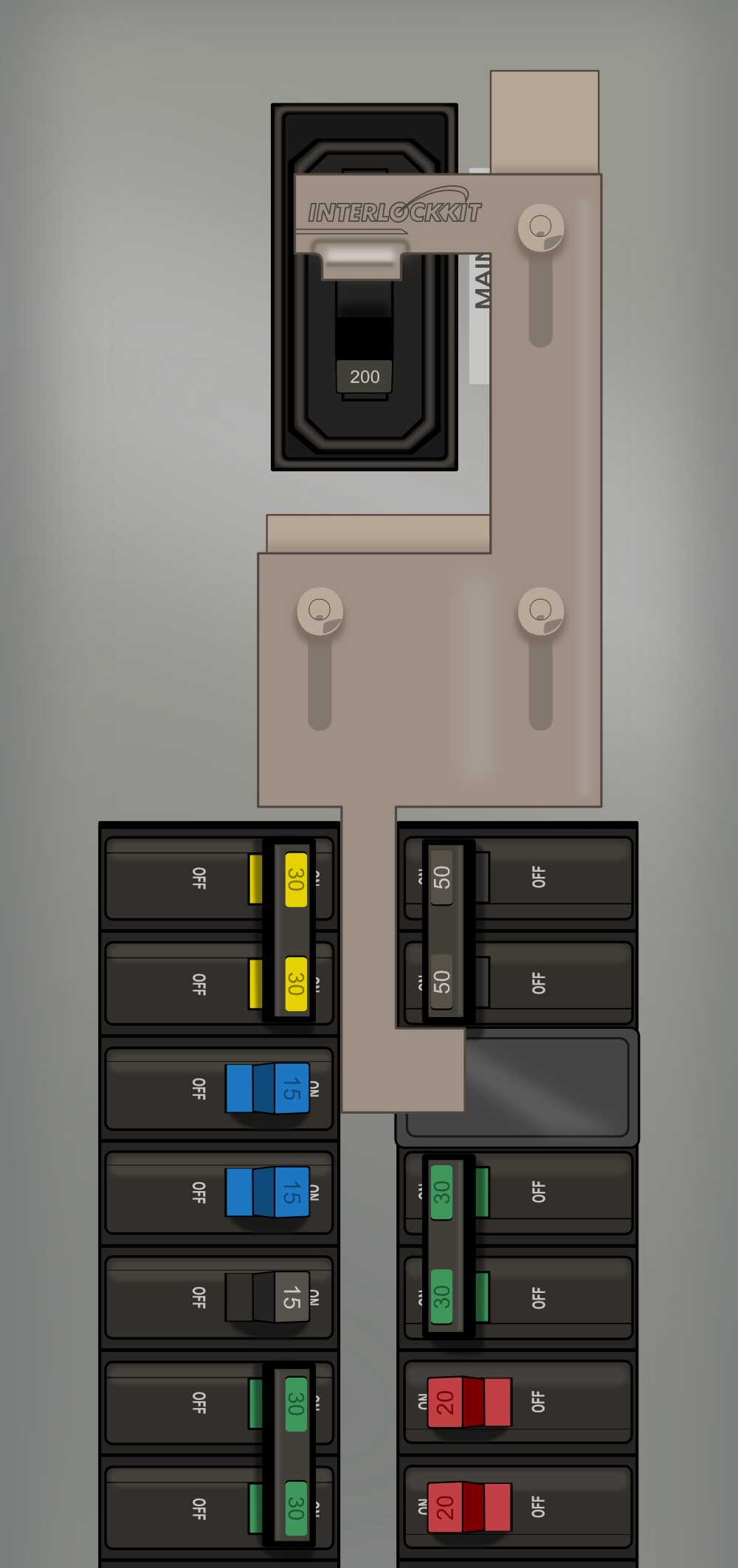

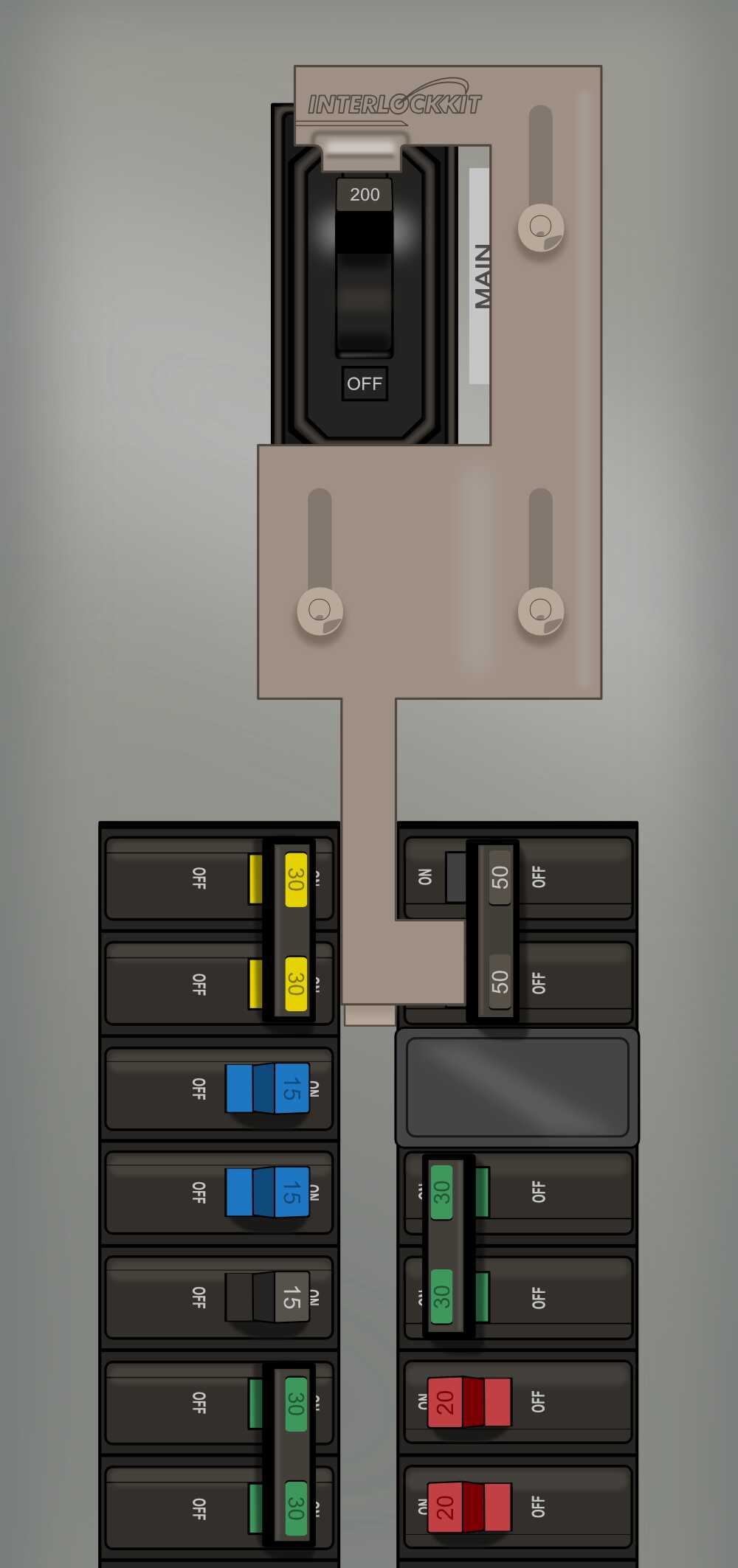

This Interlock Kit performs like a manual transfer switch for Bryant electrical panels with the following features:

• Space between breaker columns: 1/2″

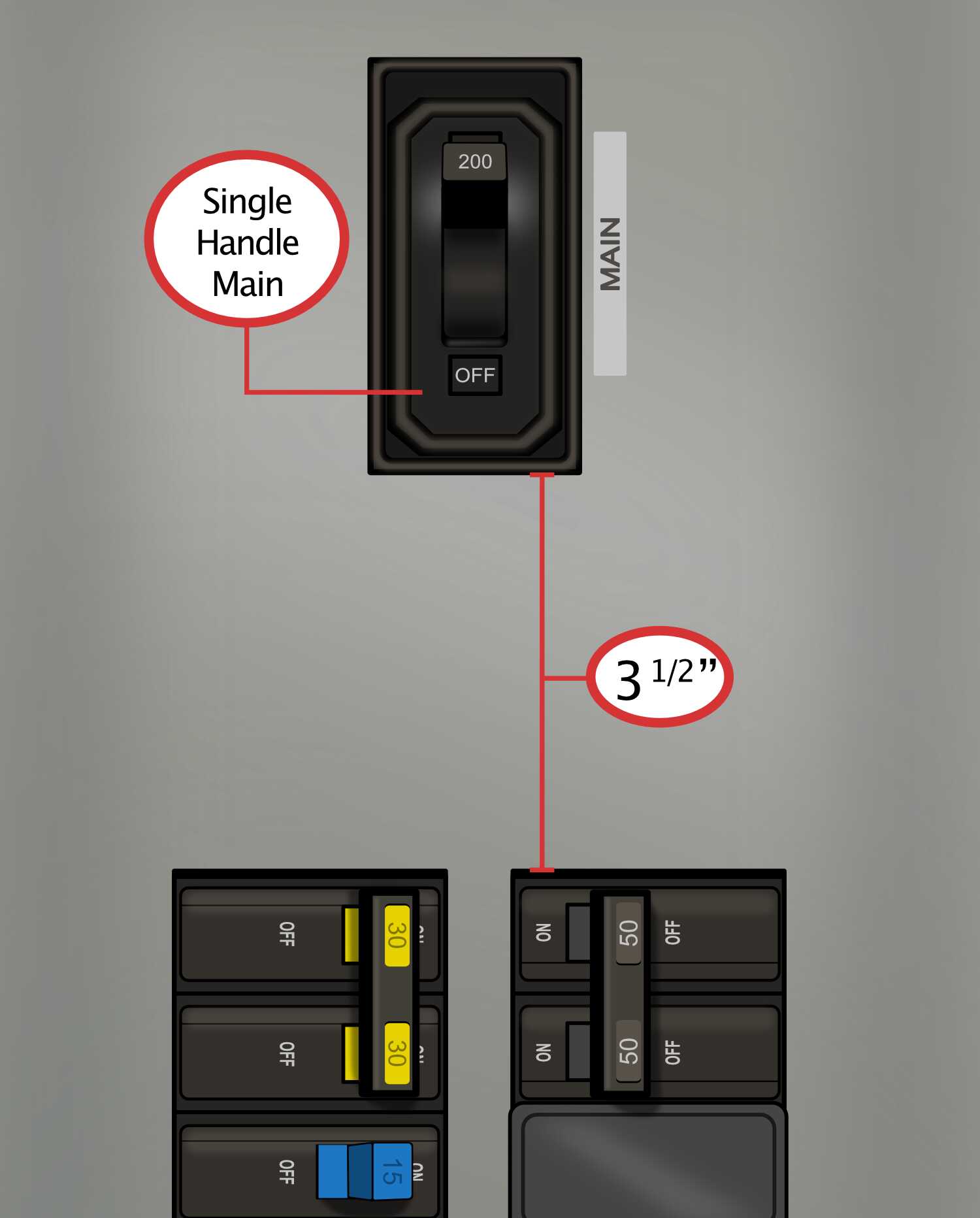

• Gap between main breaker and columns below, is: 3 1/2"
• 200 amp main breaker
• Main breaker toggle action: vertical (up-down) throw direction ON & OFF

Requirements:

• Install a generator breaker in spaces: 2 & 4 (top two spaces in the right column)
• Filler plate in space 6
• Page four of the installation instructions include a list of contents included in K-3310

Kit Installation Instructions
