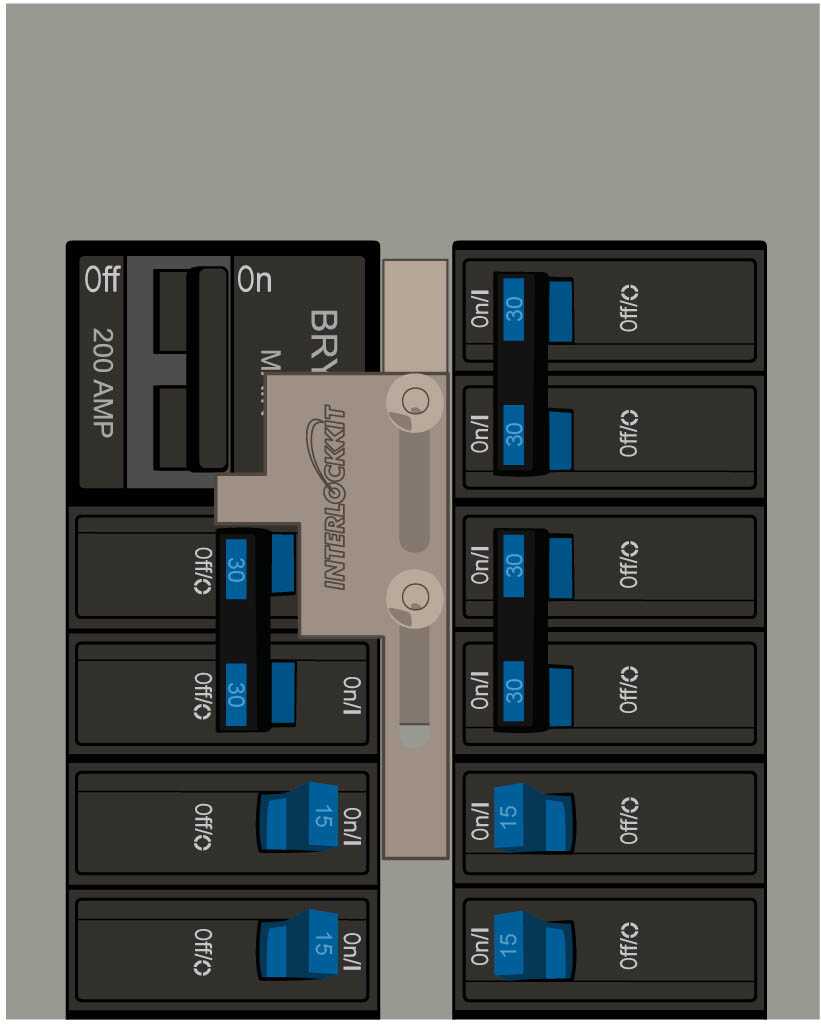

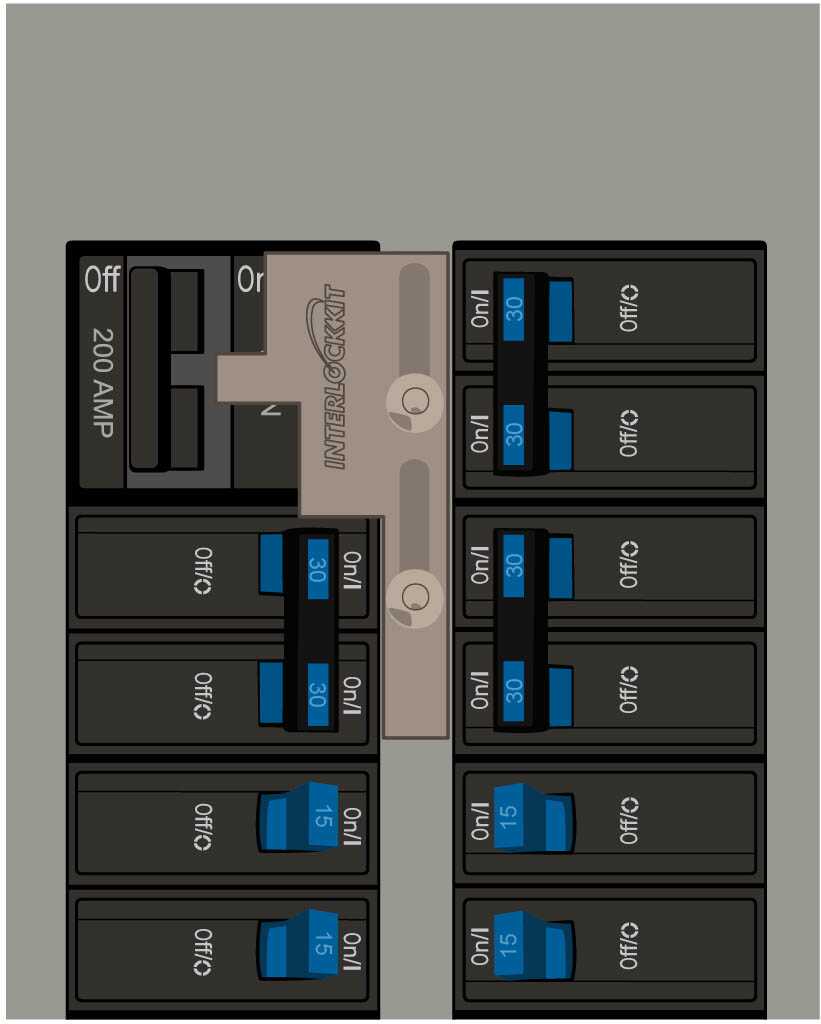

Interlock Kit K-3210R2

This Interlock Kit performs like a manual transfer switch for Bryant / Challenger / Westinghouse / & Midwest electrical panels with the following features:

• Space between breaker columns: 1/2″
• No gap
• 150-200 amp 2 pole main breaker
• Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF
• Main breaker sits directly over top of the left breaker column

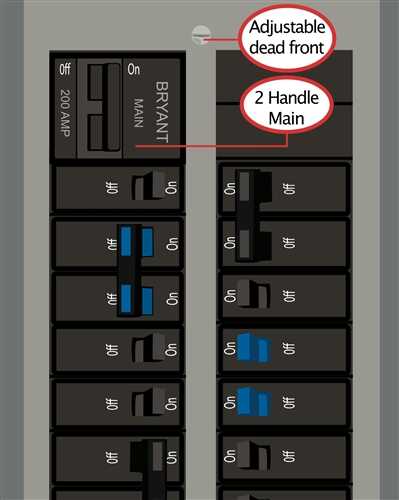

• Works with Adjustable dead front or flush mount panel types!
• Will replace the original K-3210 in the future

Requirements:

• Install a generator breaker directly below the main breaker in spaces: 5 & 7

See Interlock Kit K-3110 or K-3110 R2 if the main breaker is located on the right side of the panel

Kit Installation Instructions
