Interlock Kit K-8615 | Interlock Kit

This Kit mounts to General Electric electrical panels with the following features:

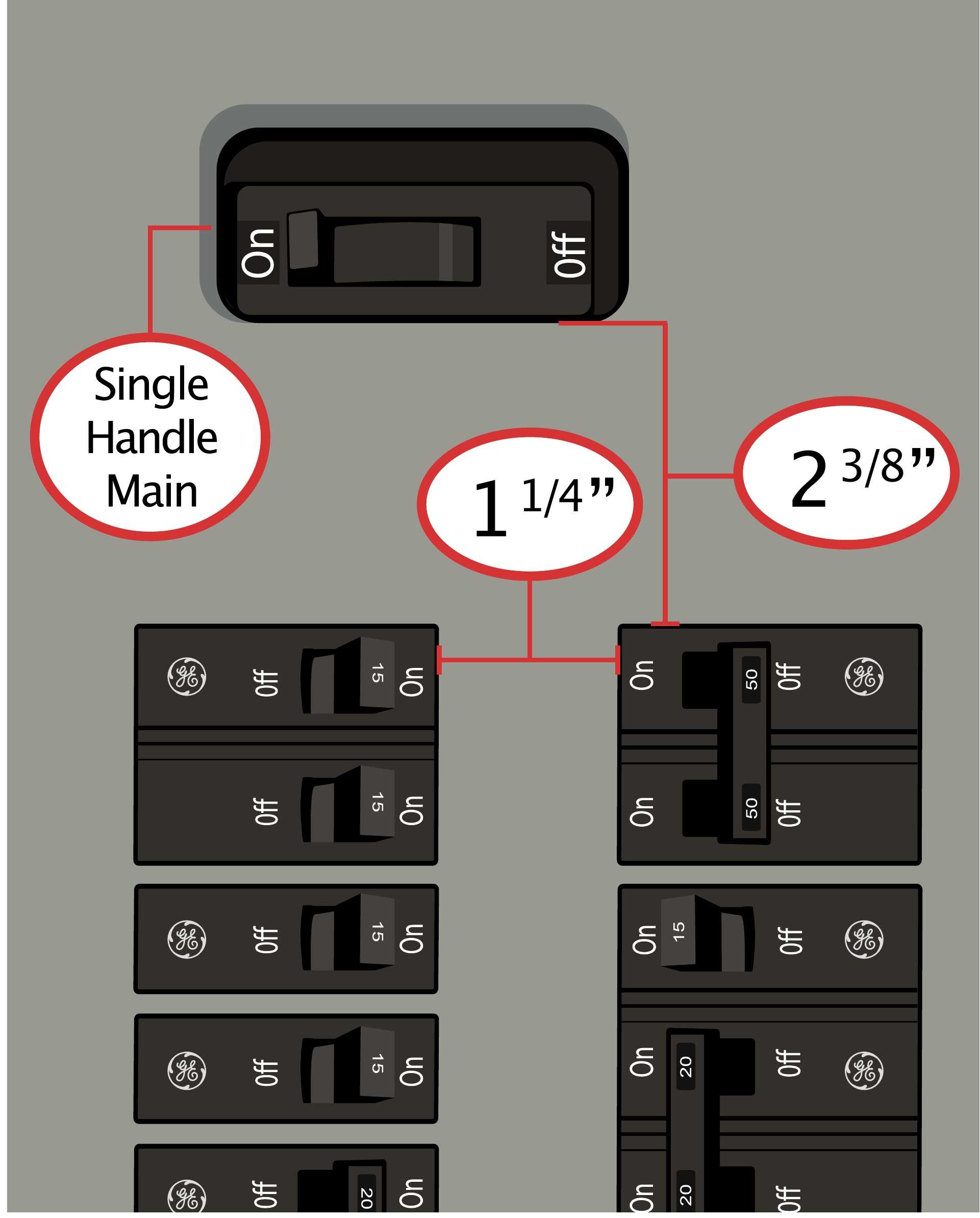

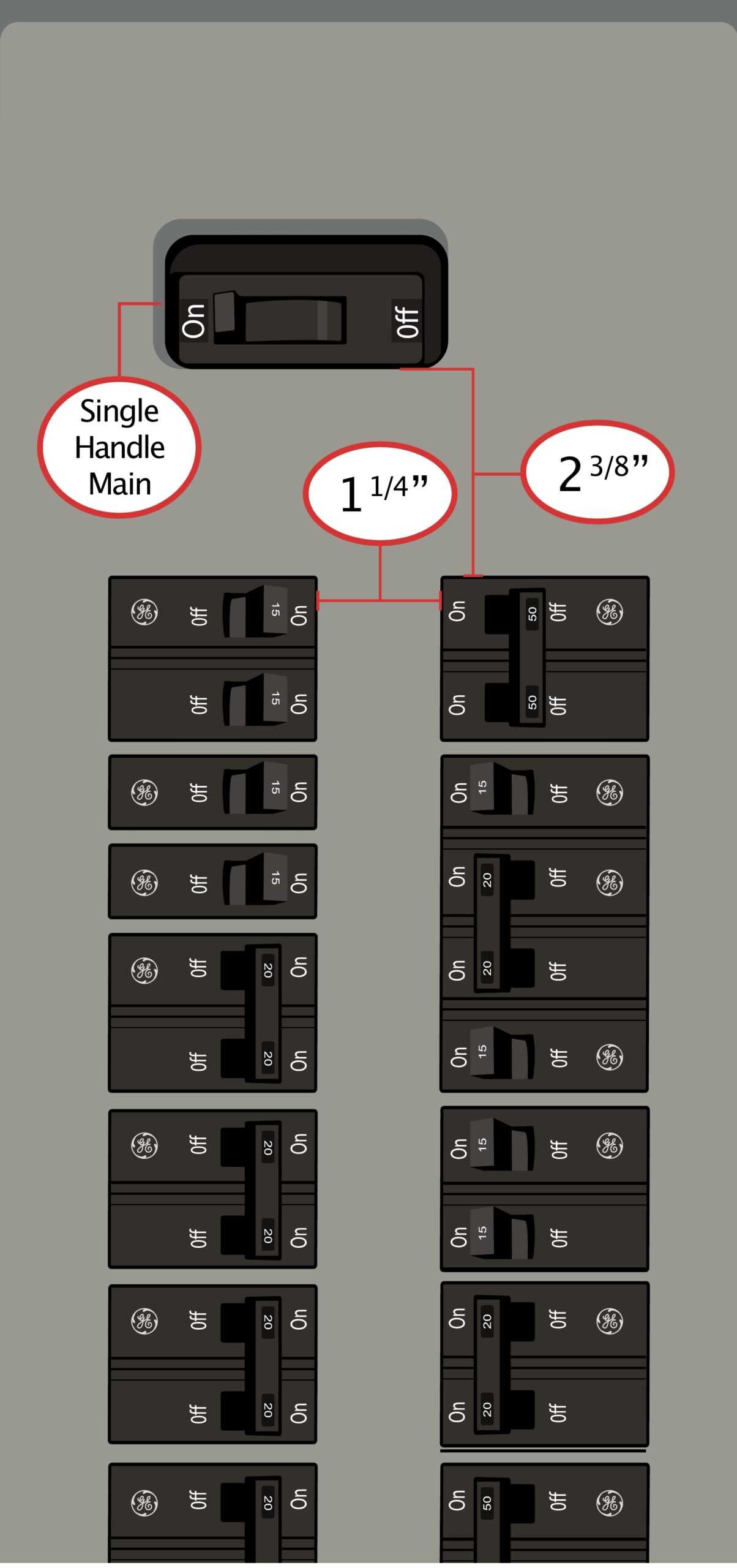

• Space between breaker columns: 1 1/4"
• Gap between the main breaker and columns below is: 2 3/8" approximately
• 150-200 amp main breaker
• Main breaker toggle action: Horizontal (left-right) throw direction ON & OFF
• Main breaker sits offset to the left of the breaker columns

Requirements

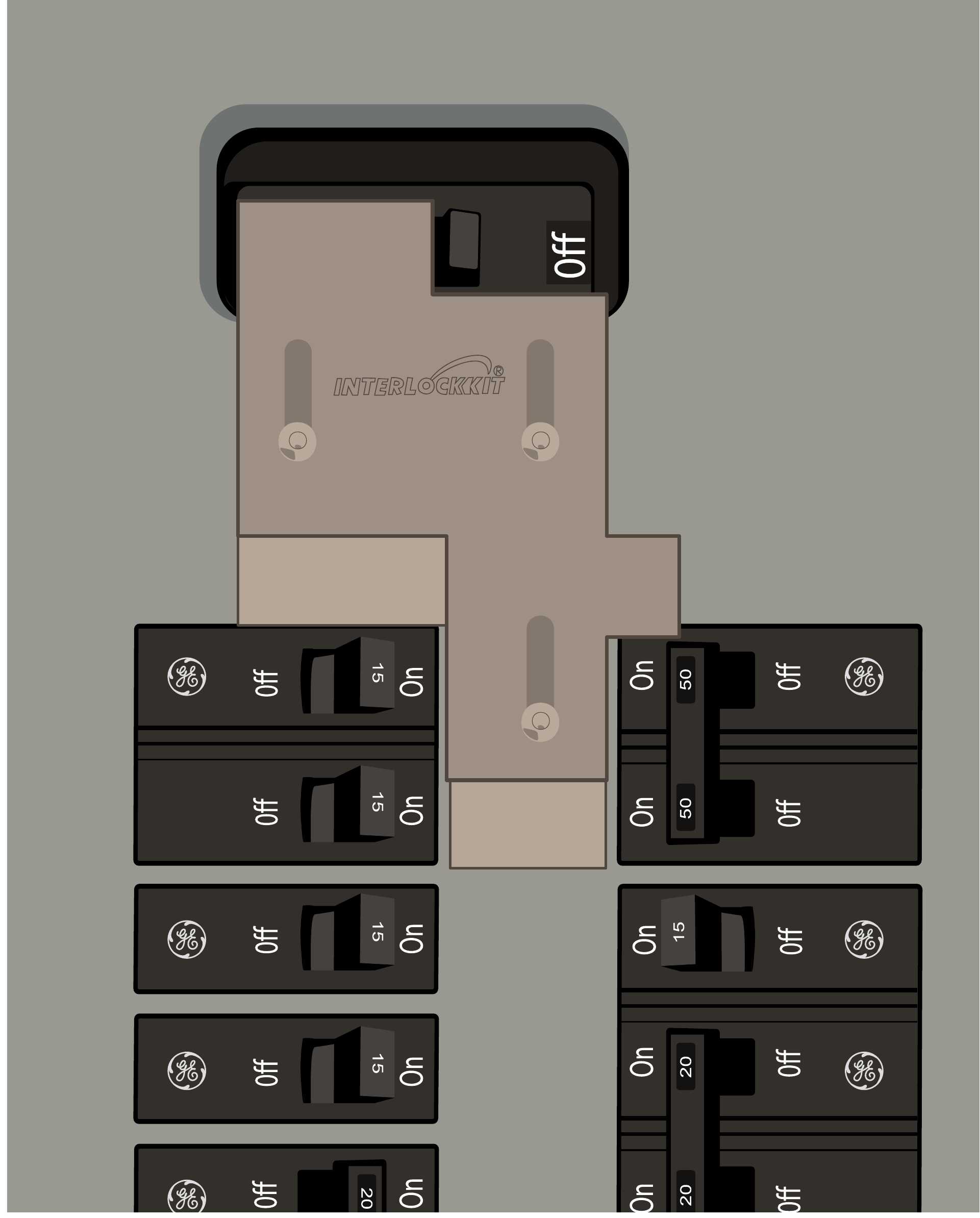

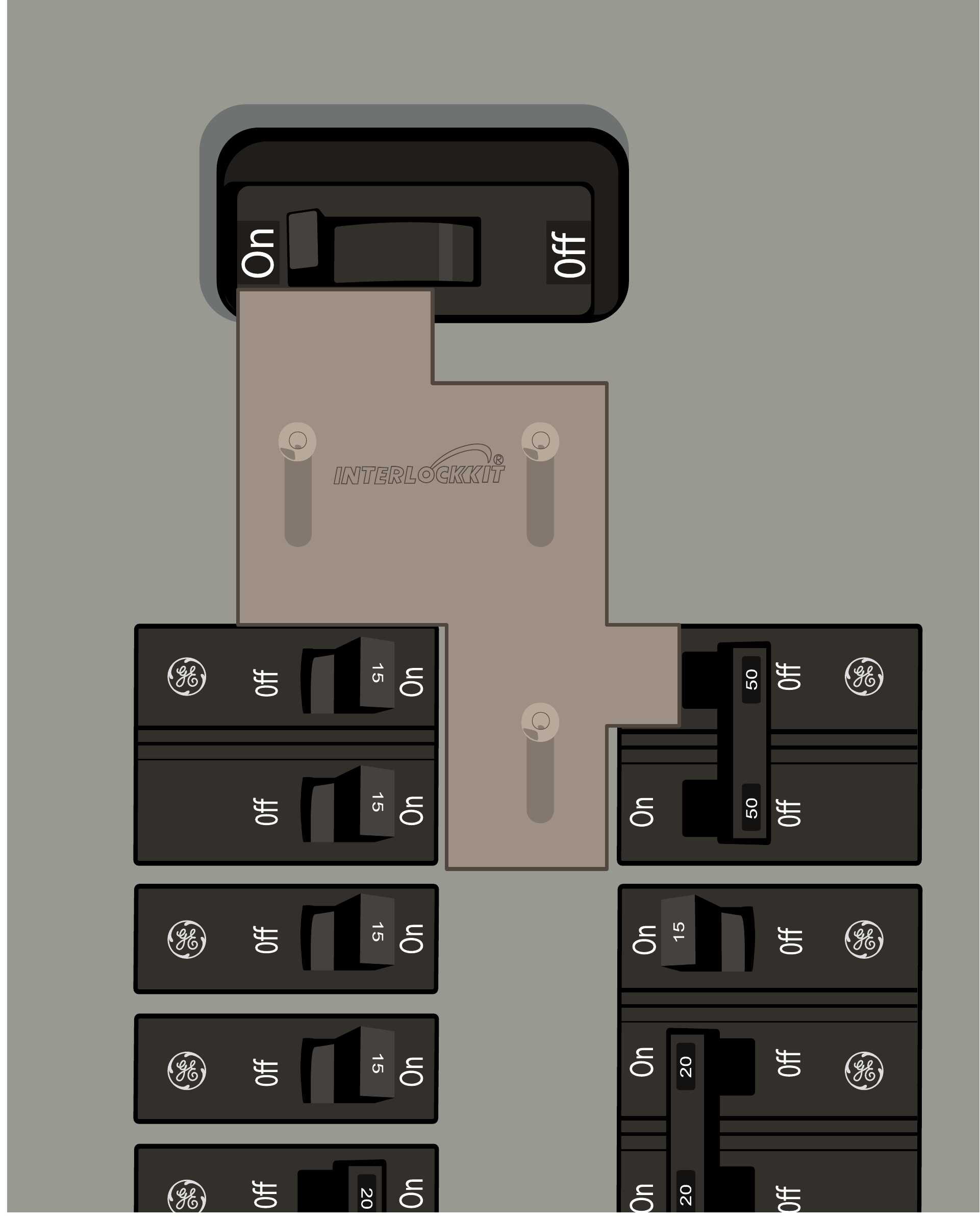

• Install a two pole generator breaker at the top of the right breaker column: spaces 2 & 4
• Page four of the installation instructions include a list of contents included in Kit K-8615

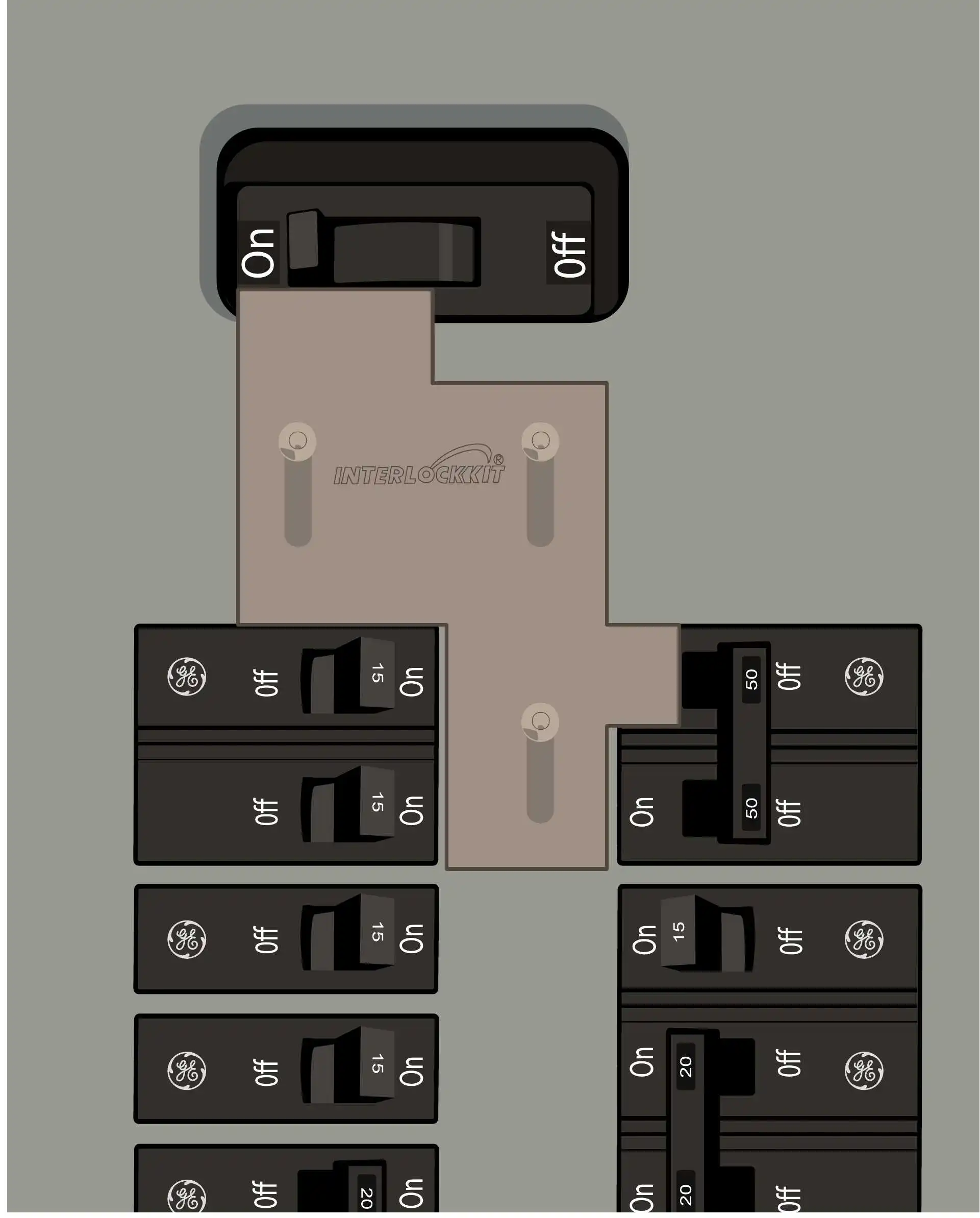

Modified versions of this Interlock Kit exist, see: K-8610 if main breaker throws ON the opposite direction
