Interlock Kit K-8011 | Interlock Kit

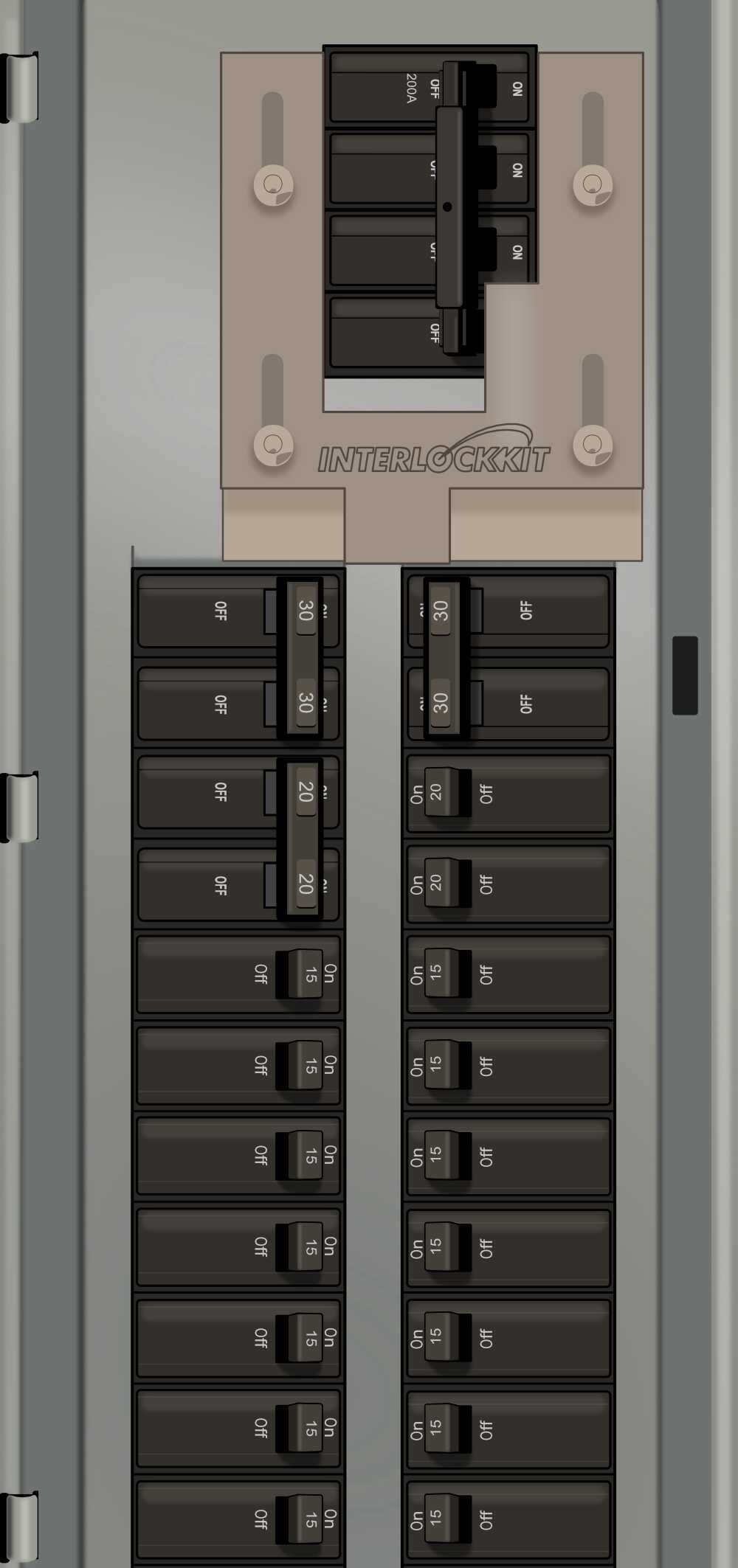

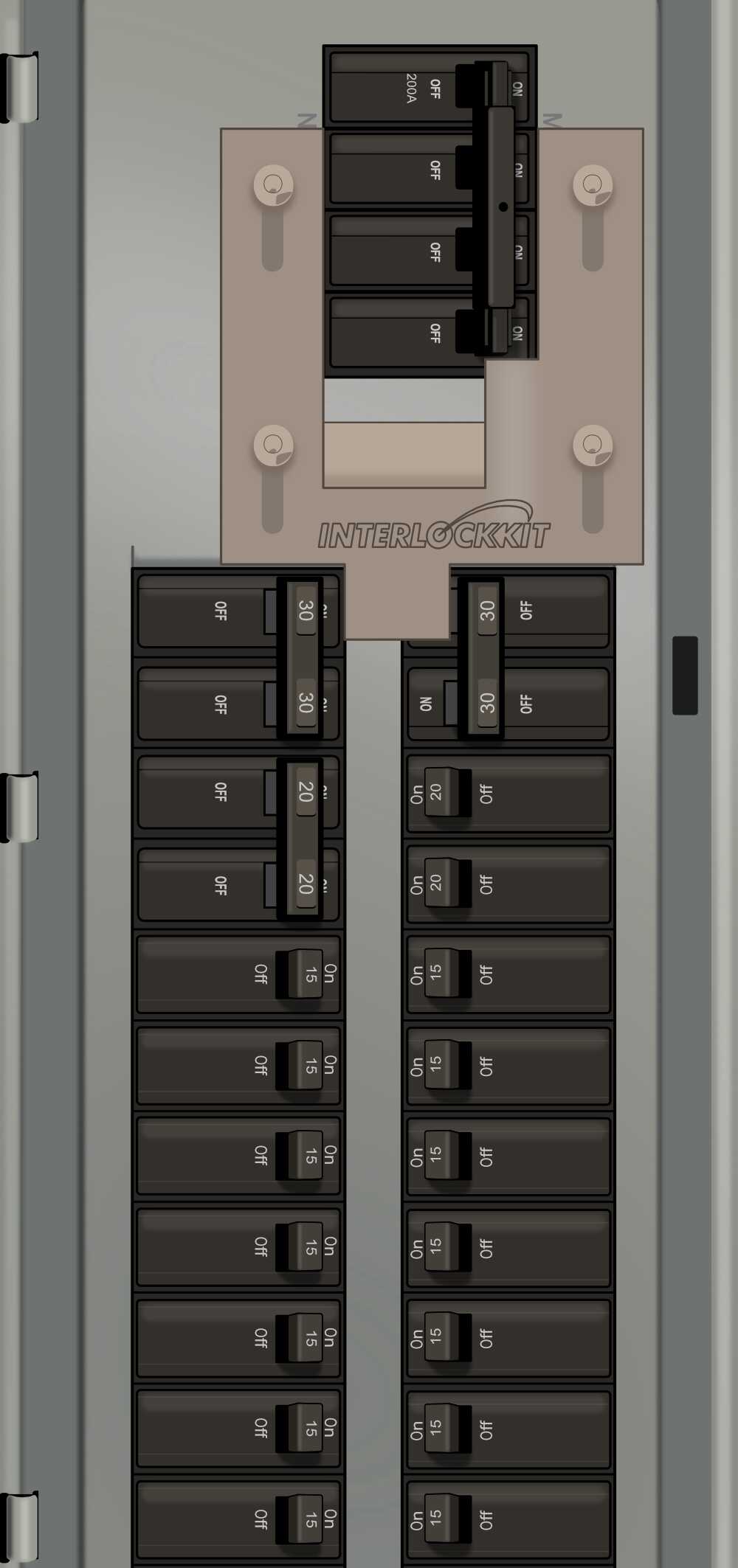

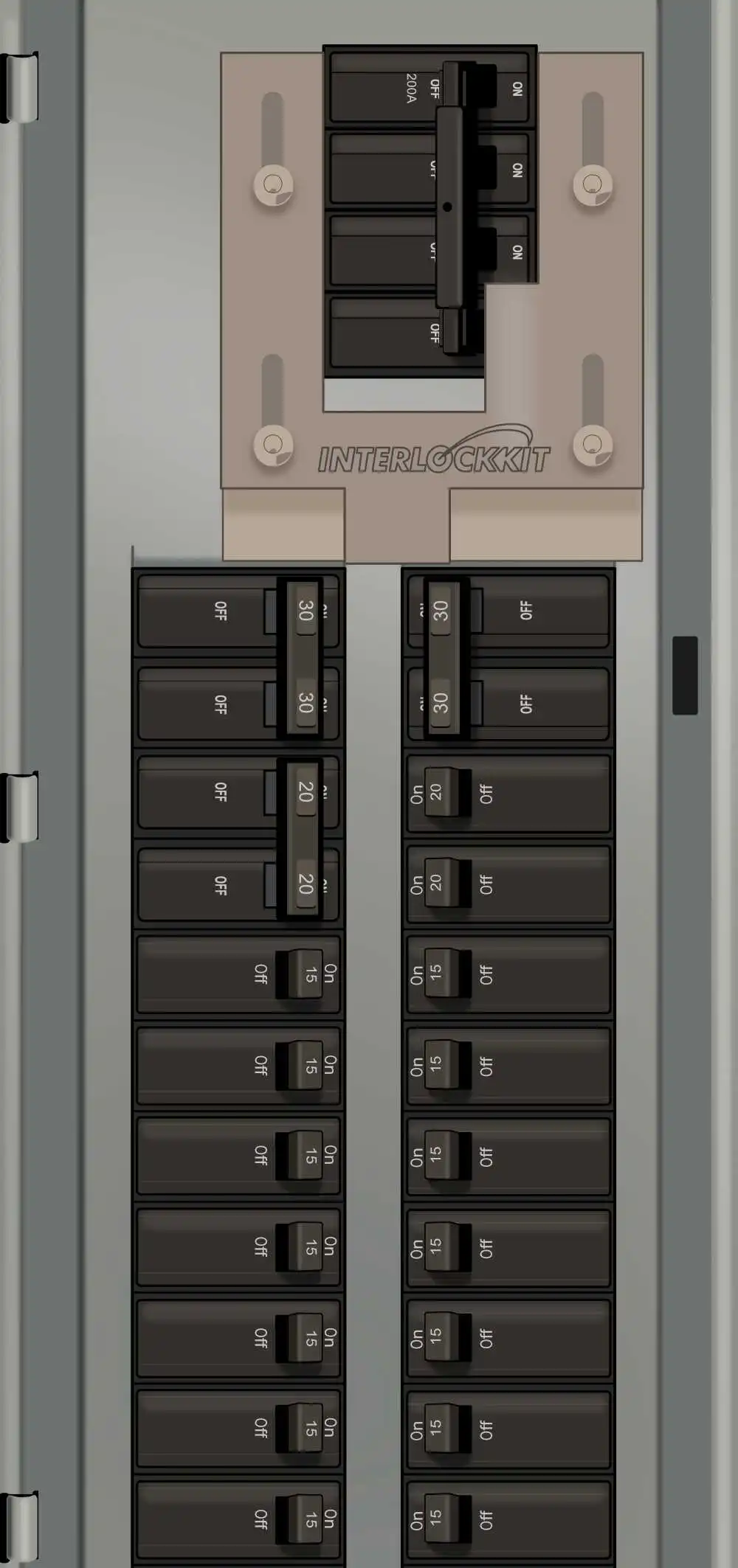

This Interlock Kit performs like a manual transfer switch for General Electric (GE) electrical panels with the following features:

• Space between breaker columns: 1/2″
• Gap between the main breaker and columns below, is: 1 1/4″ – 1 1/2″
• 100-125 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
• Main breaker is offset from the center: 5/8″ to the right

Requirements

• Install a two-pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)
• Page four of the installation instructions includes a list of contents for Kit K-8010

If your main breaker is similar to this panel but features a main breaker: 150-200 amps, see: K-8010 for more information

Kit Installation Instructions
