Cutler Hammer/EATON Kit K-9210

$149.95

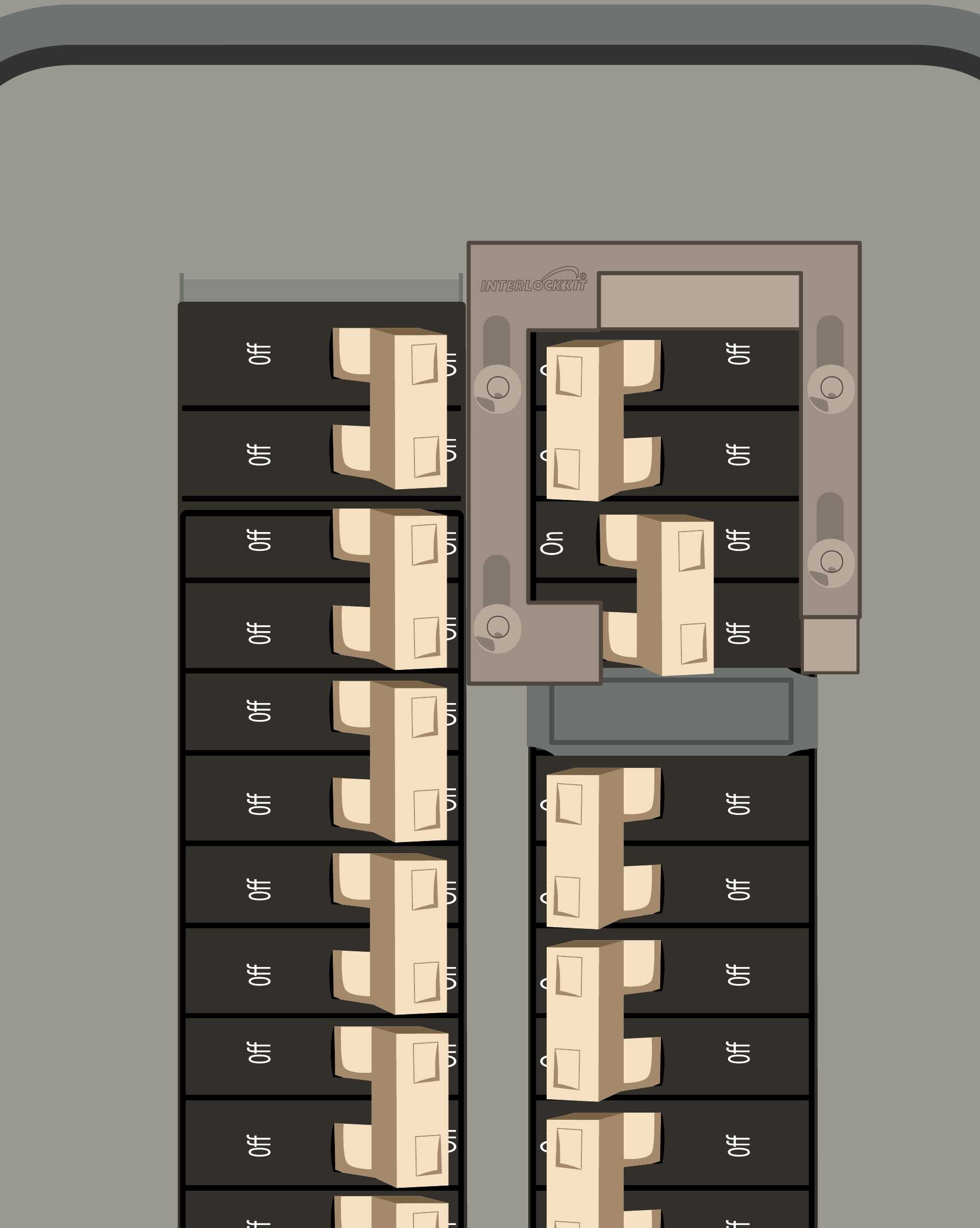

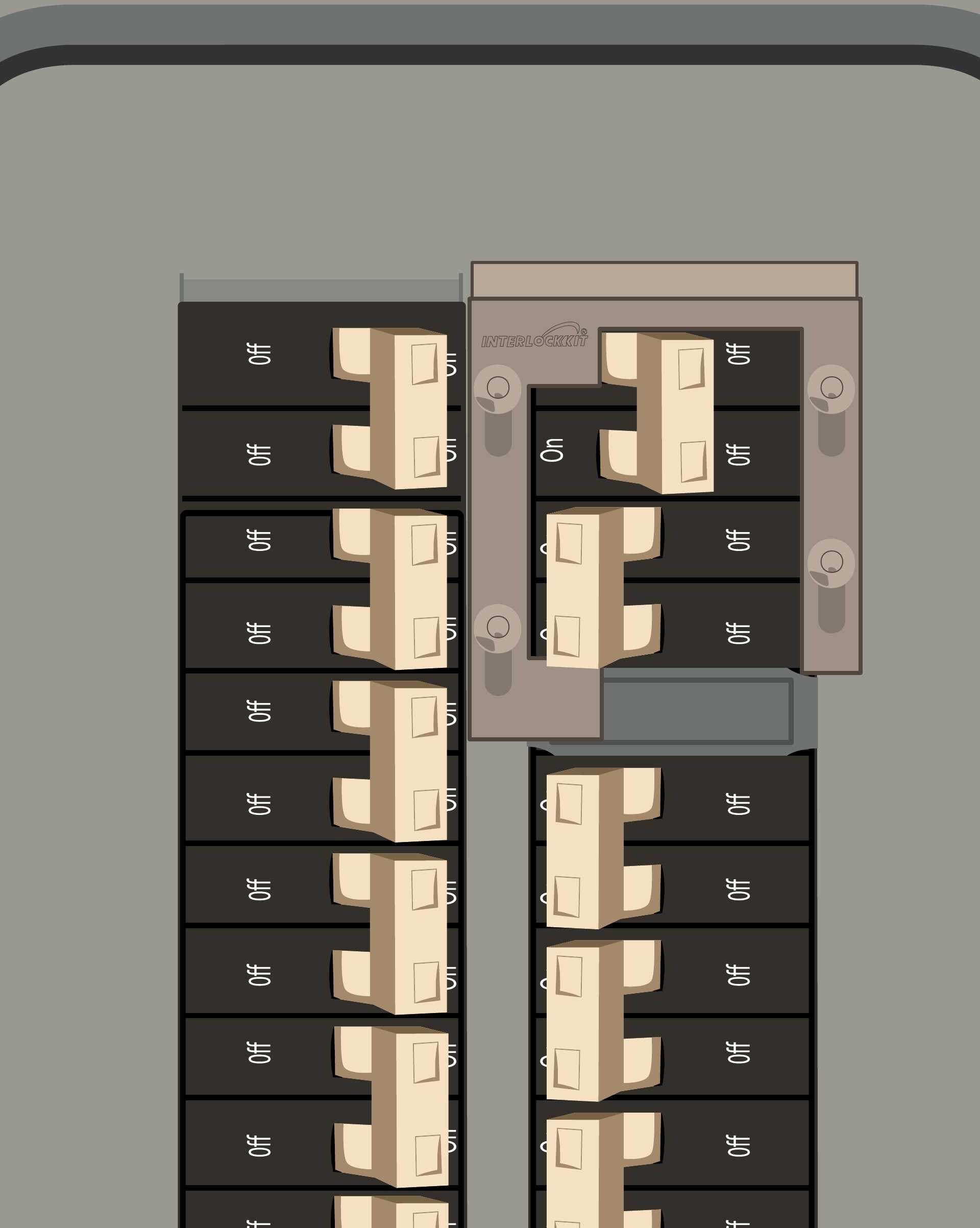

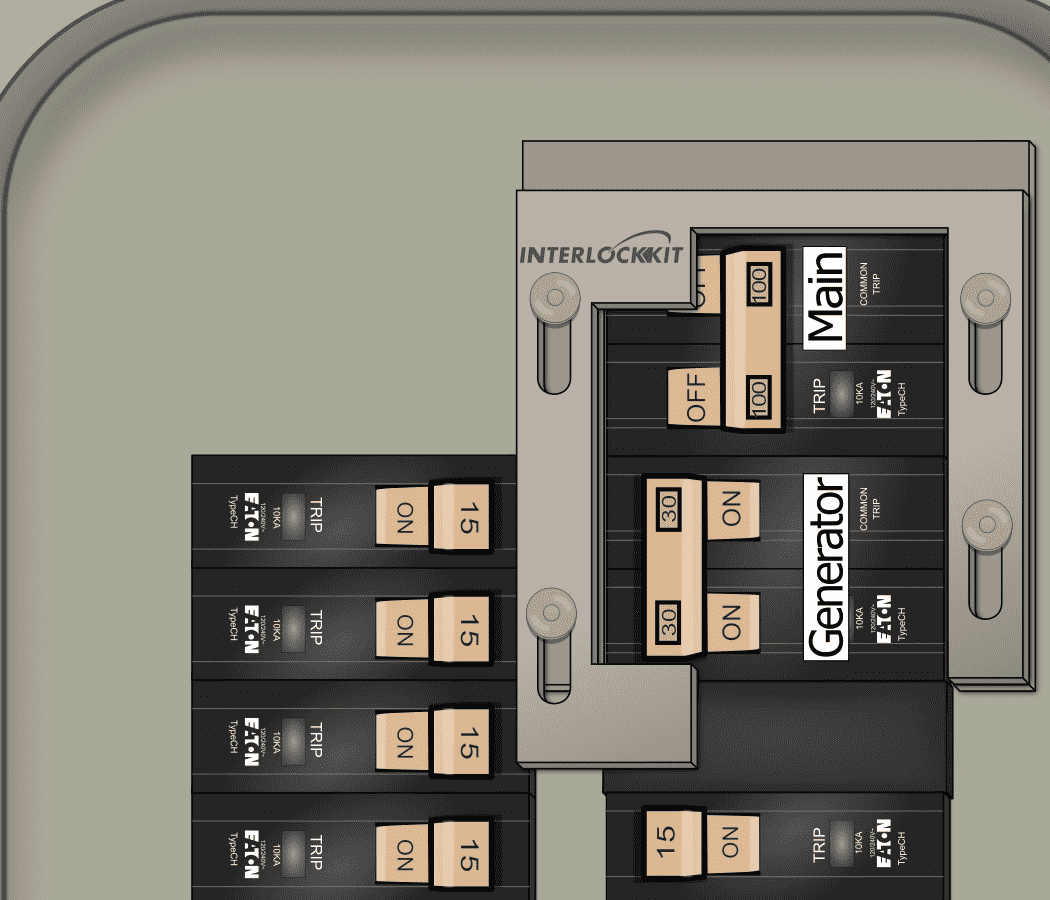

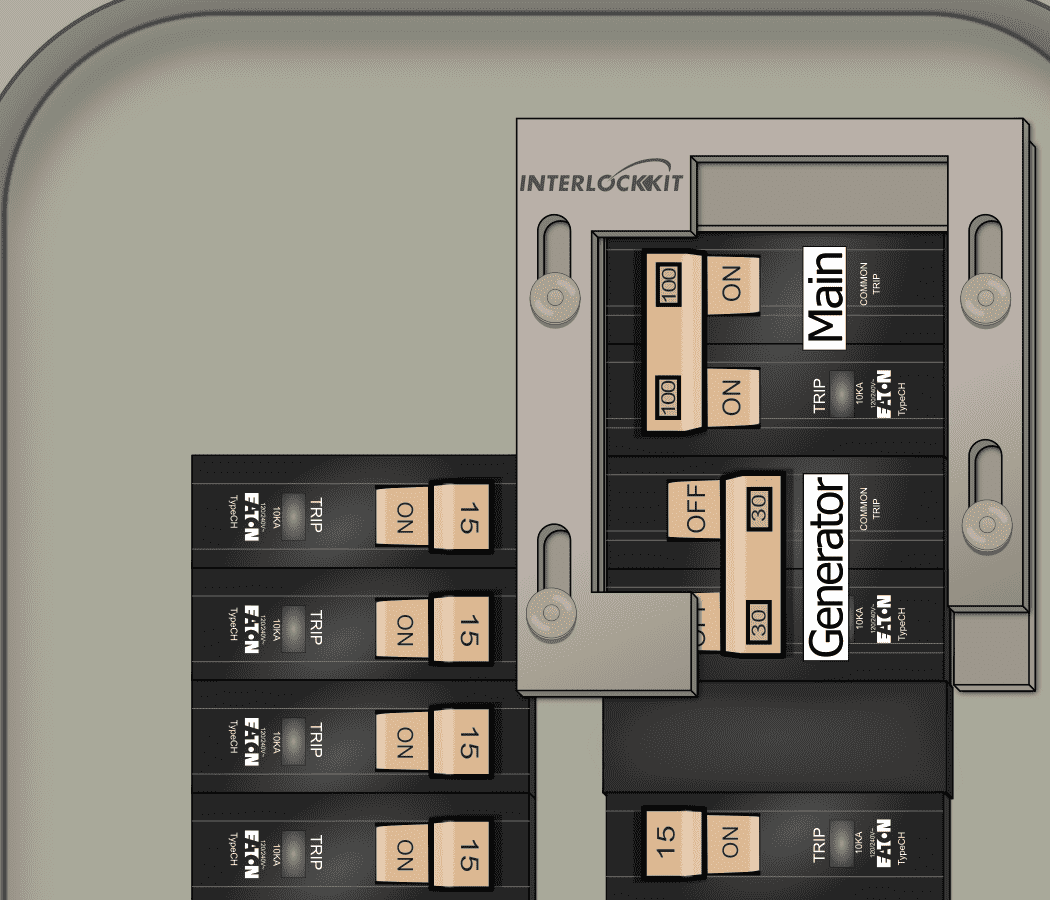

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • No gap
  • 100-125 amp two pole main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker sits directly on top of the breaker stack in the right or left breaker column
  • Compatible with CH style breakers

Requirements:

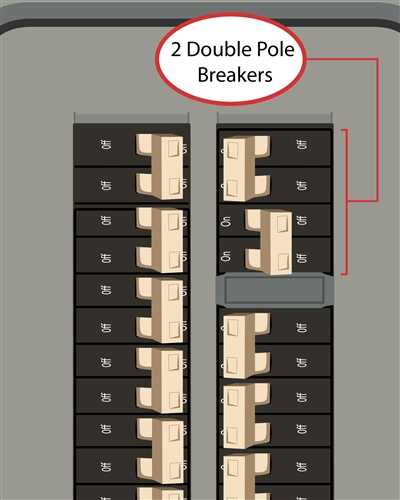

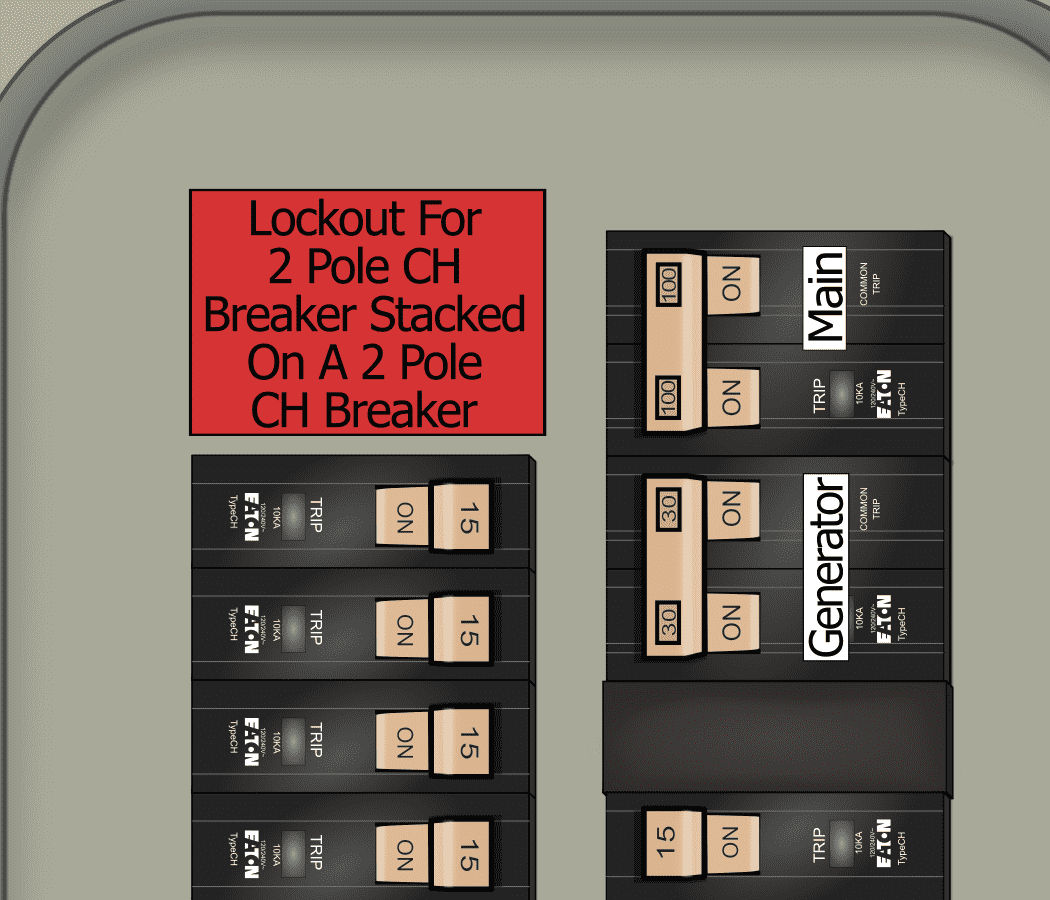

  • Install a two pole generator directly below the main breaker in spaces: 6 & 8
  • Page four of the installation instructions includes a list of contents included in Kit K-9210

Interlock Kits similar to this kit include: K-9010, K-9011, K-9110, K-9310, & K-9410

Kit Installation Instructions

Description

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • No gap
  • 100-125 amp two pole main breaker
  • Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
  • Main breaker sits directly on top of the breaker stack in the right or left breaker column
  • Compatible with CH style breakers

Requirements:

  • Install a two pole generator directly below the main breaker in spaces: 6 & 8
  • Page four of the installation instructions includes a list of contents included in Kit K-9210

Interlock Kits similar to this kit include: K-9010, K-9011, K-9110, K-9310, & K-9410

Kit Installation Instructions

Additional information

Weight 1 lbs
