Interlock Kit K-6715

$149.95

189 in stock

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

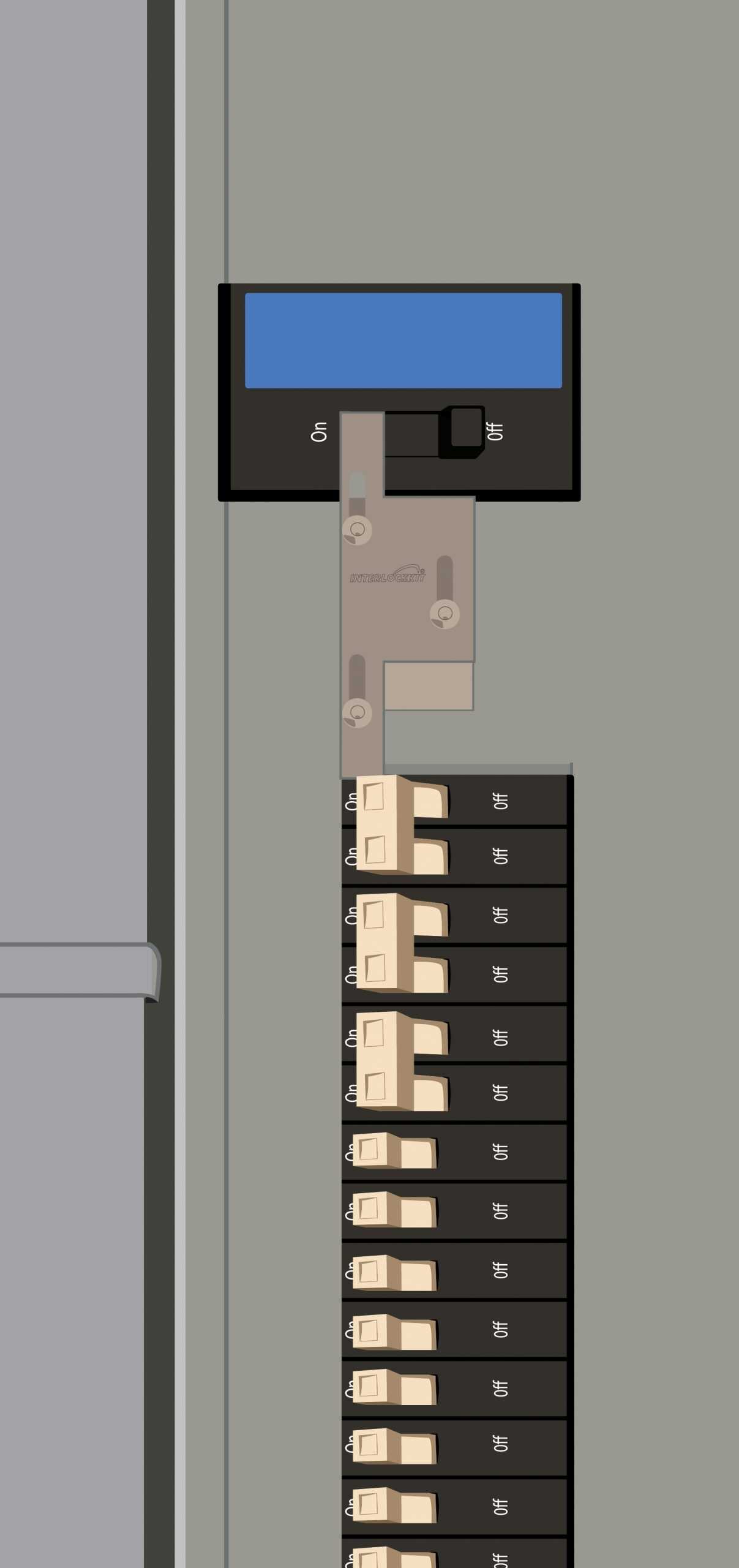

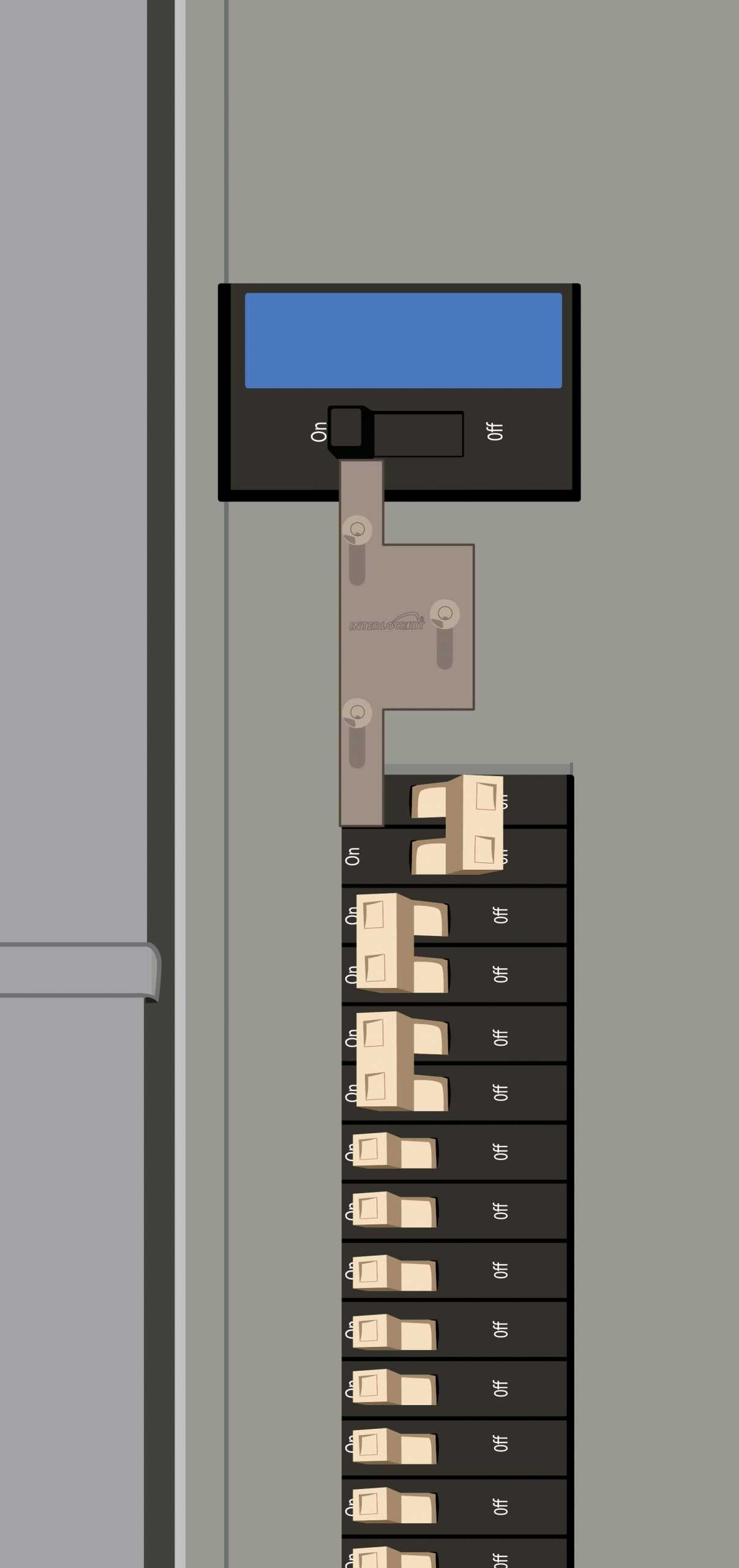

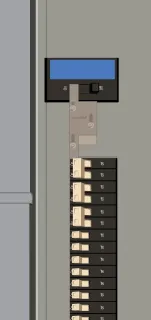

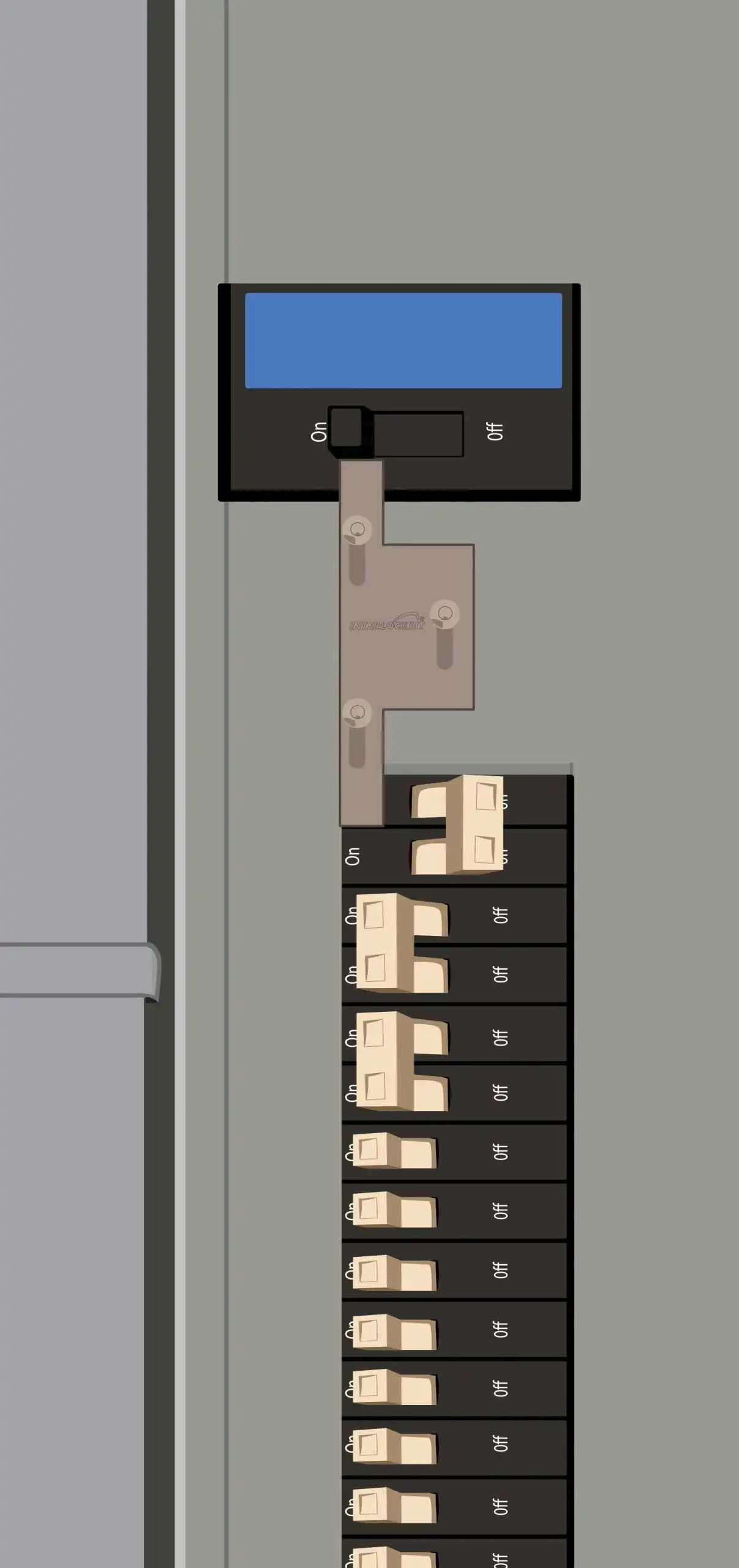

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels; requires:

  • Single breaker column below the main breaker

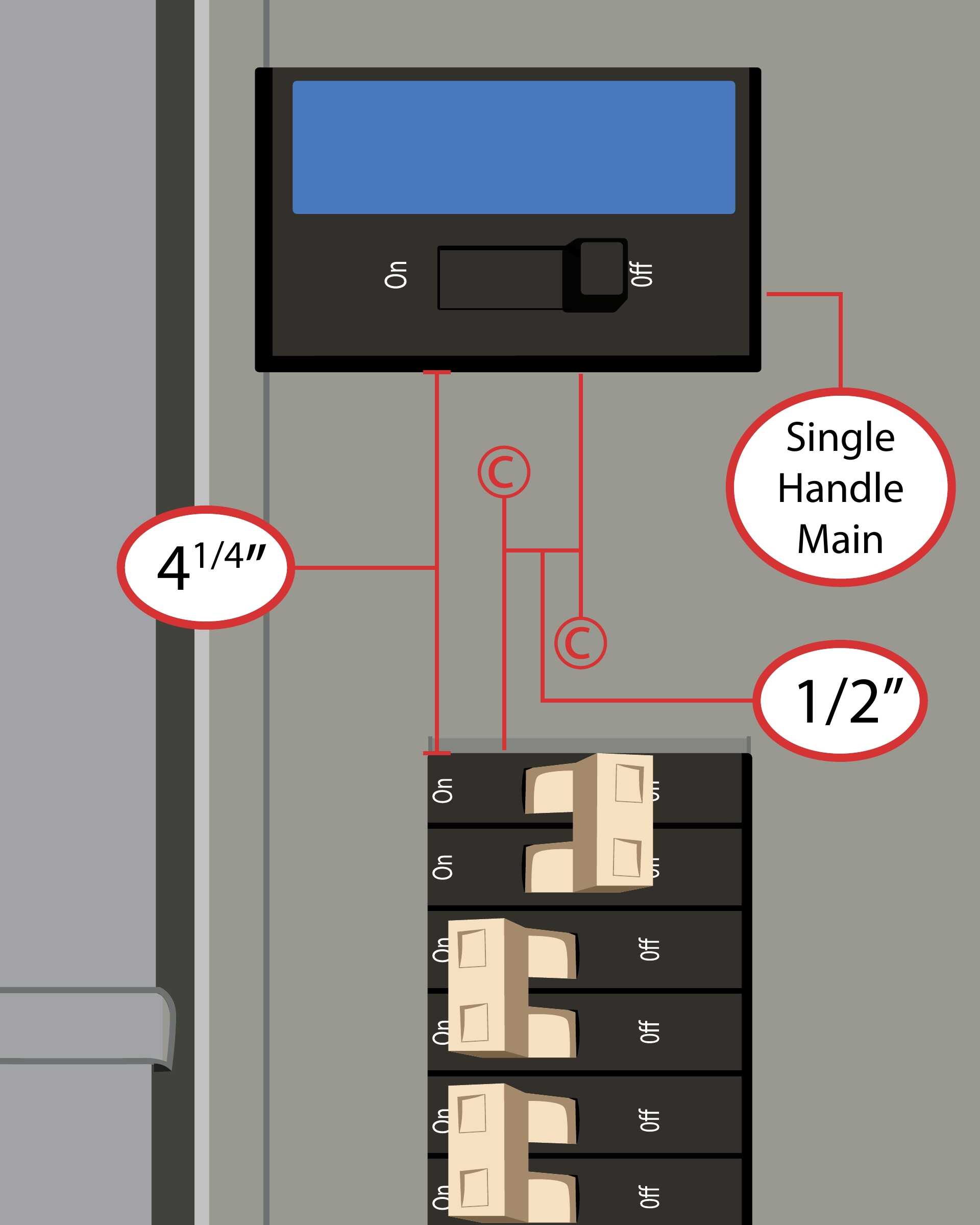

  • Gap between main breaker and breaker columns below, is: 4 1/4"
  • 150-200 amp main breaker
  • Main breaker toggle action: horizontally (left-right) throw direction ON & OFF
  • Compatible with: CH style breakers

Requirements

  • Install a two pole generator breaker directly below the main in the top two spaces of the breaker column
  • Page four of the installation instructions includes a list of contents included in Kit K-6715

Modified versions of the Interlock Kit exist, see: K-6610, K-6710, K-6716

Kit Installation Instructions

Additional information

Weight 1 lbs
