Interlock Kit K-6610 | Interlock Kit

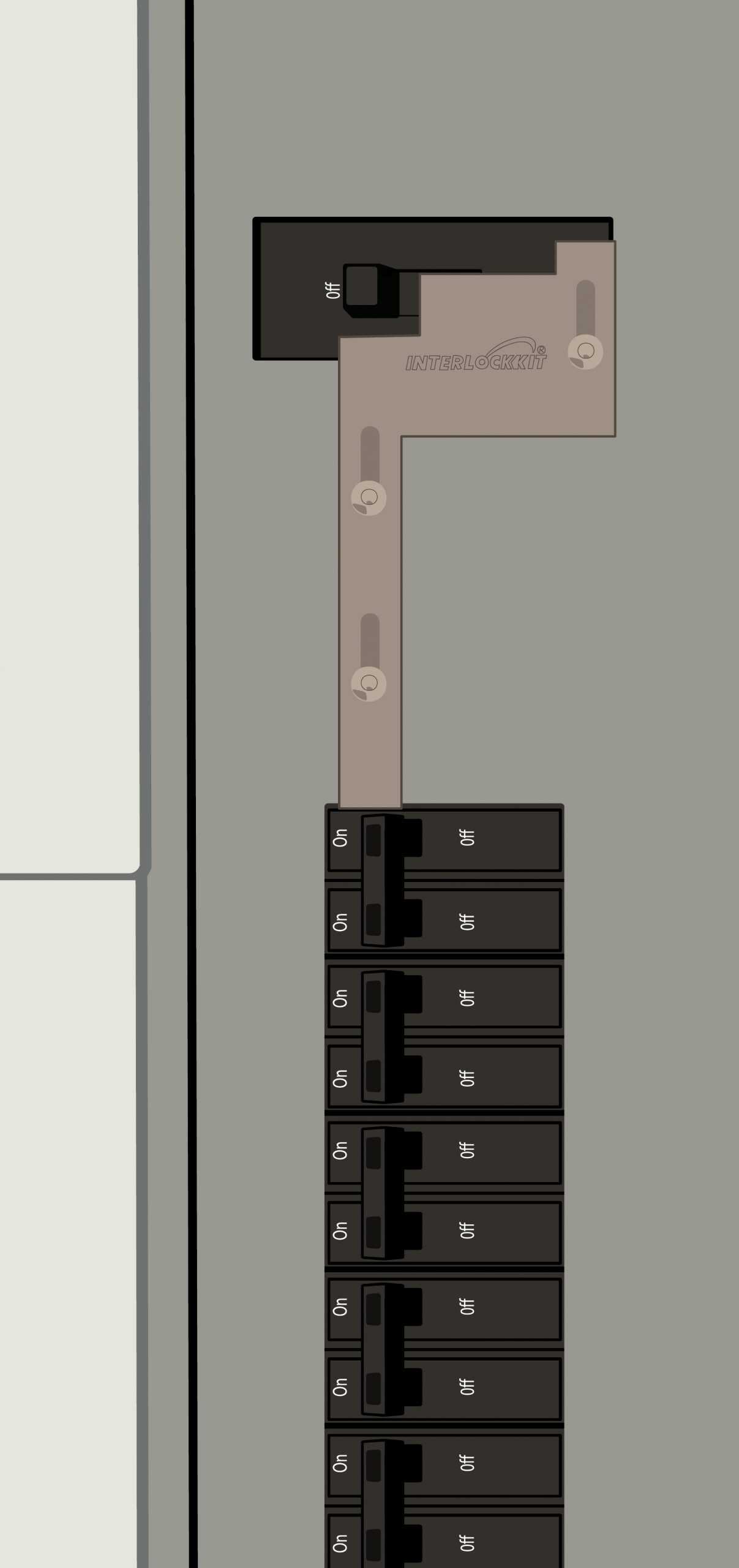

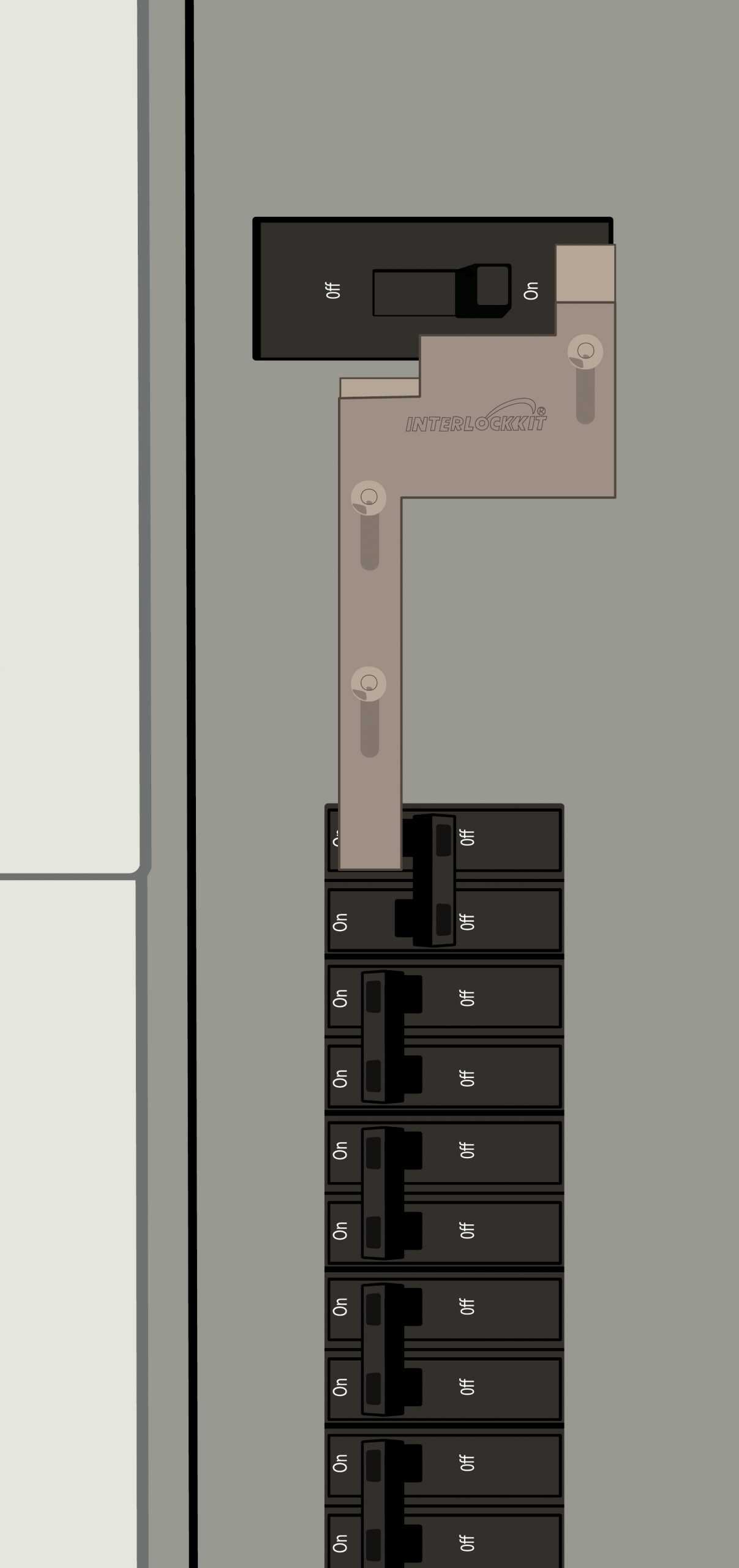

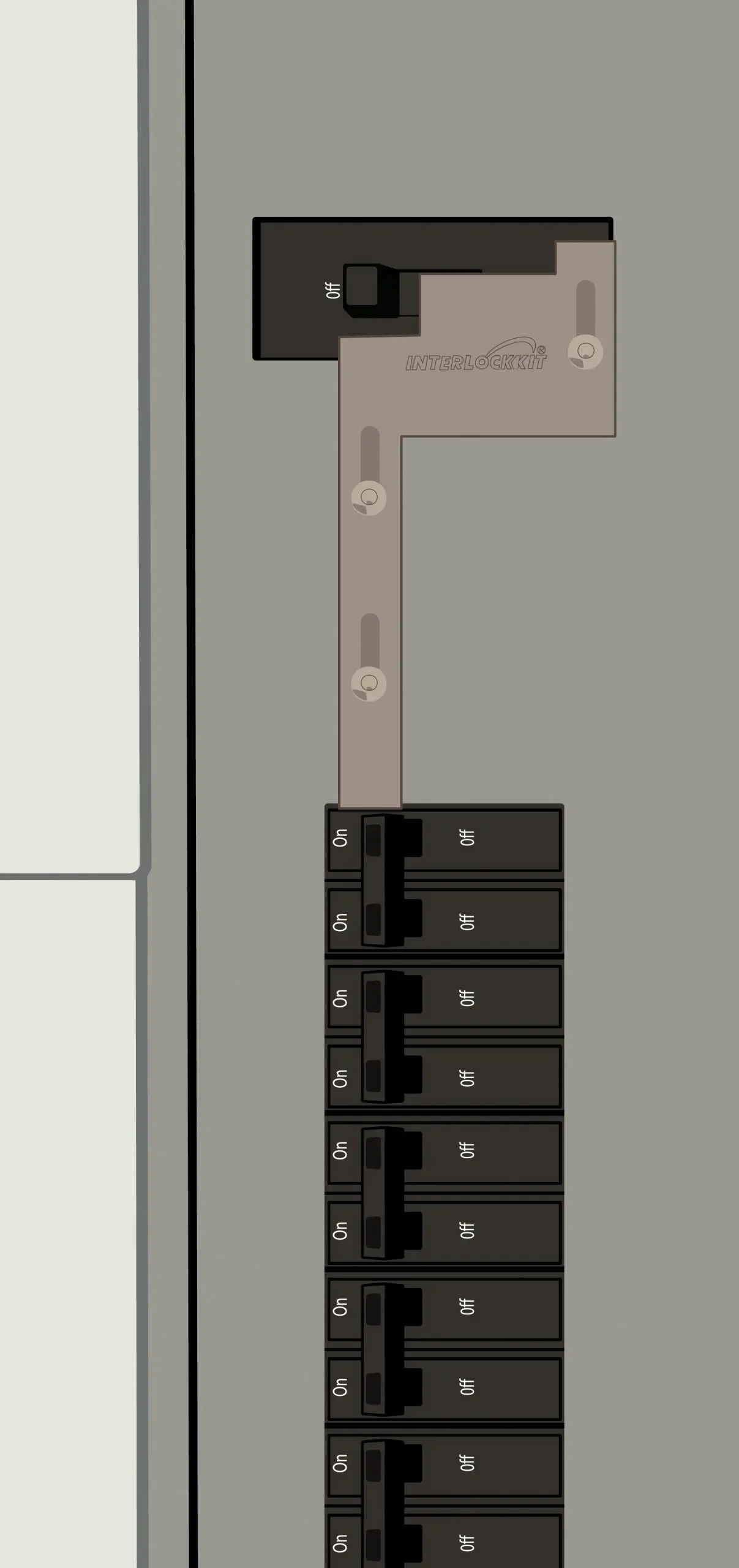

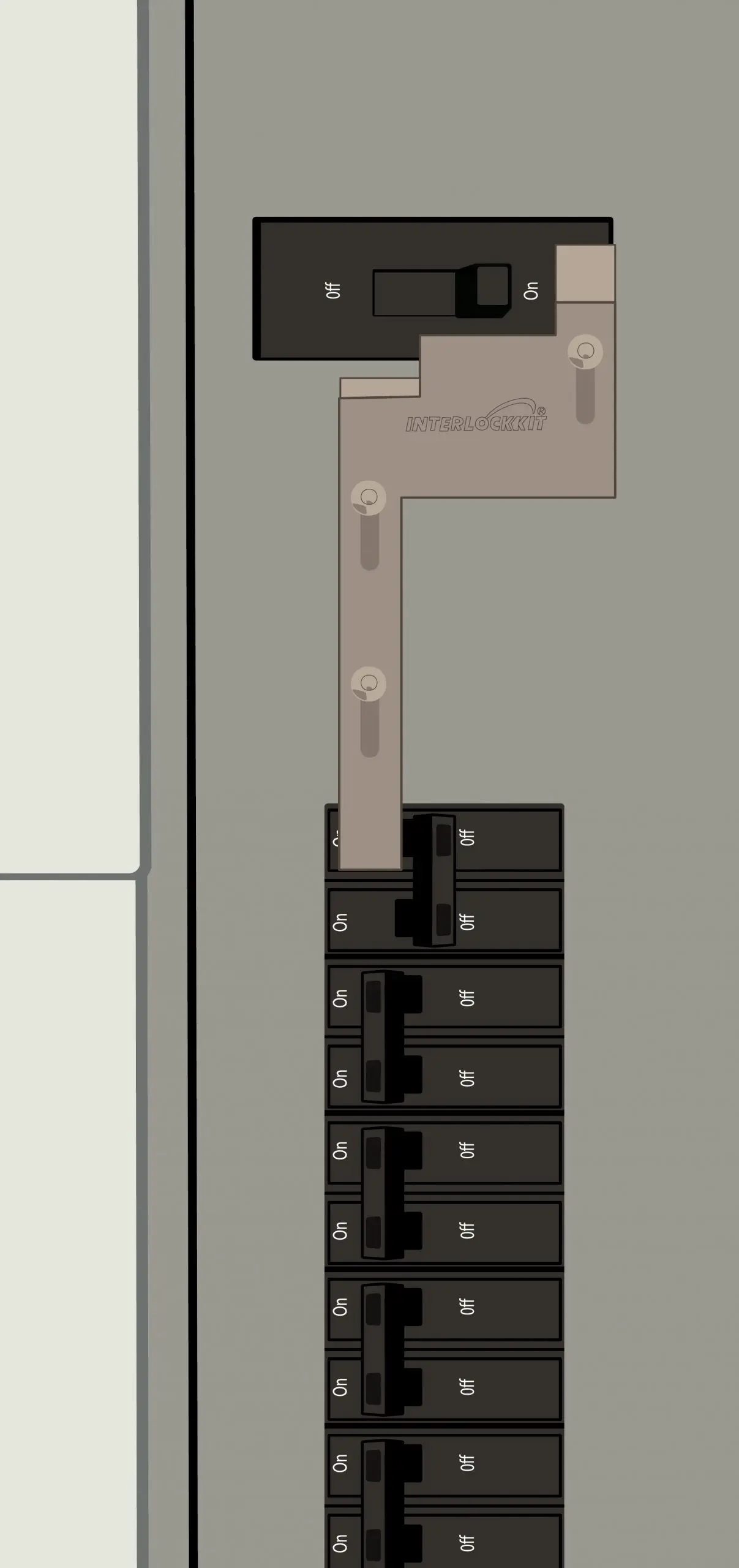

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels; requires:

• Single breaker column below the main breaker

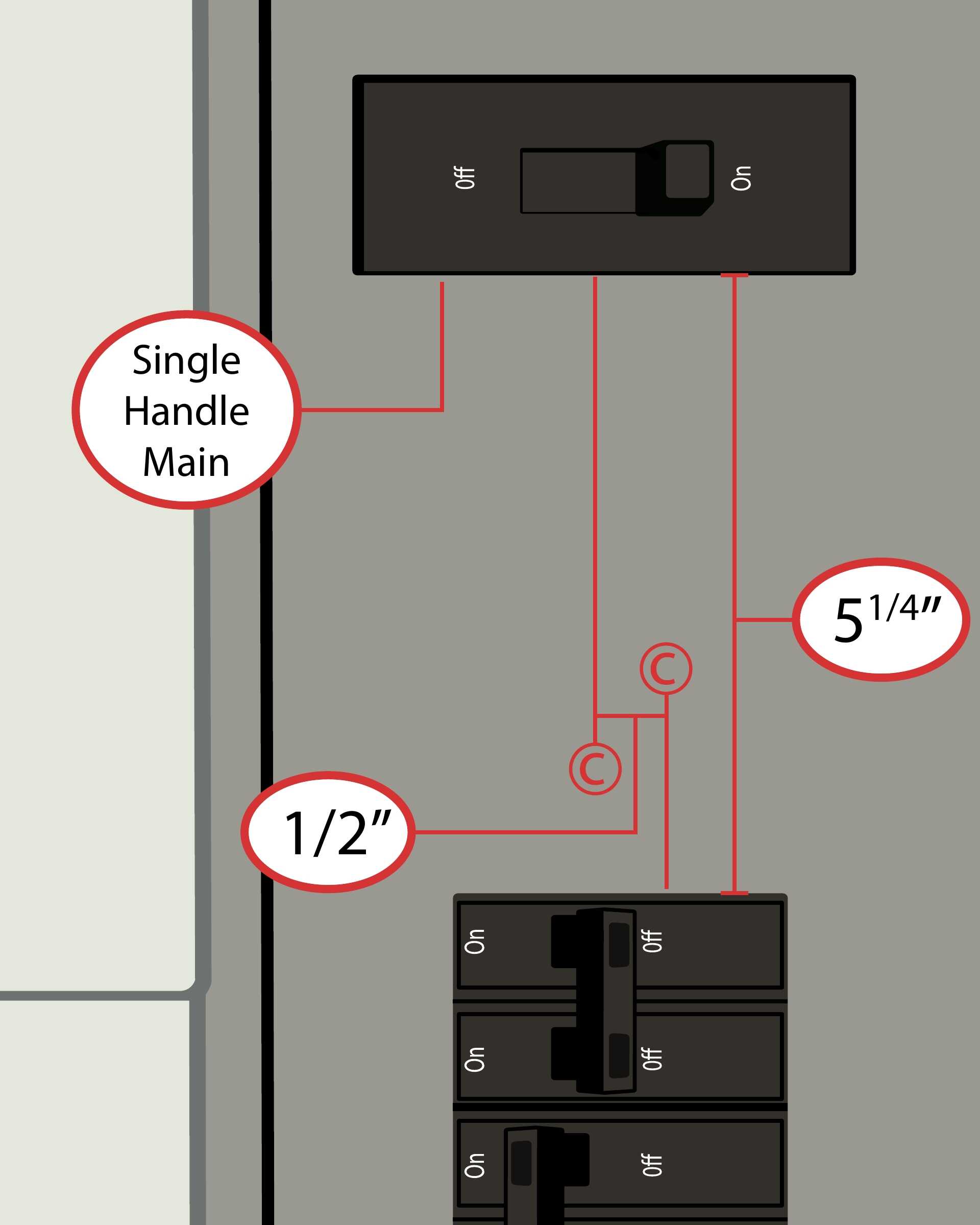

• Gap between main breaker and breaker columns below, is: 5 1/4"
• 150-200 amp main breaker
• Main breaker toggle action: horizontally (left-right) throw direction ON & OFF
• Compatible with: BR style breakers

Requirements

• Install a two pole generator breaker directly below the main in the top two spaces of the breaker column
• Page four of the installation instructions includes a list of contents included in Kit K-6610

Modified versions of the Interlock Kit exist, see: K-6710, K-6715, K-6716

Kit Installation Instructions
