Interlock Kit K-6510
Price range: $149.95 through $219.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

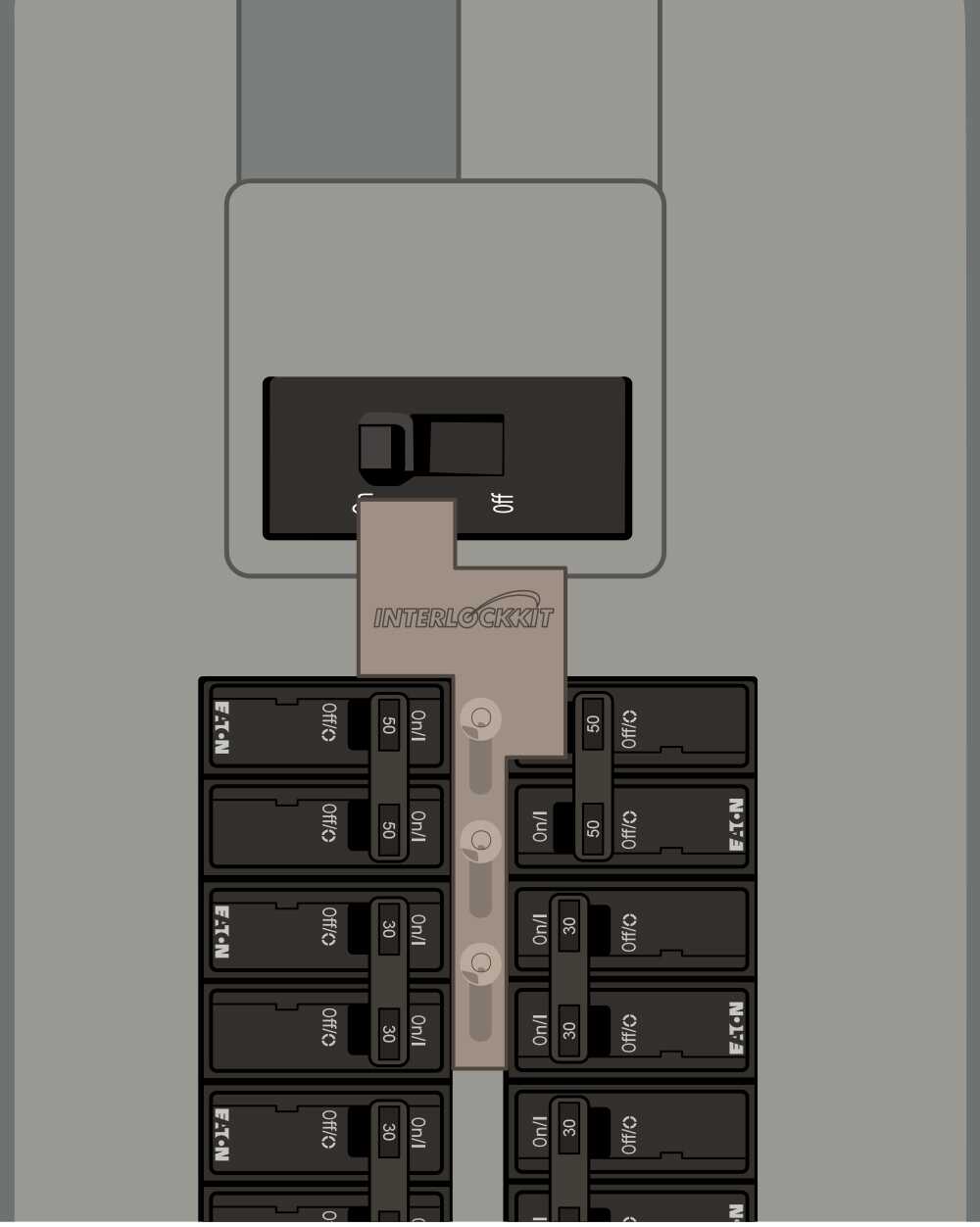

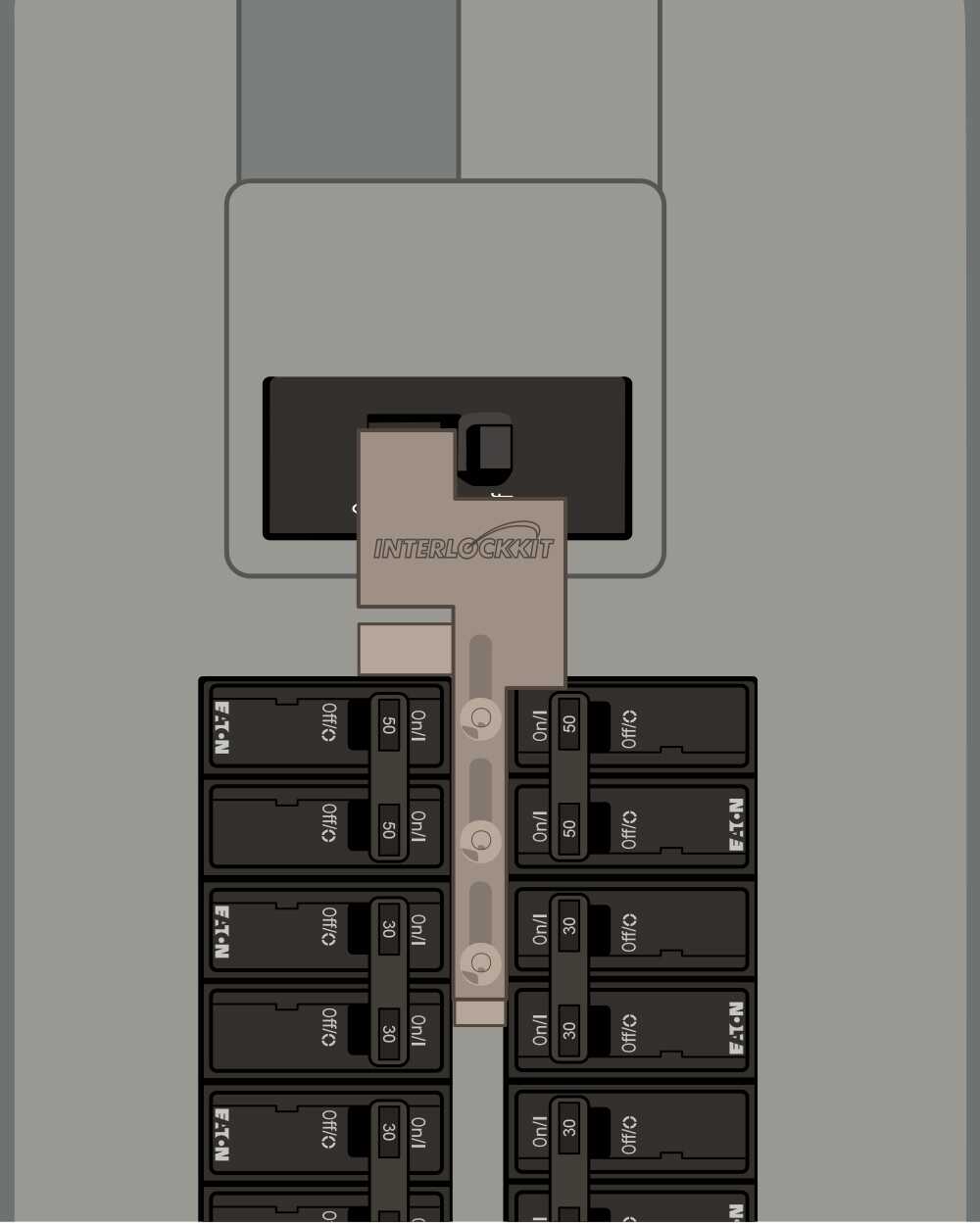

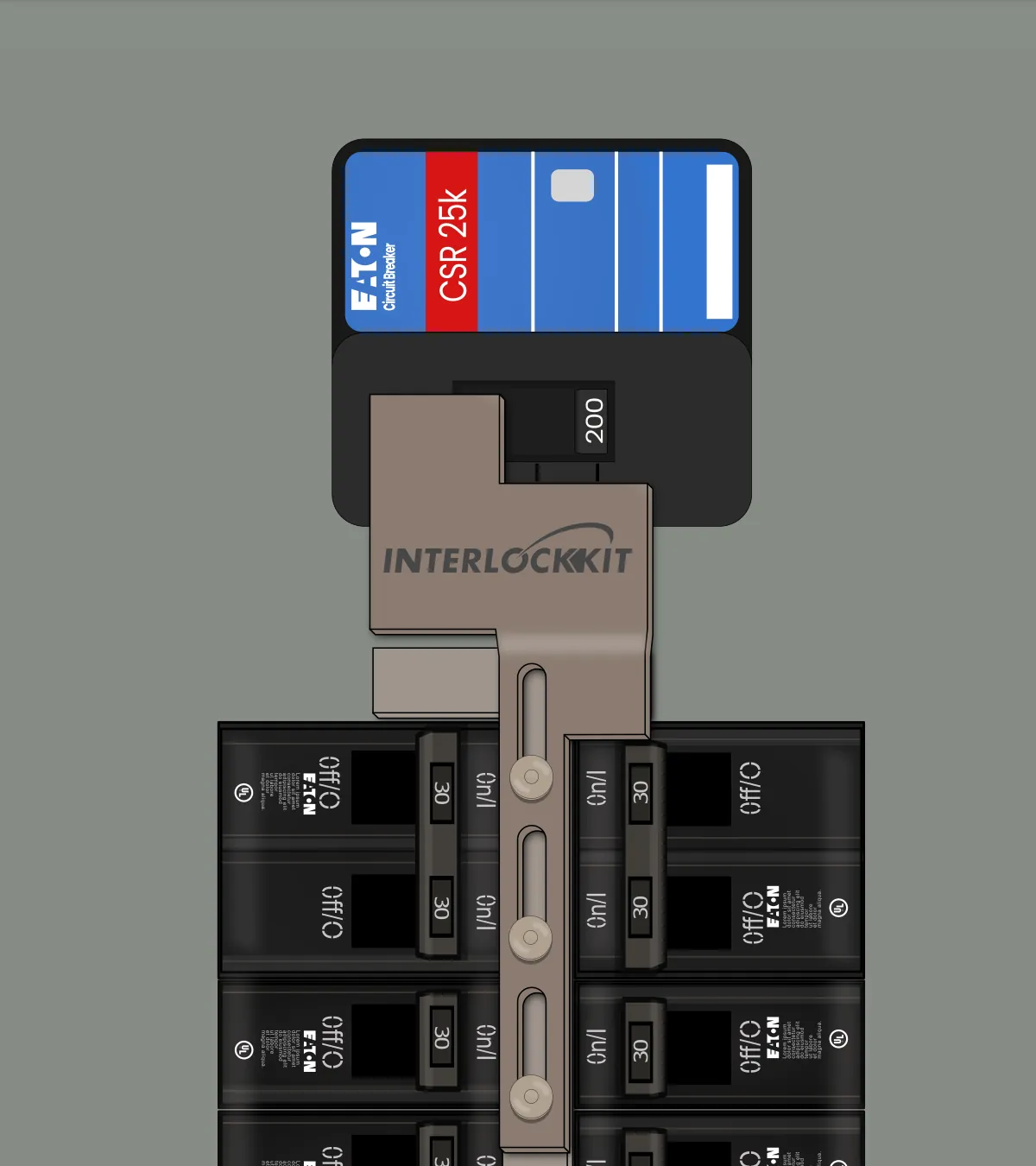

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

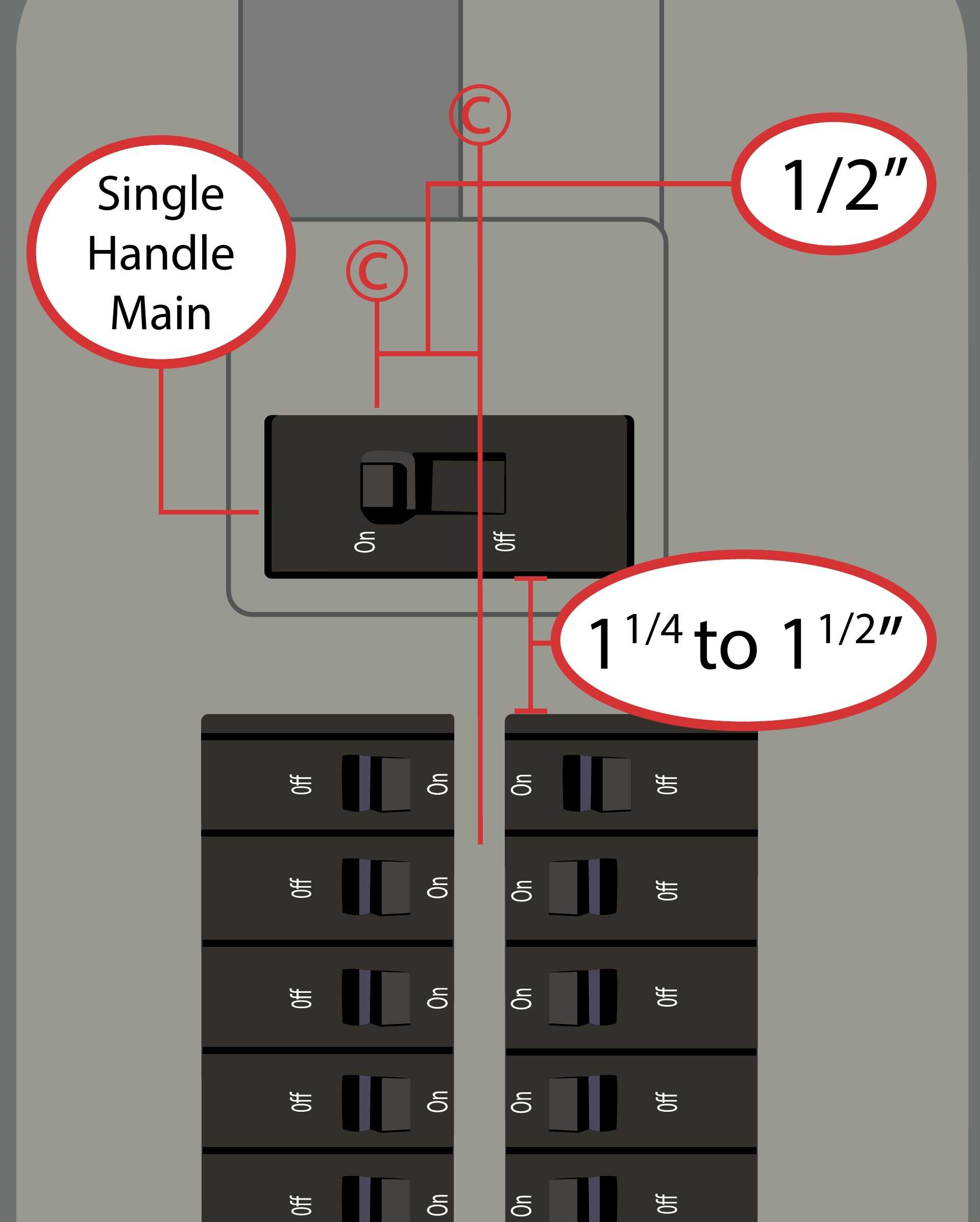

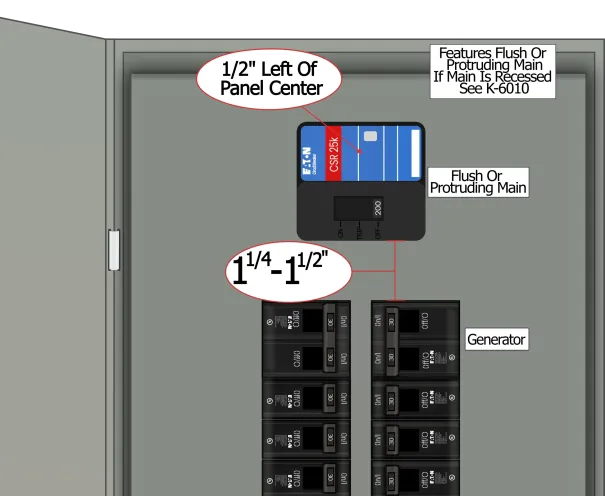

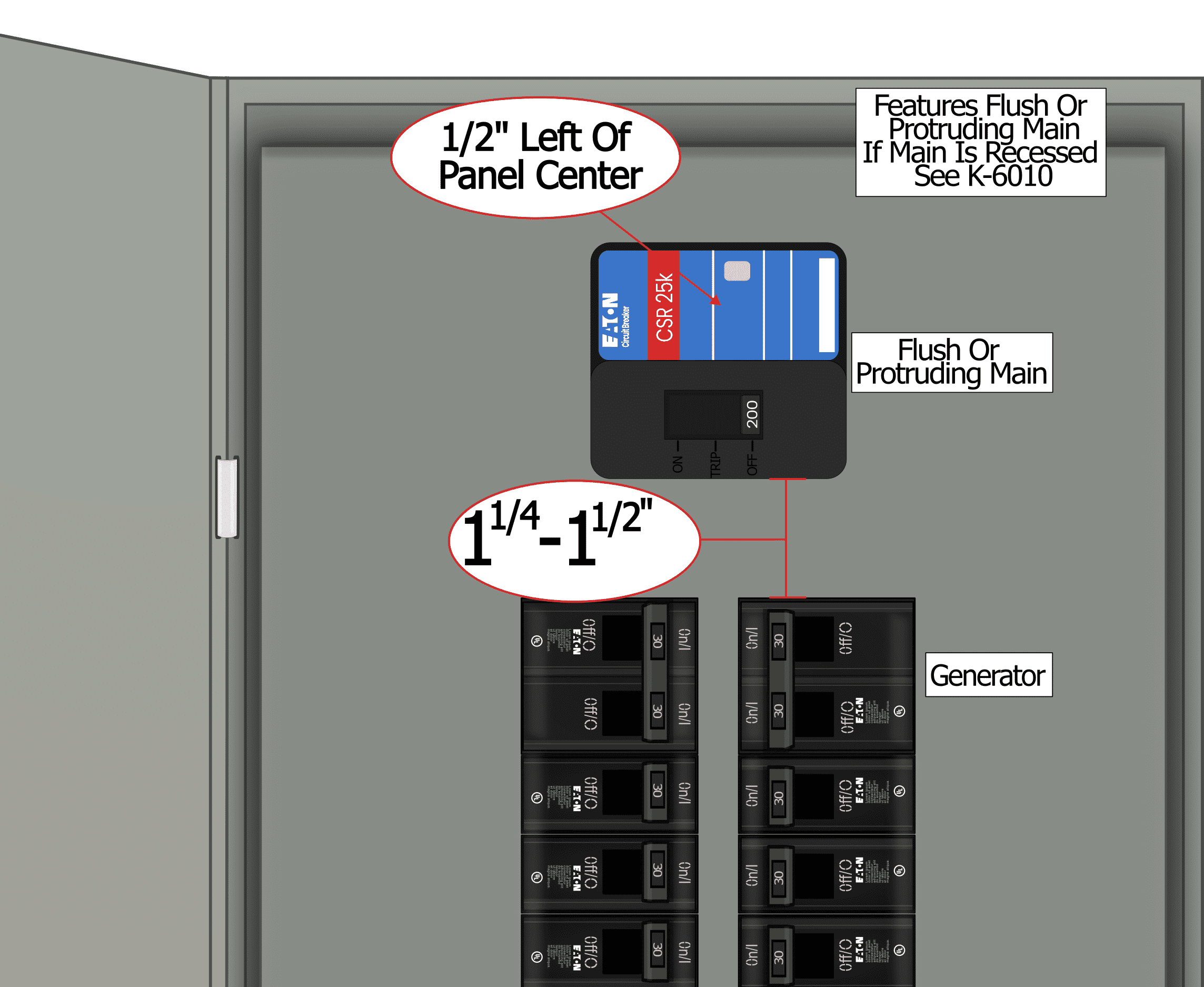

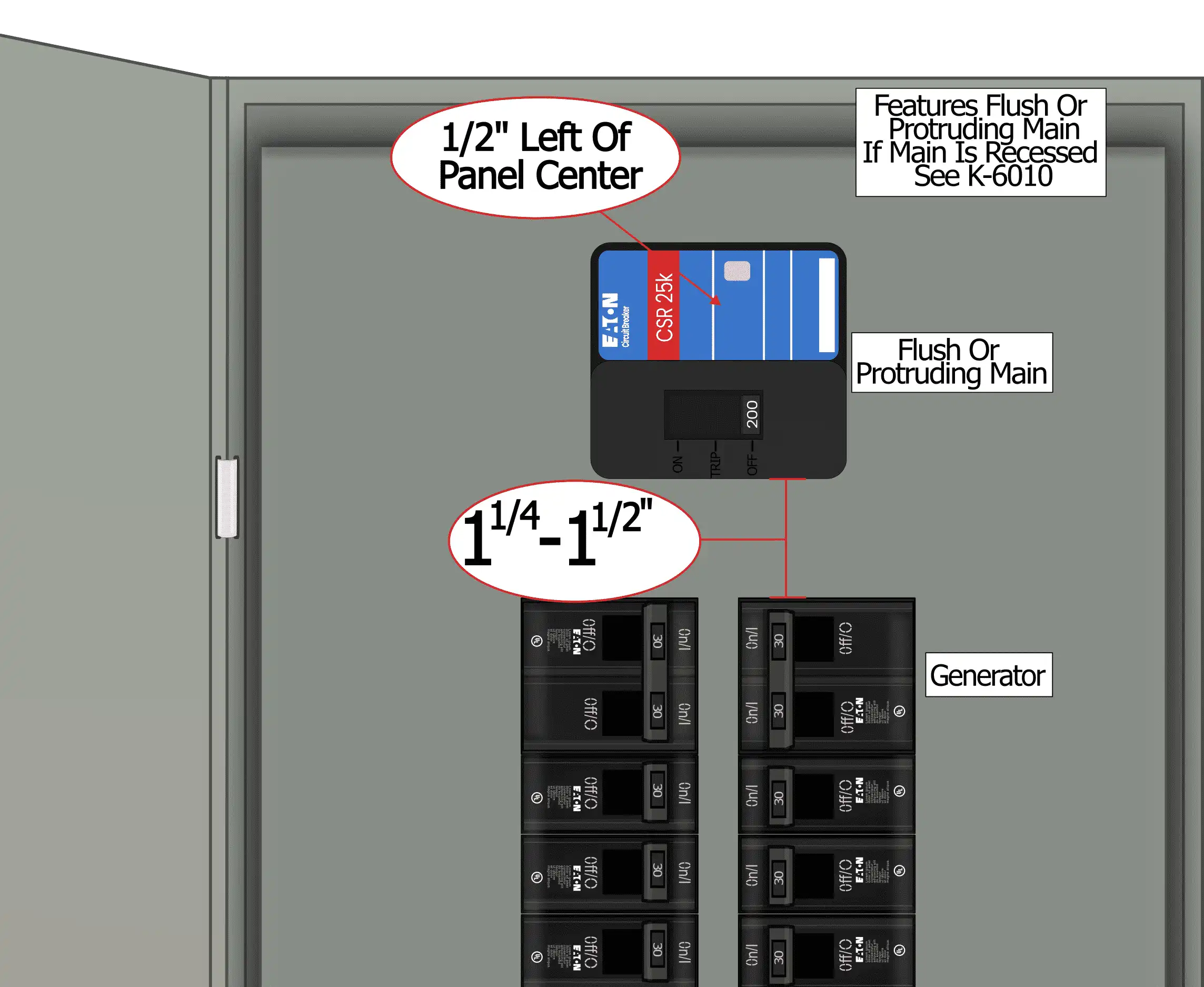

- Space between breaker columns: 1/2"

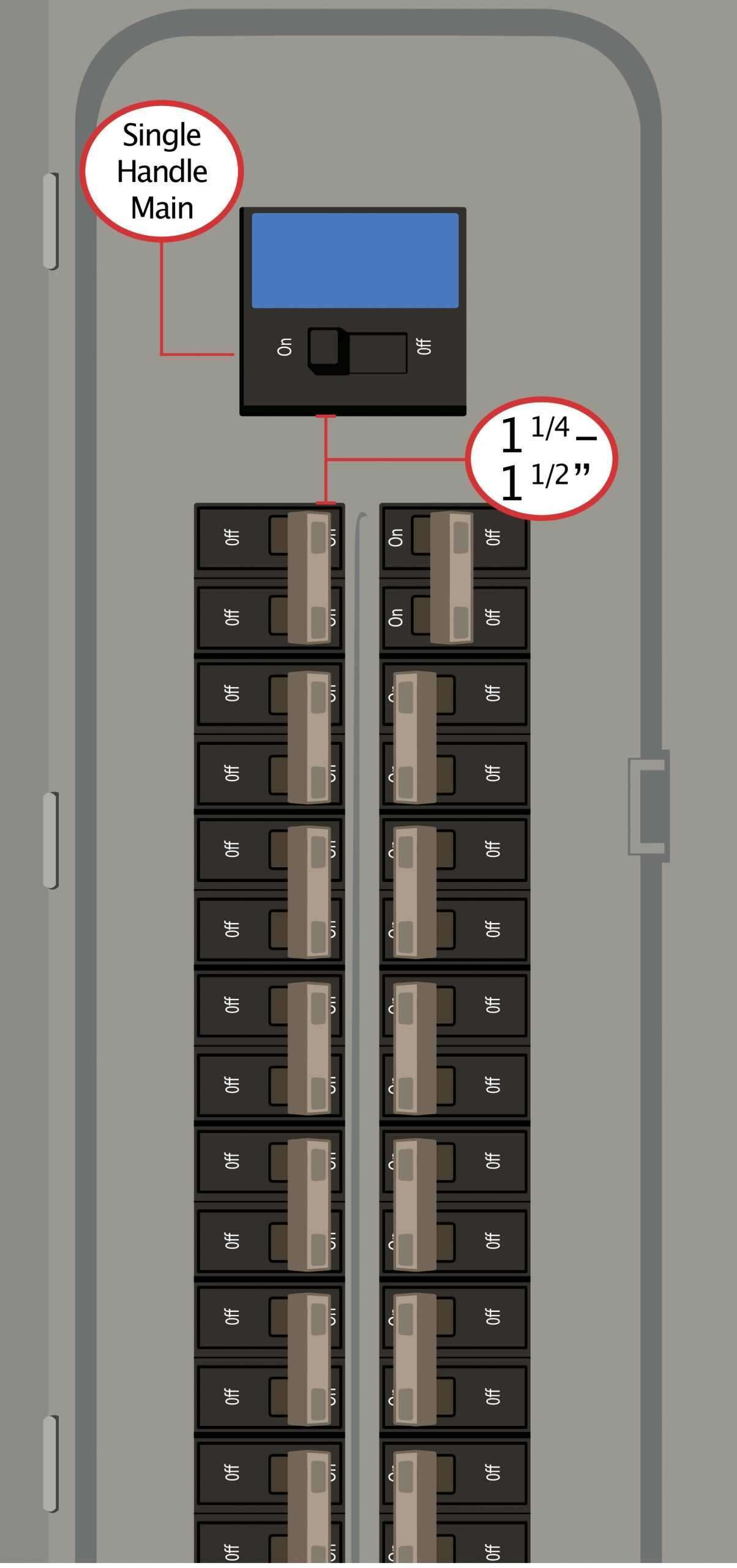

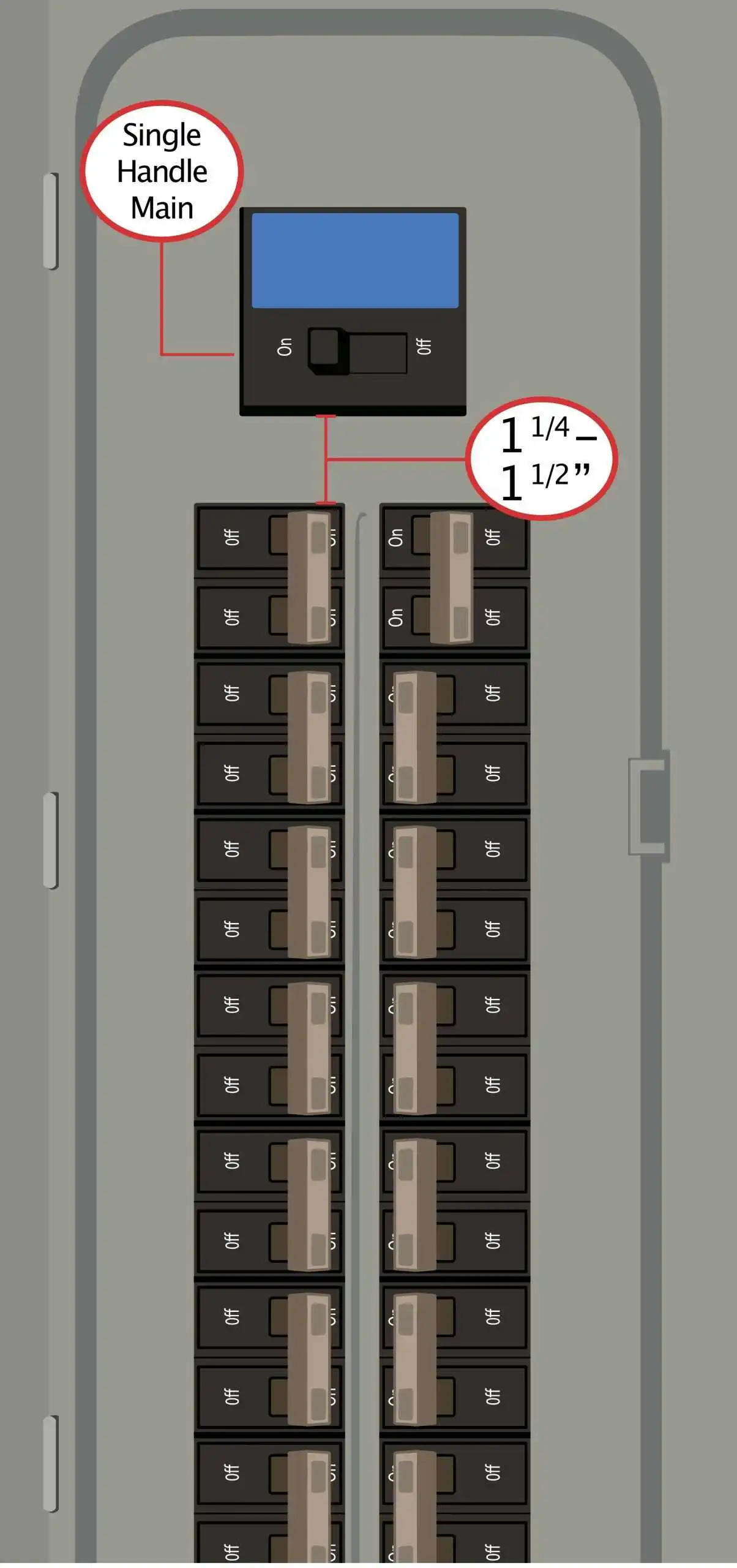

- Gap between main breaker and columns below, is: 1 1/4 - 1 1/2"
- 150-200 amp main breaker
- Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
- Main breaker sits offset from the center: 1/2" to the left

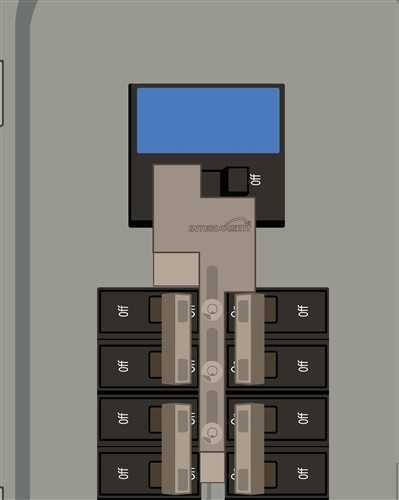

- Compatible with BOTH: CH & BR breakers - Formerly K-6310 operated with CH
Recommendations

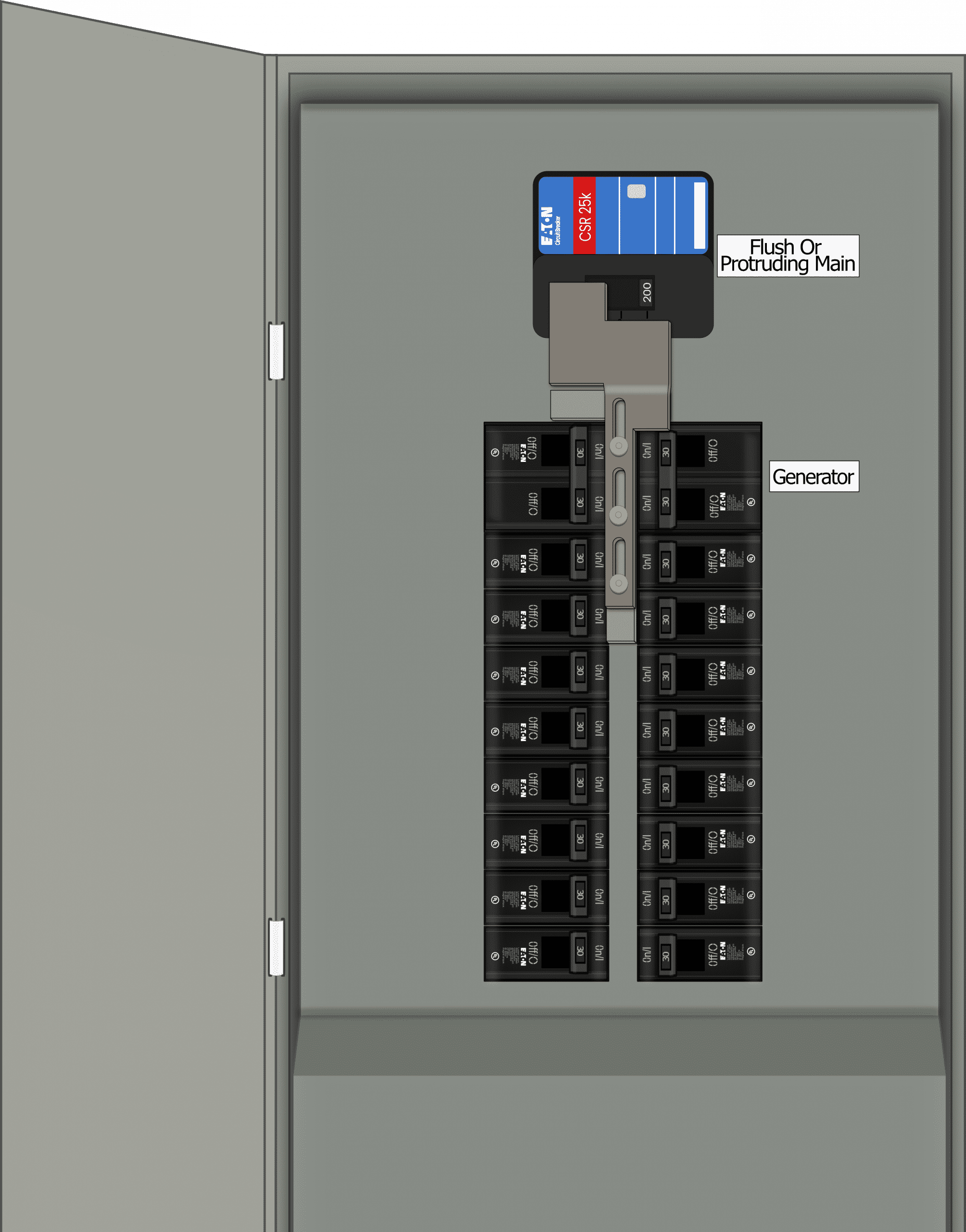

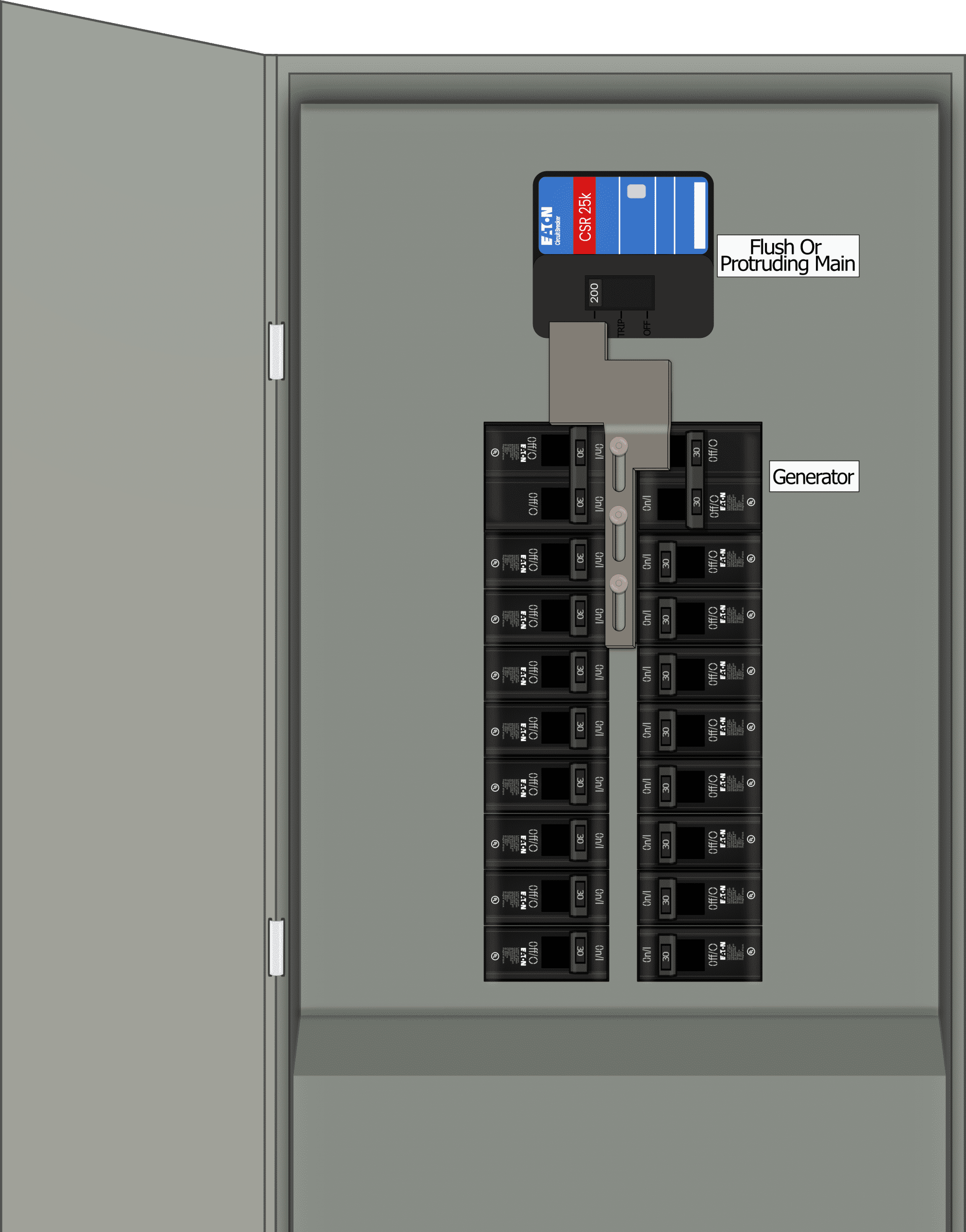

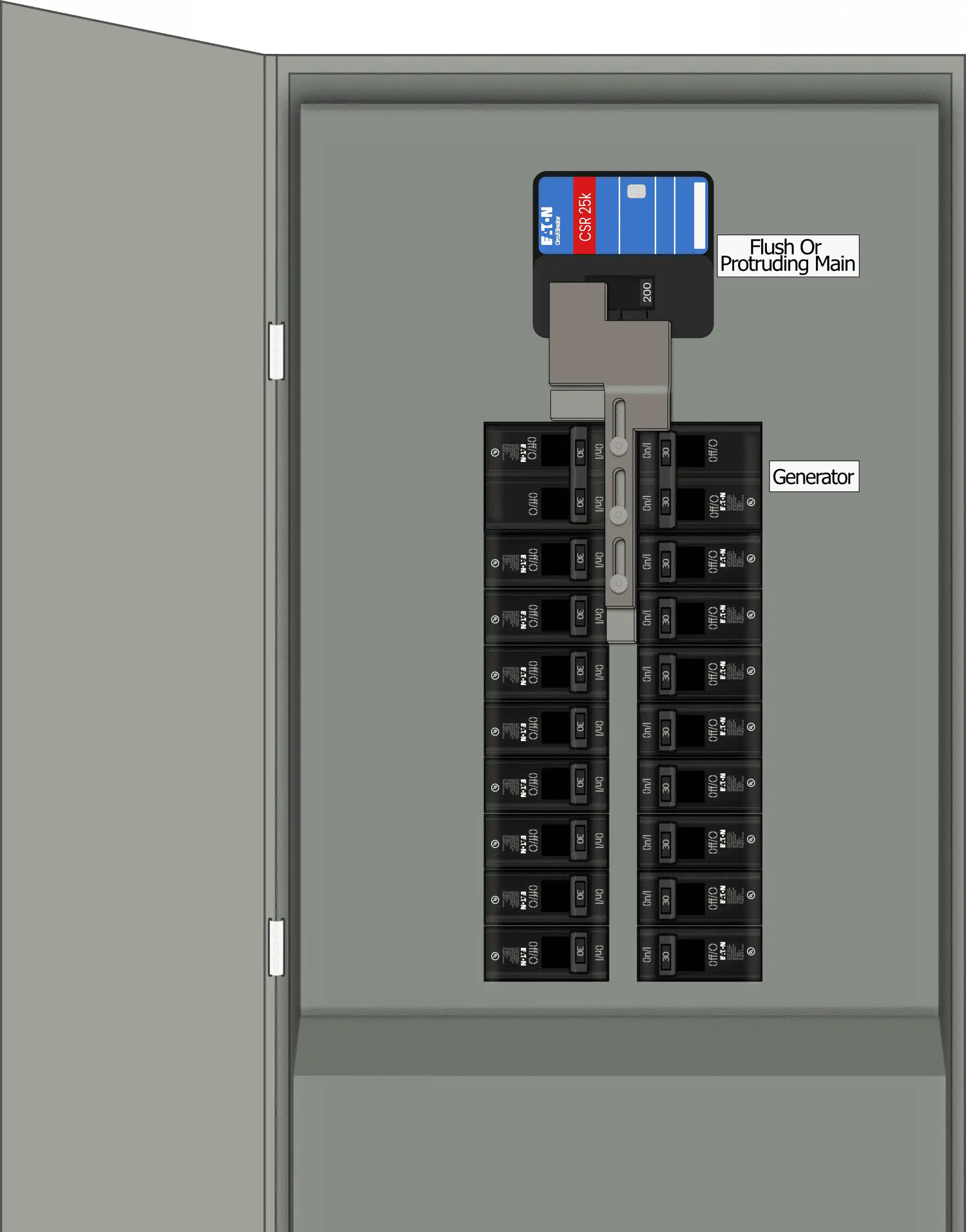

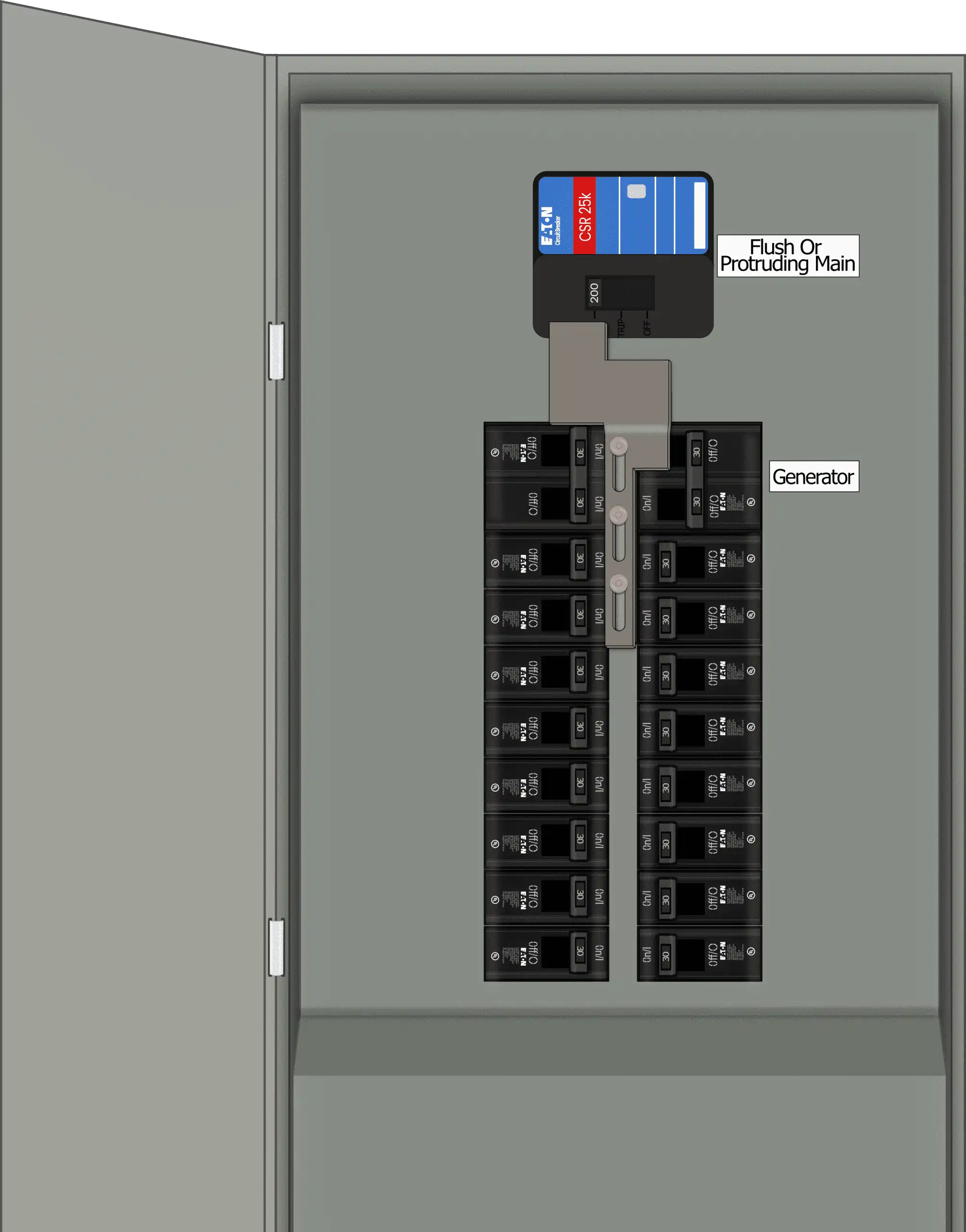

- Install a two pole generator breaker at the top of the right column: spaces 2 & 4
Additional information
| Weight | 1 lbs |
|---|---|
| Catalog #: | MB2040B150SD, MB2040P200SD, MB2040B200BTSG, MB816B200BTSV, MB816P200BTS, MB816B200BTS, MB816B200BTSV, MBX2040B150BTF, MBX2040B200BTS, MB2040B200BTS, BR2040B200GK – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit! |

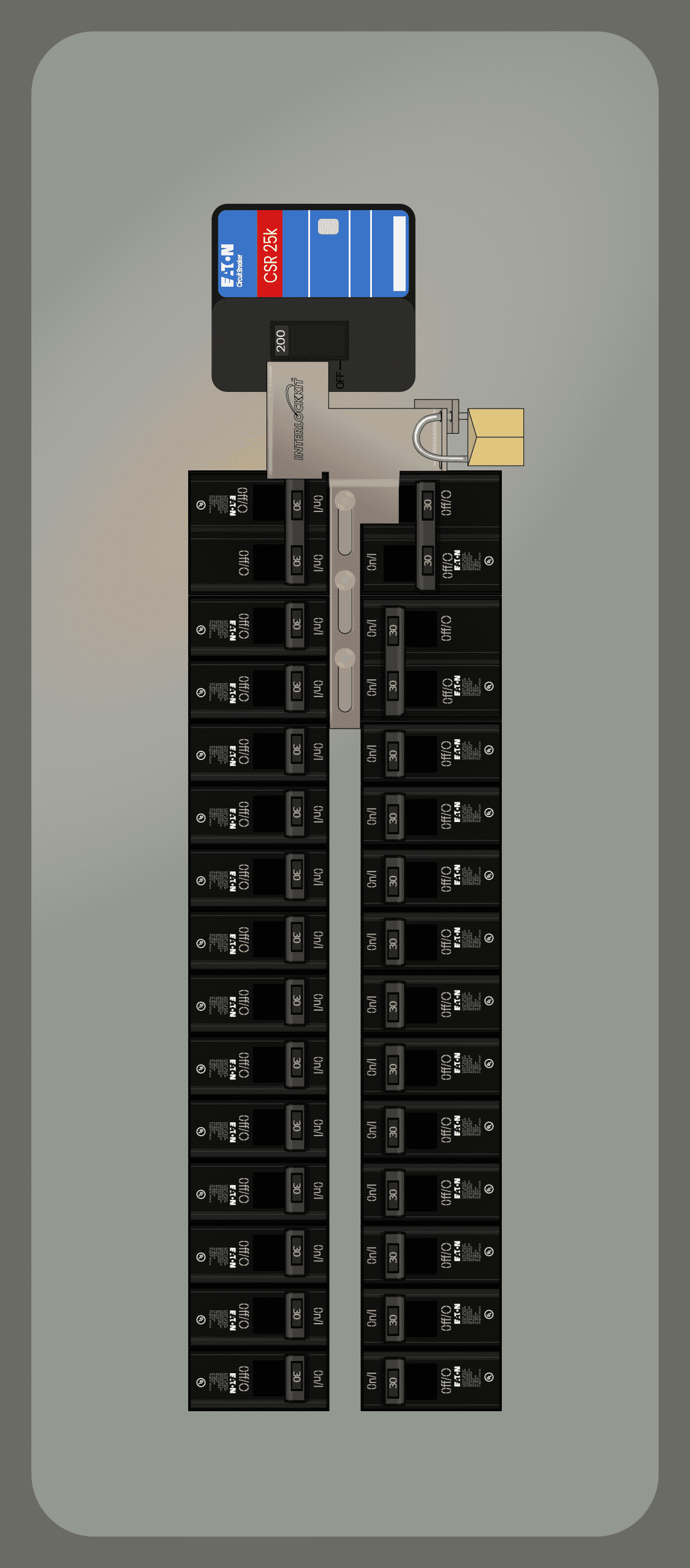

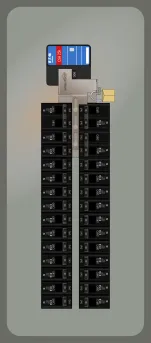

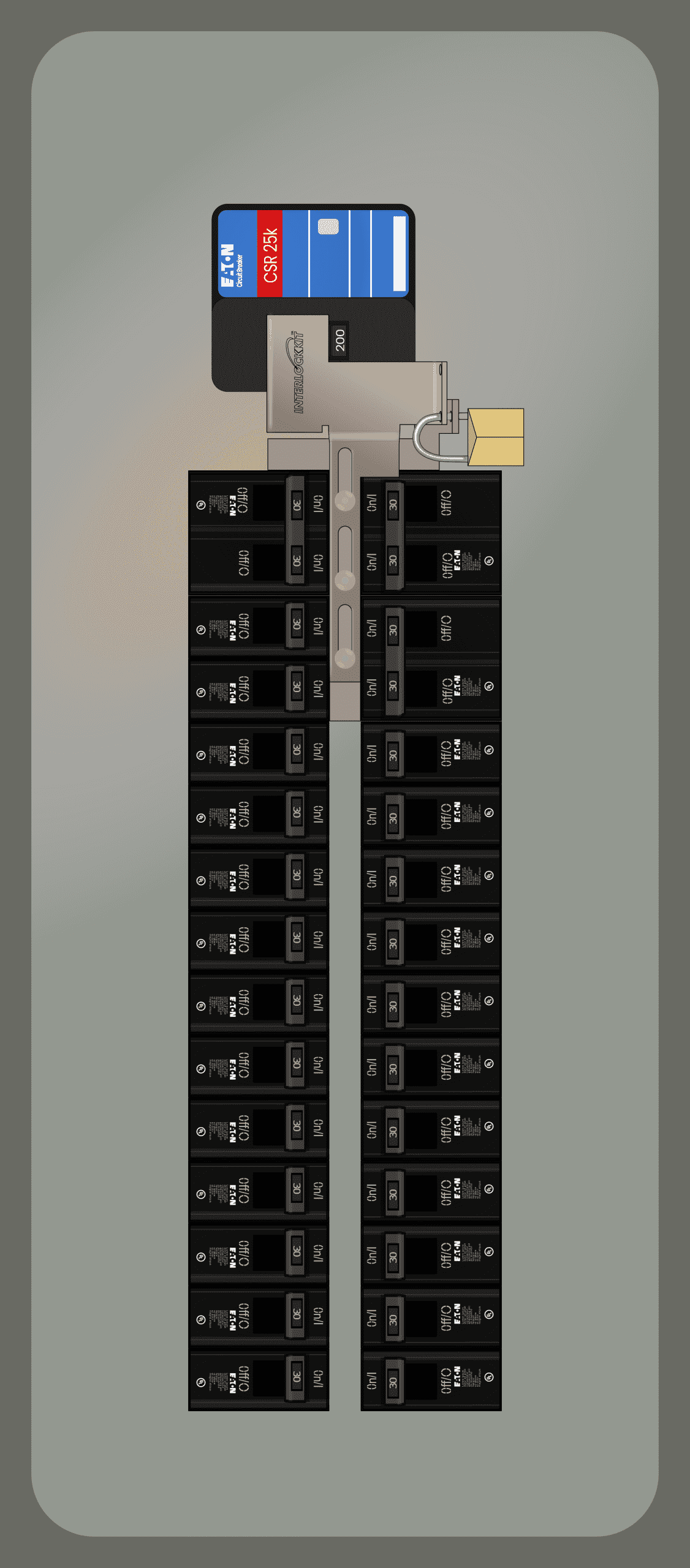

| Kit Type | K-6510, Lockable KL-6510(Lock Included) |
