Interlock Kit K-6210
This Kit mounts to a EATON / Cutler Hammer electrical panels with the following features:

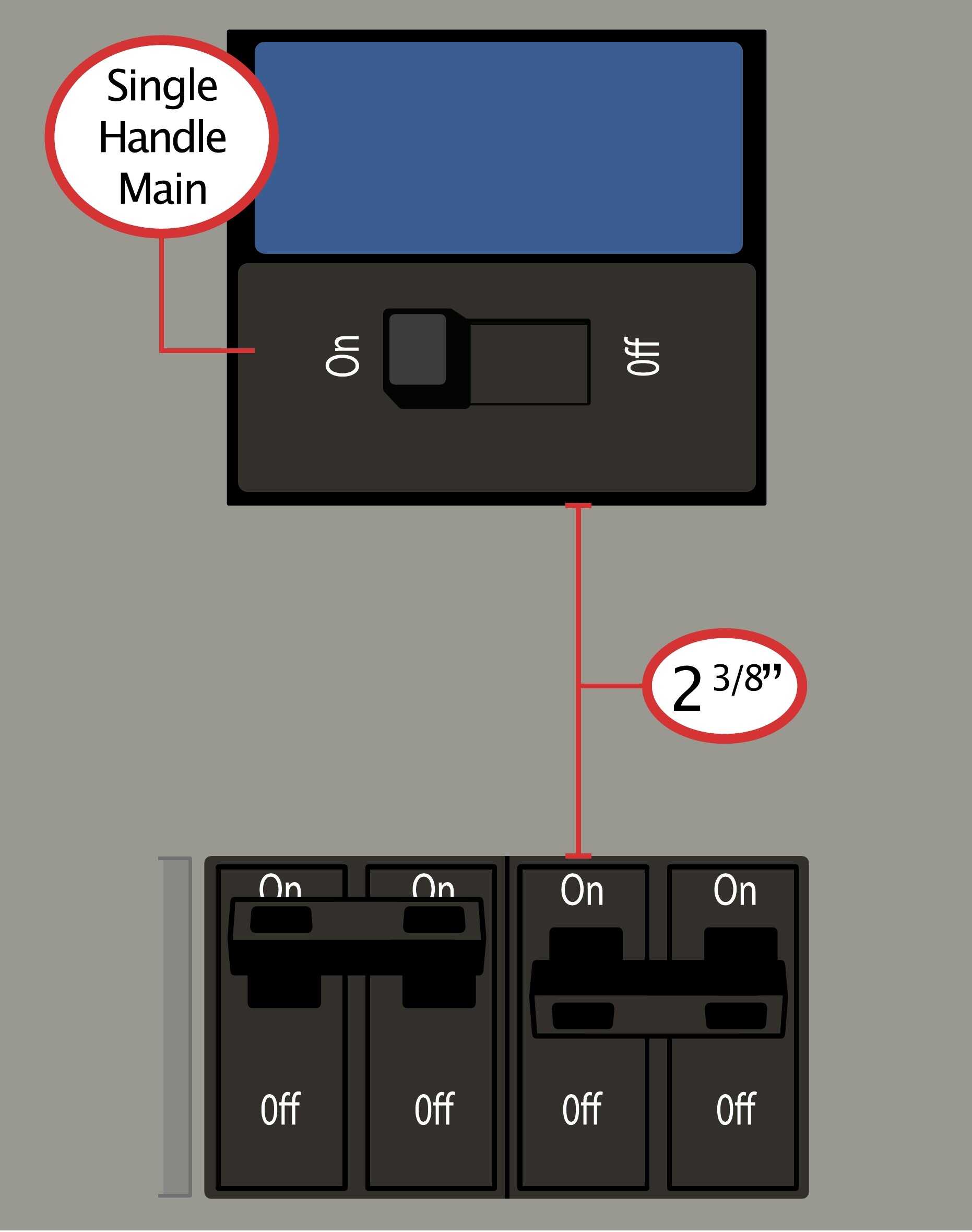

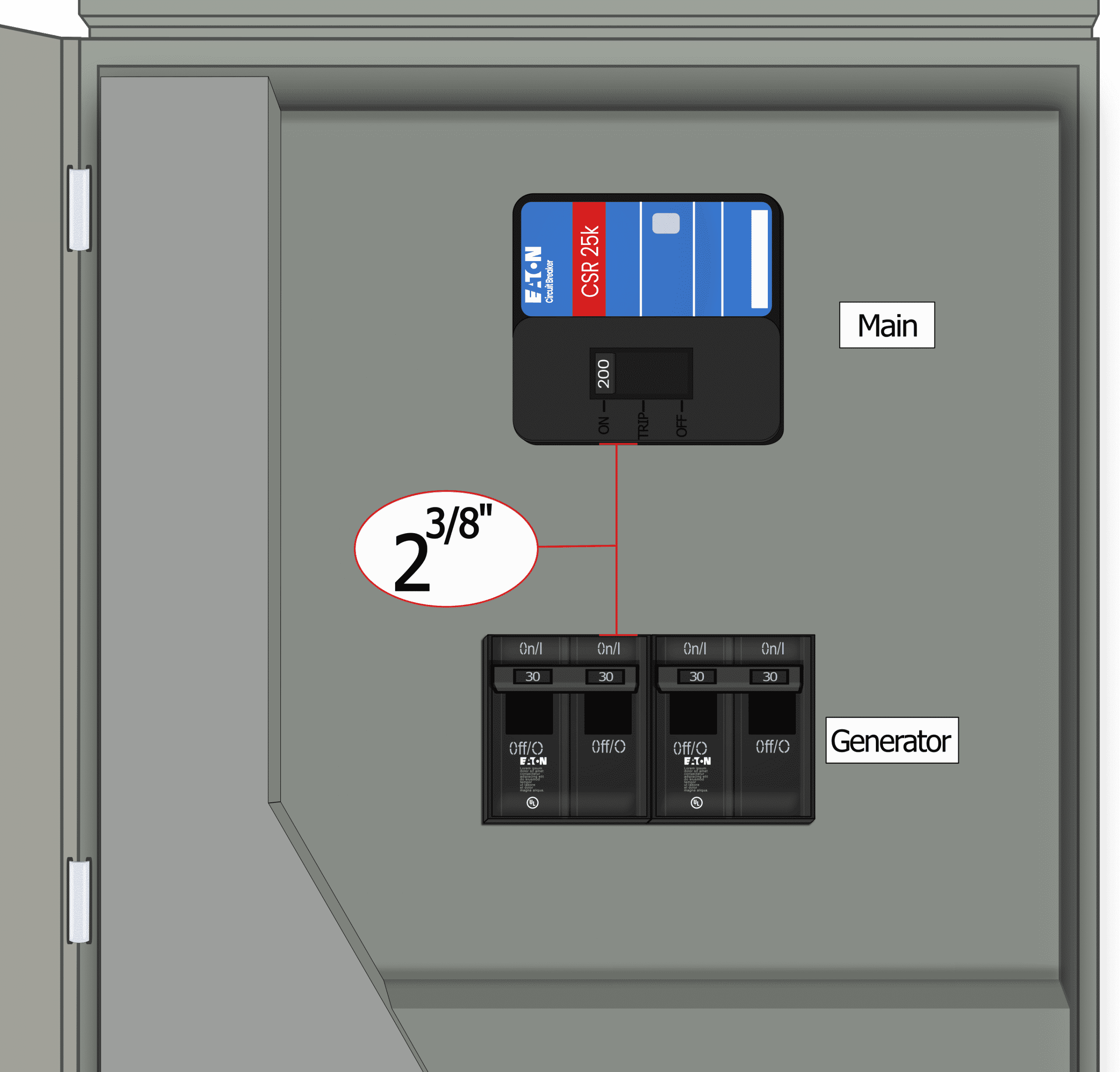

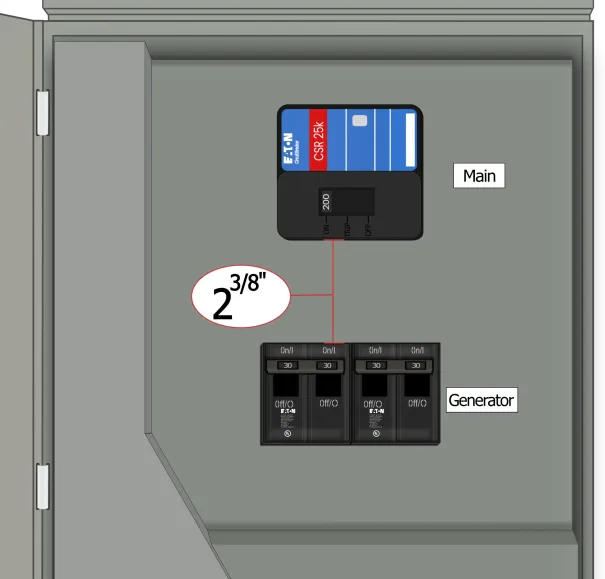

- Gap between main breaker and columns below, is: 2 3/8"
- 150-200 amp main breaker
- Main breaker toggle action: Horizontal (left-right) throw direction ON & OFF
- Main breaker sits centered over the other breaker spaces beneath
- Compatible with BOTH: CH & BR breakers

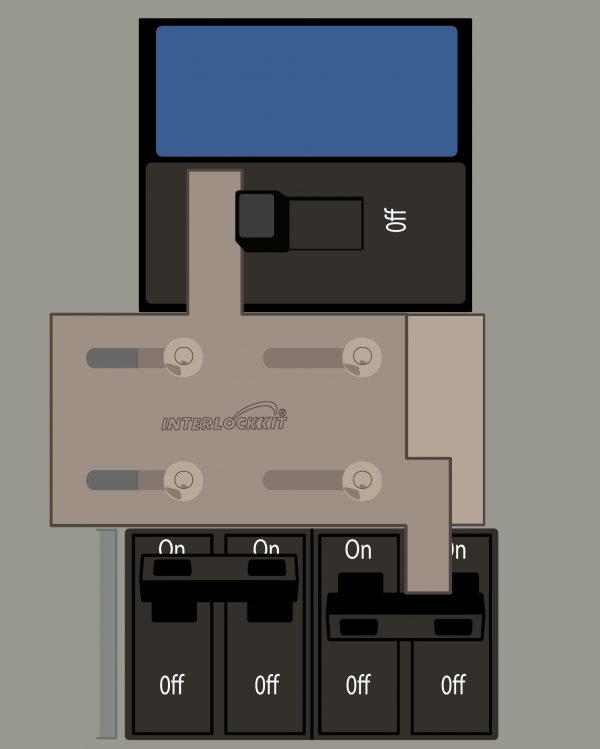

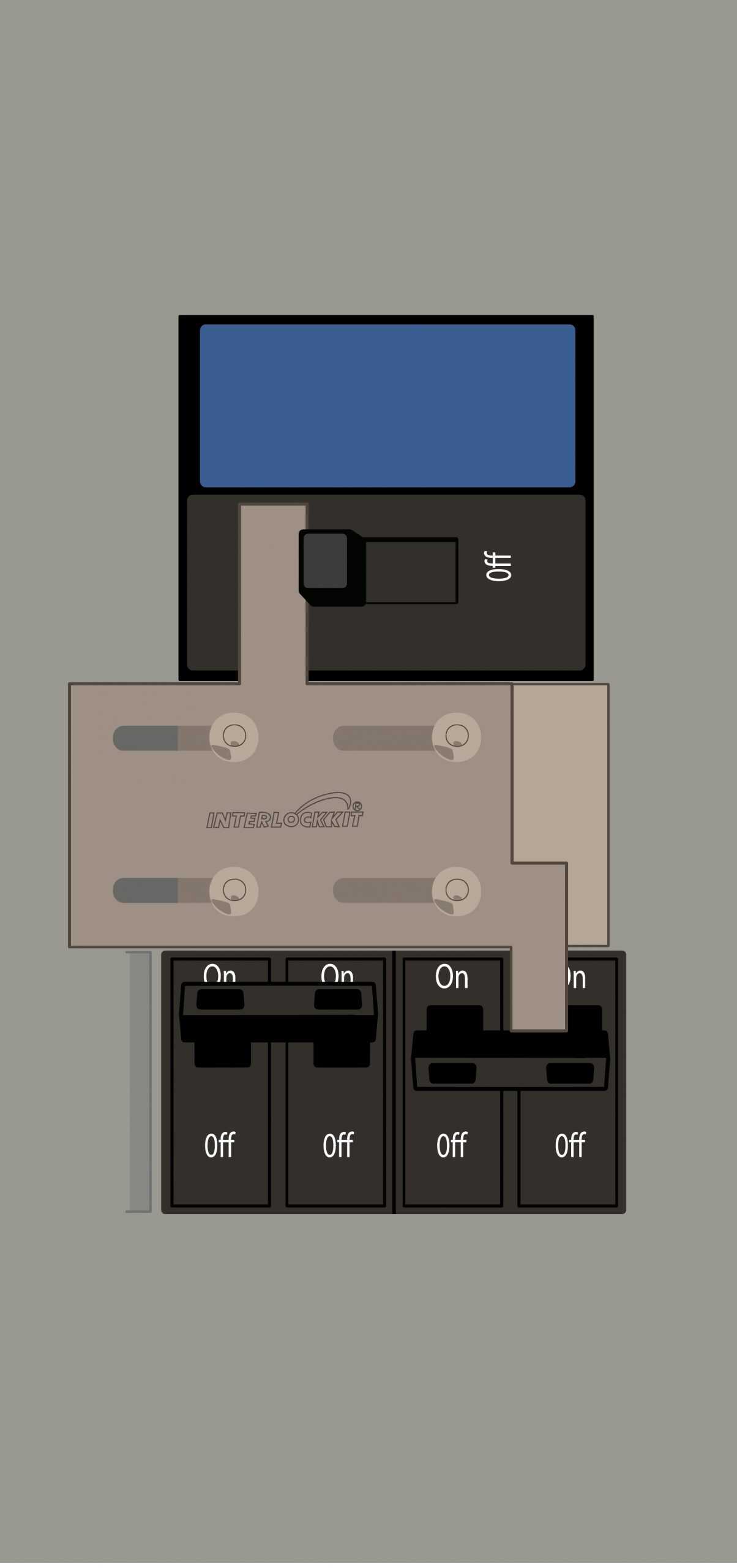

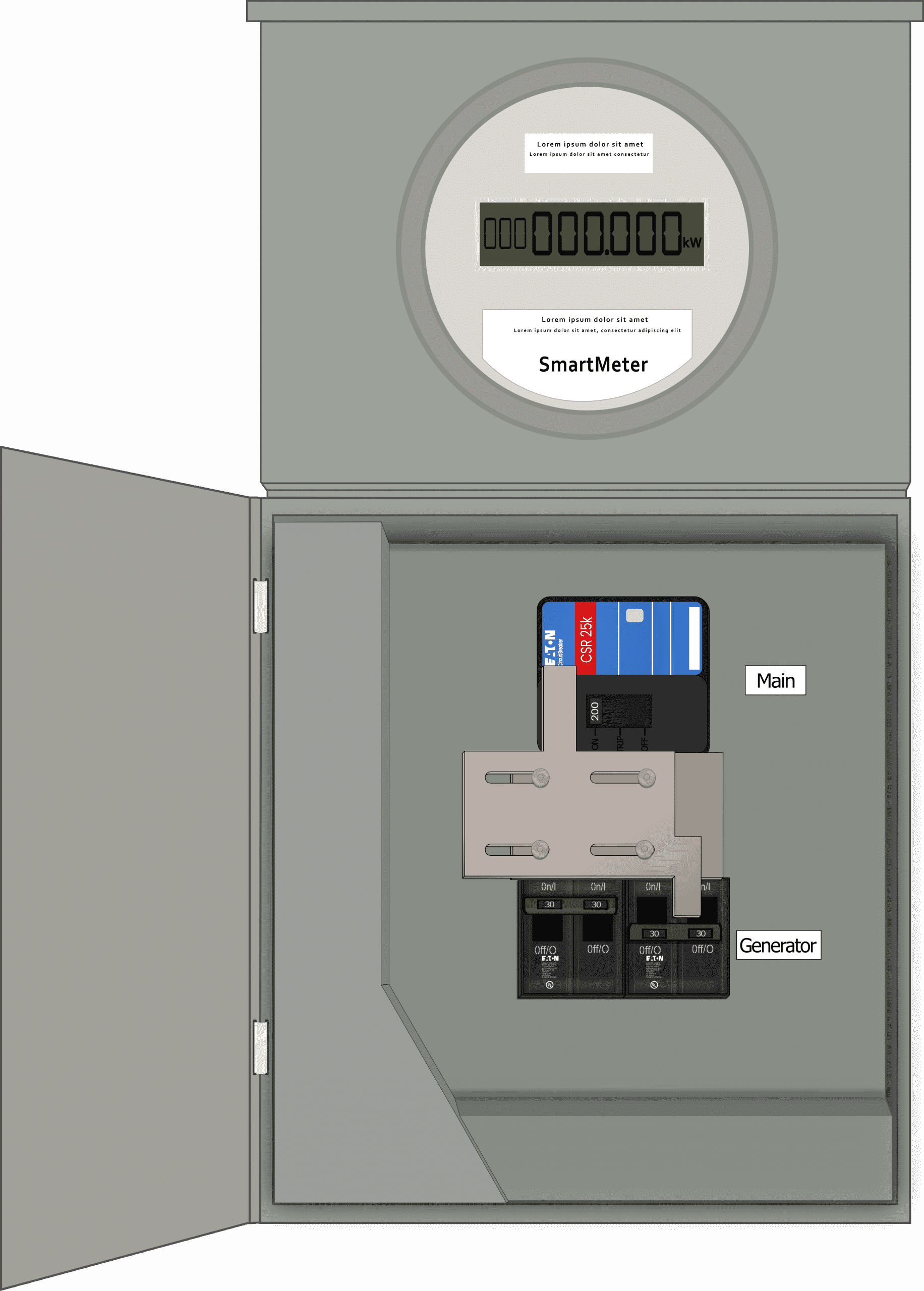

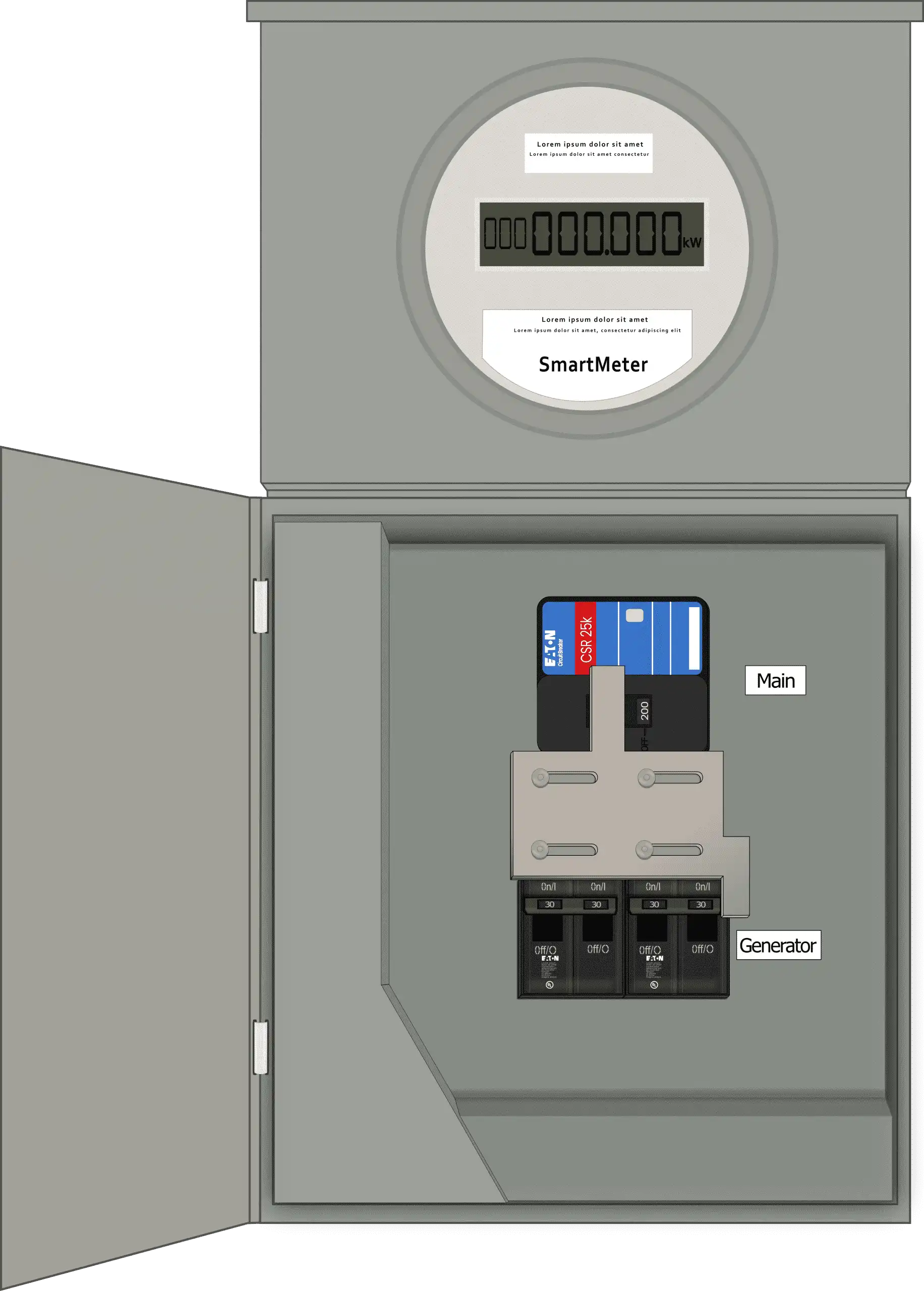

- Install a two pole generator breaker in the two spaces on the two breaker locations to the right, below the main
- Page four of the installation instructions includes a list of contents included in Kit K-6210
|Catalog #:|| |
MBT48B125BTS, MBT48B125BTSBL, MBT48B200BSAP, MBT48B200BTS – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!
