Interlock Kit K-6010

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

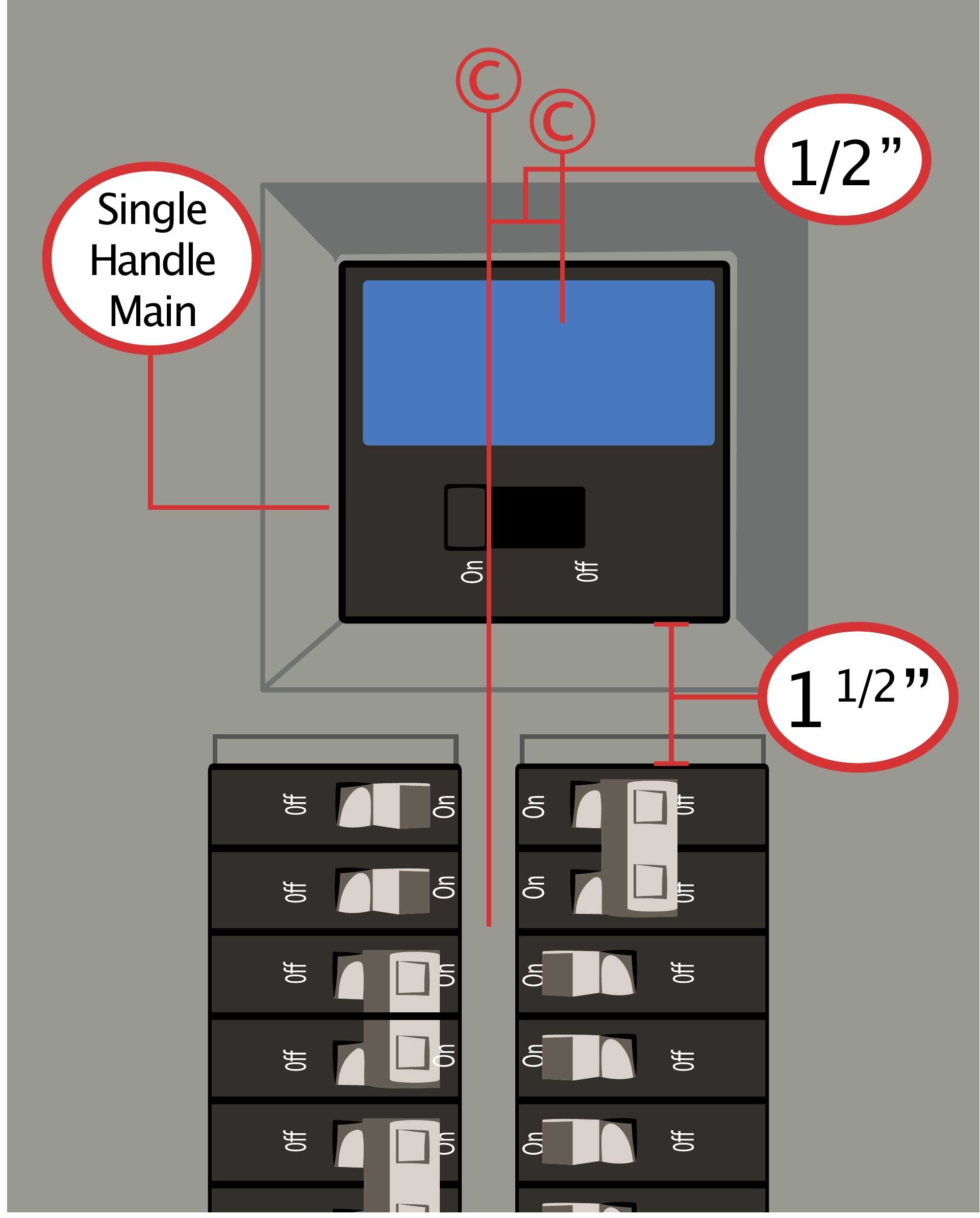

• Space between breaker columns: 1/2"
• Gap between main breaker and columns below, is: 1 1/2" approximately
• 150-200 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF

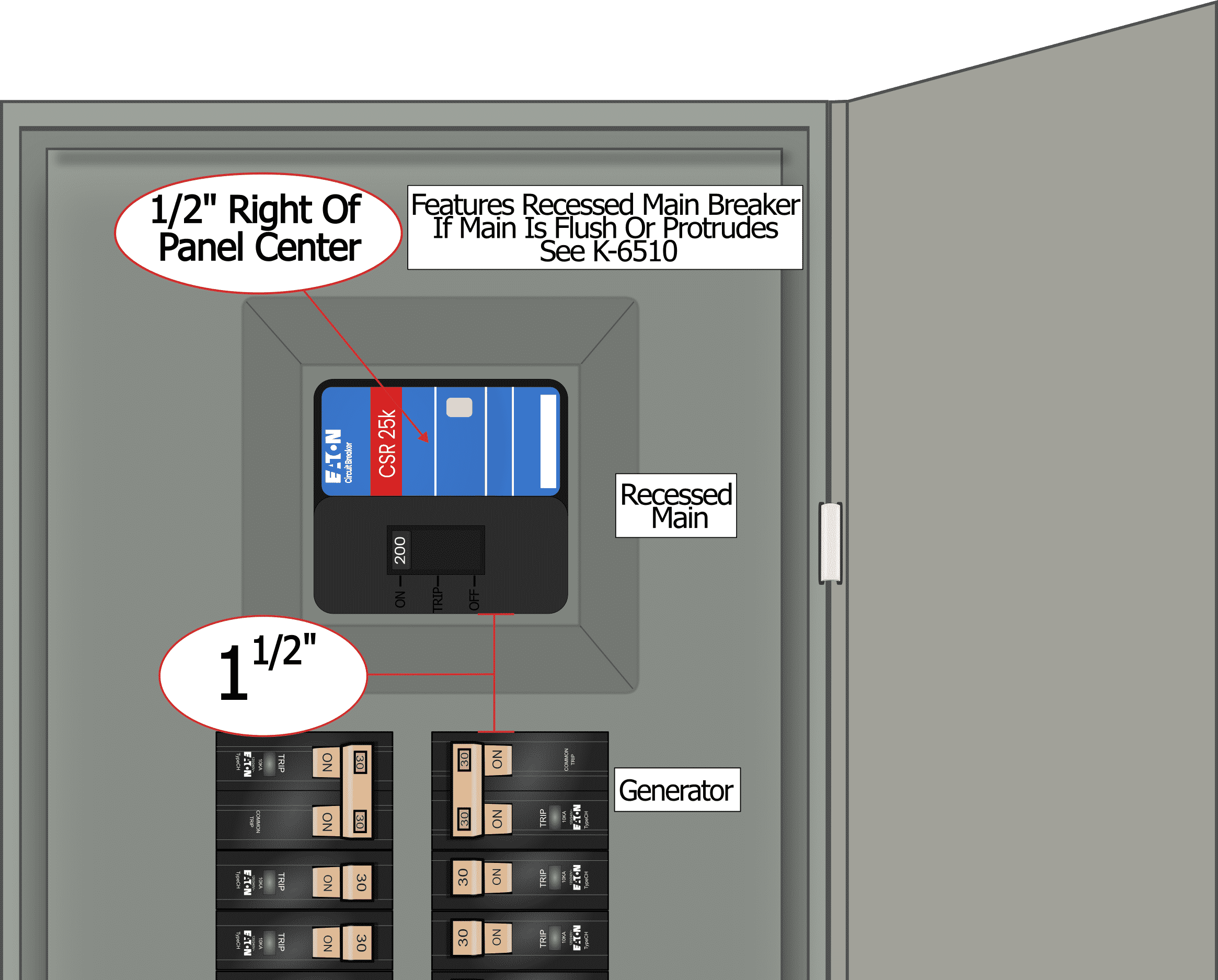

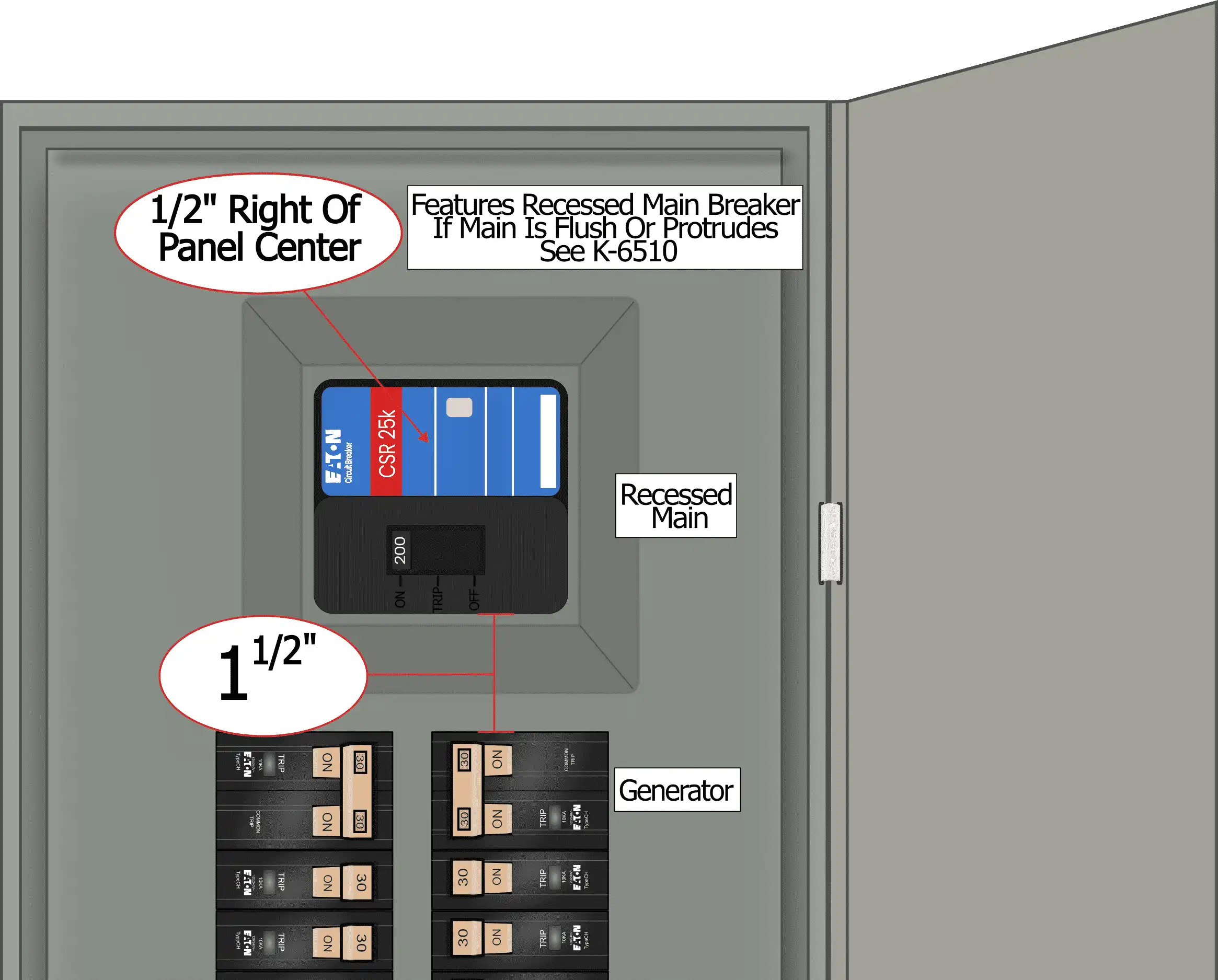

• Main breaker sits offset from the center: 1/2" to the right
• Compatible with CH breakers

Recommendations

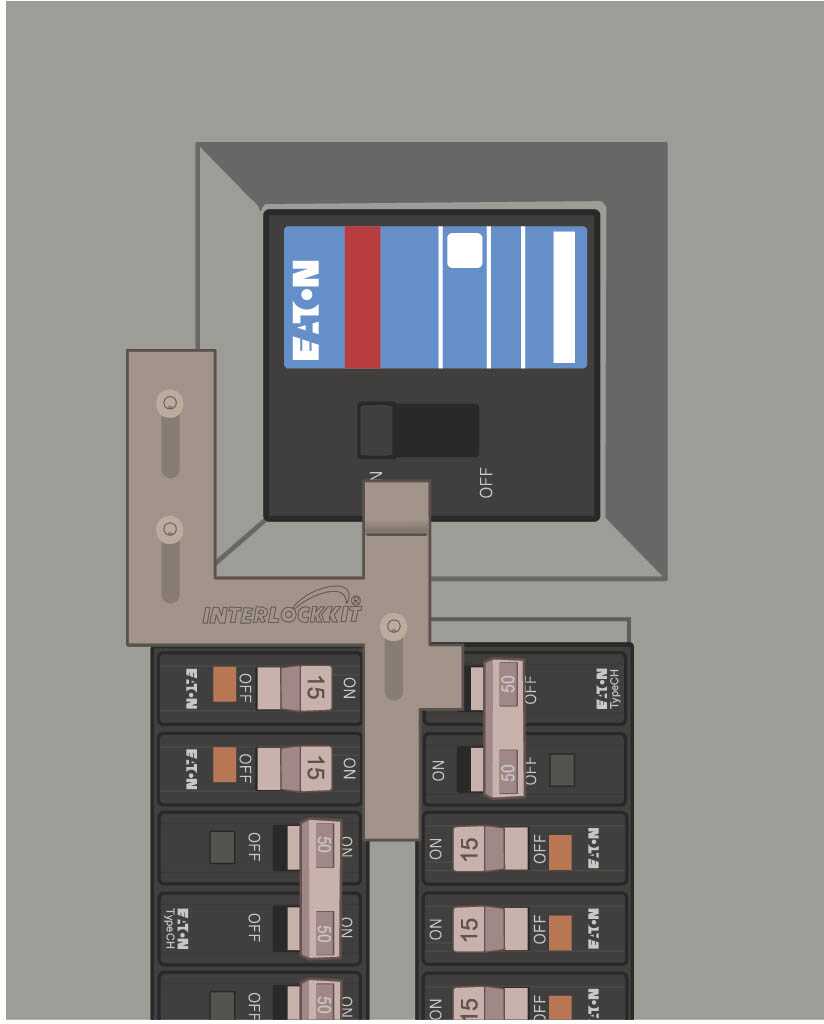

• Install a two pole generator breaker at the top of the right column: spaces 2 & 4
• Page four of the installation instructions includes a list of contents included in Kit K-6010

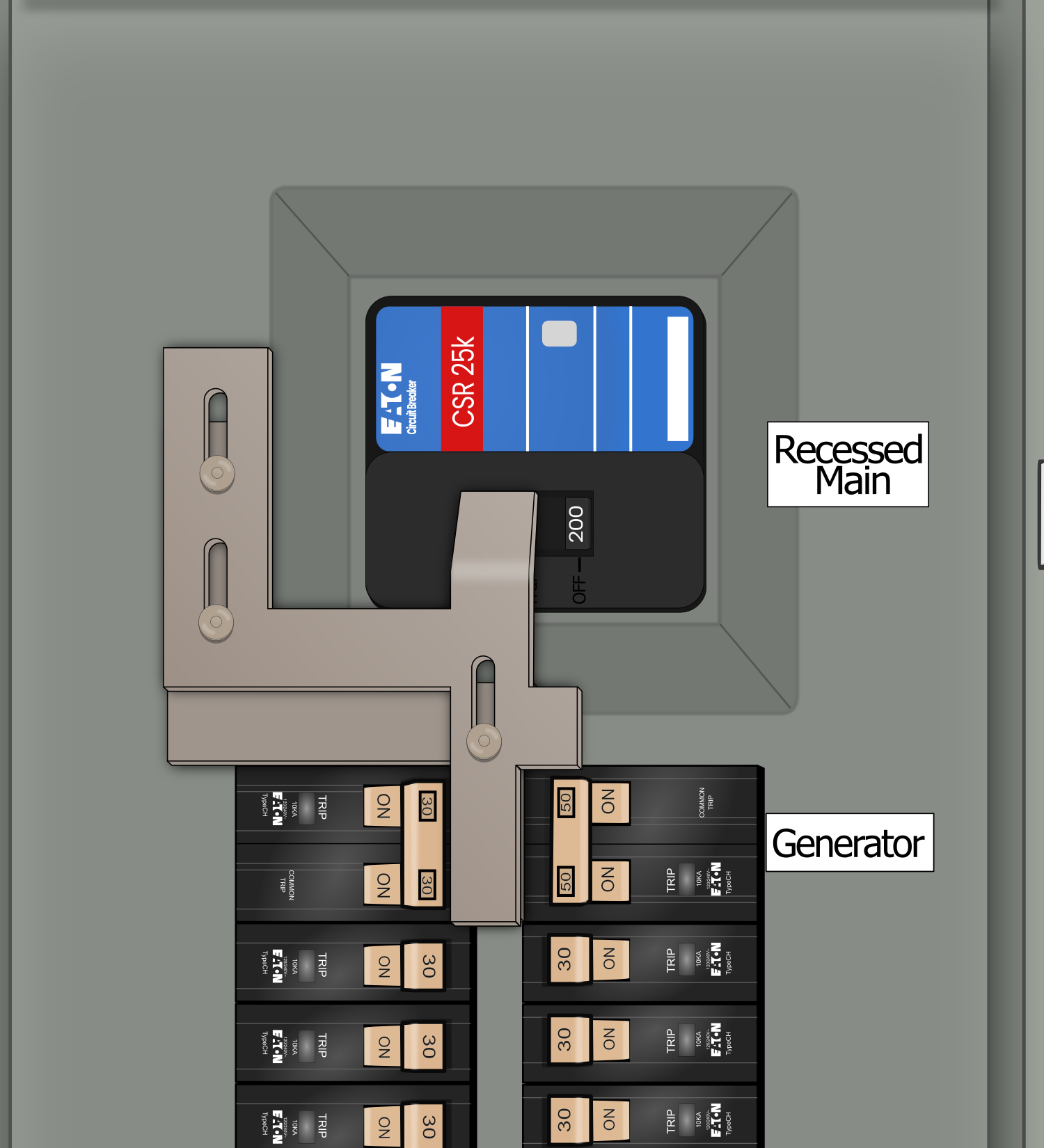

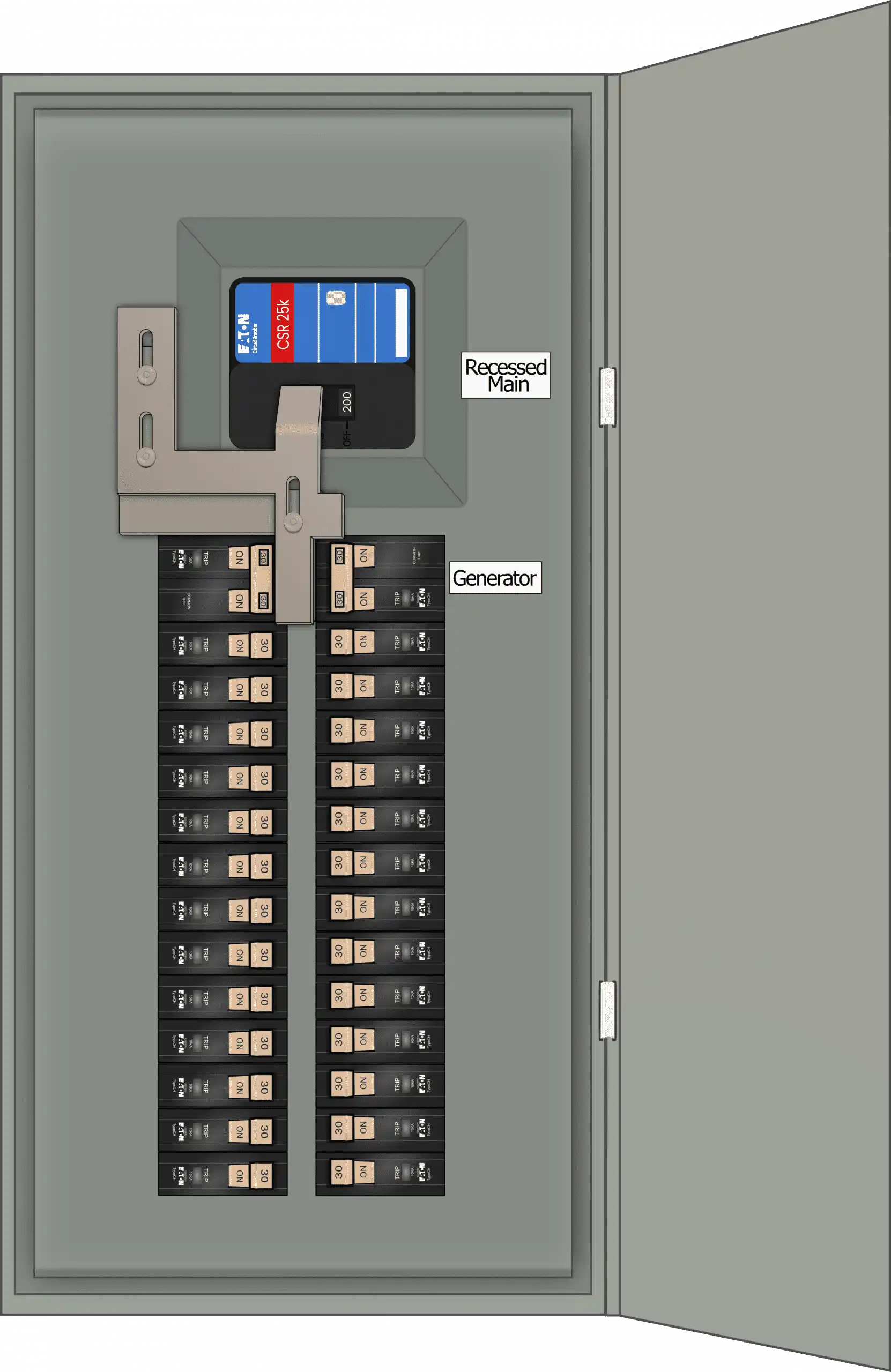

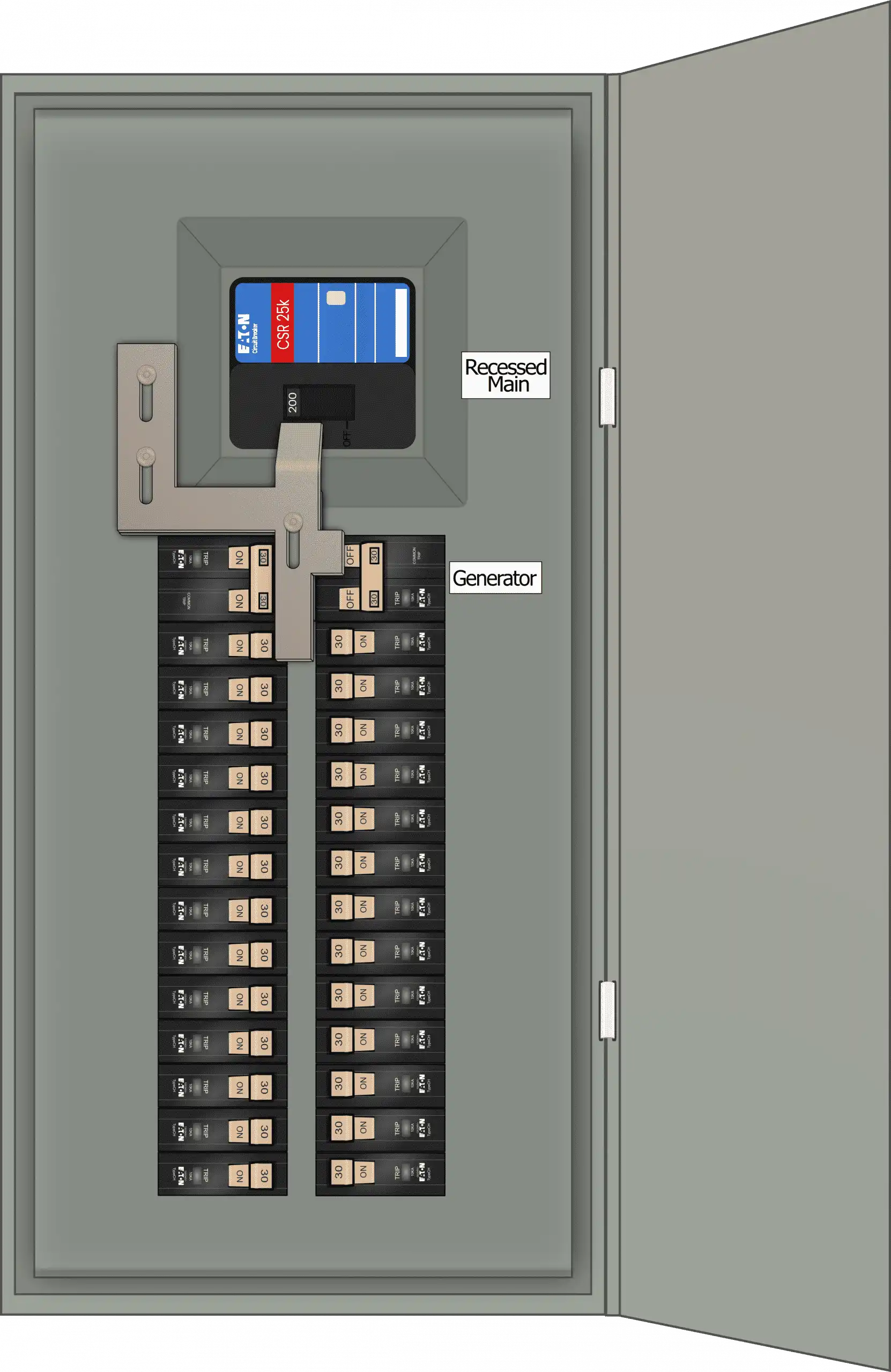

The main breaker will be slightly recessed into the panel cover with this EATON / Cutler Hammer panel configuration.

Kit Installation Instructions
