Interlock Kit K-6410

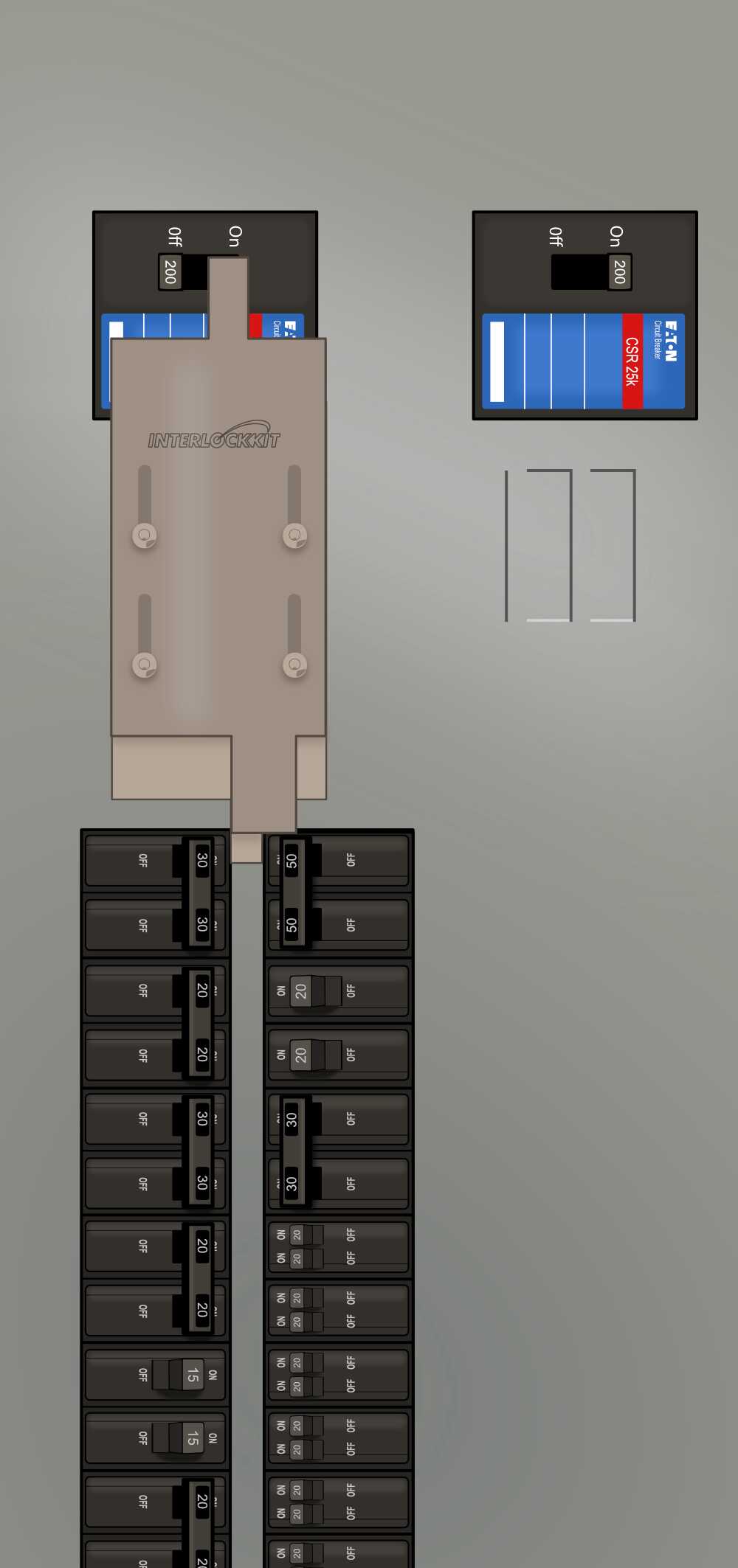

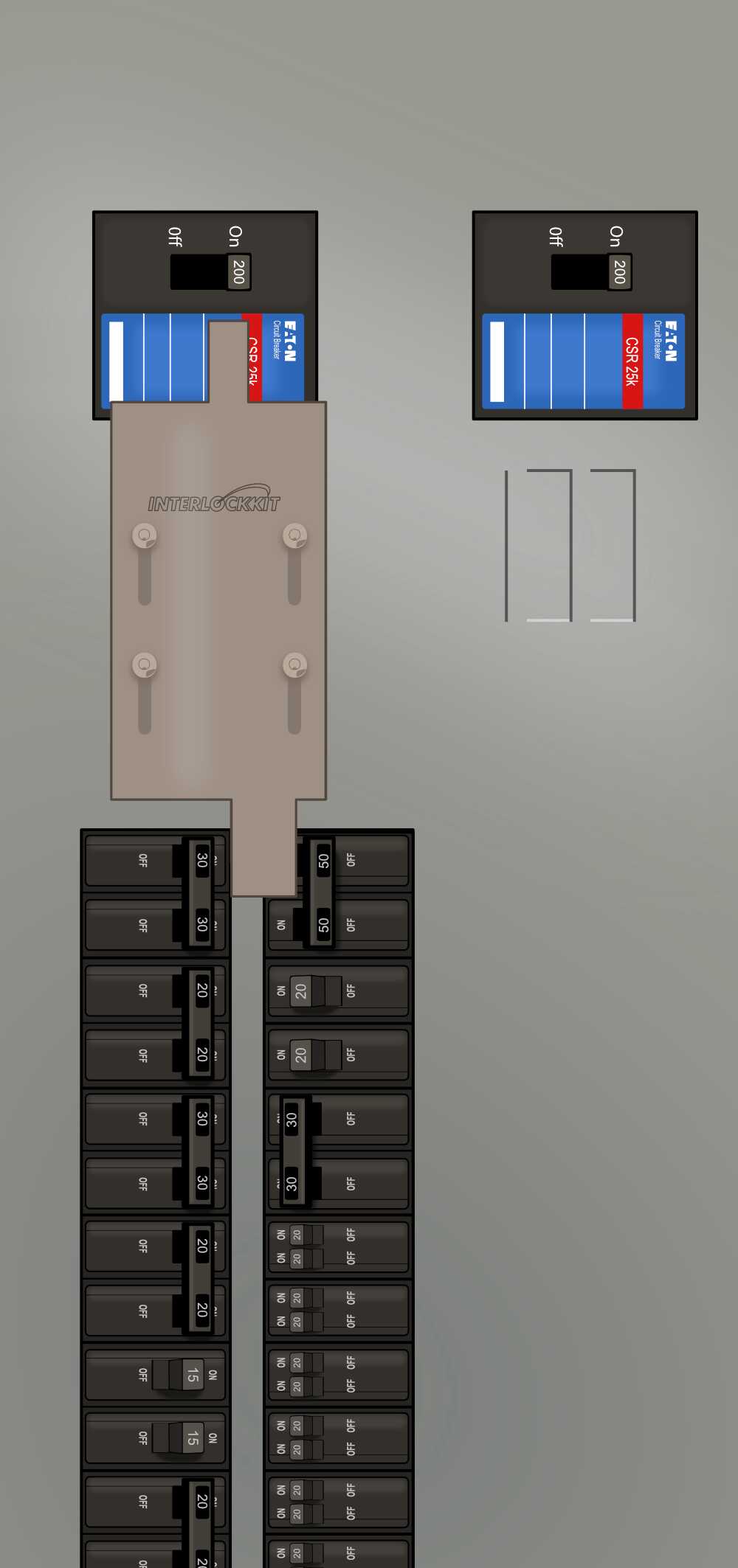

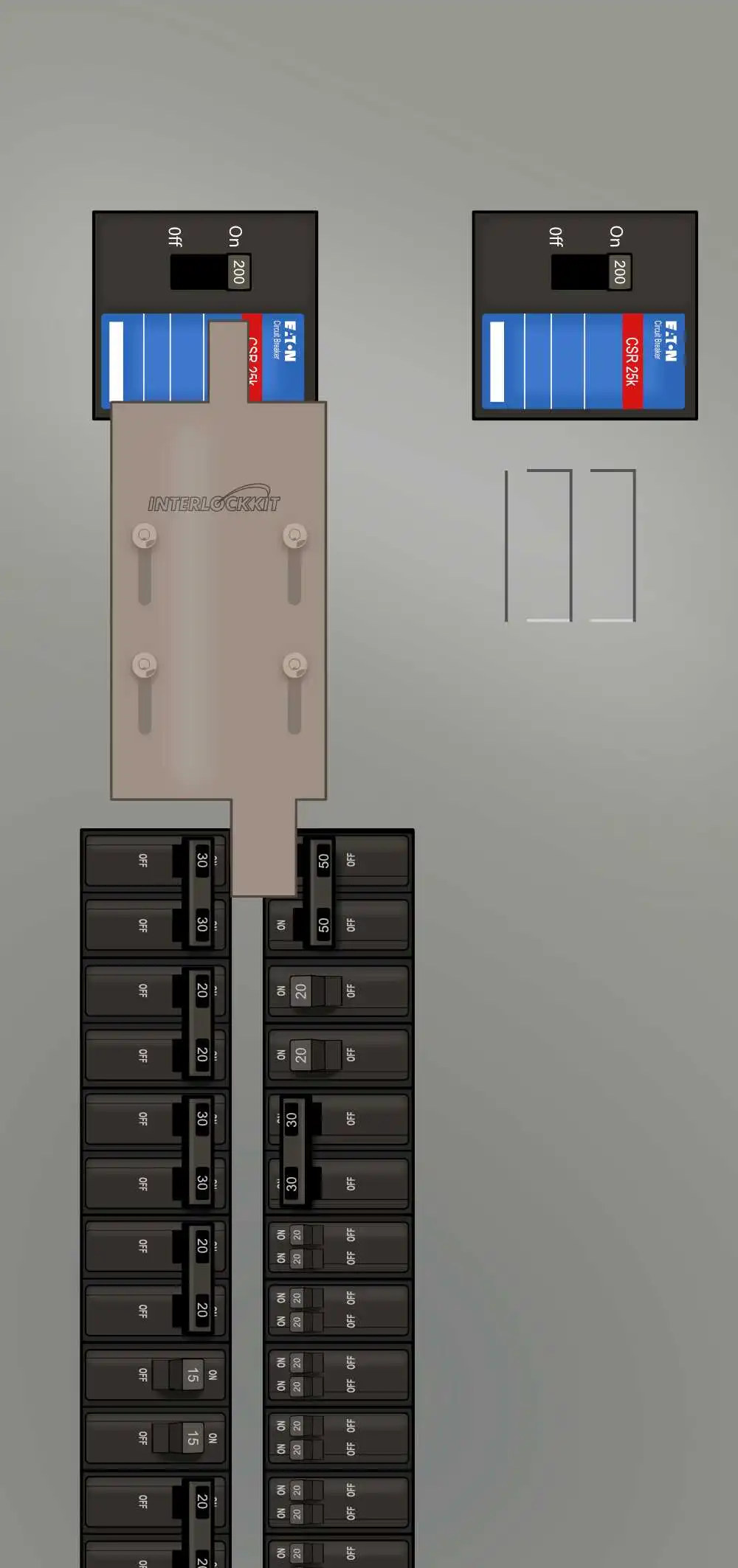

This Kit performs like a manual transfer switch for Cutler Hammer/EATON electrical panels with the following features:
- Space between breaker columns: 1/2"

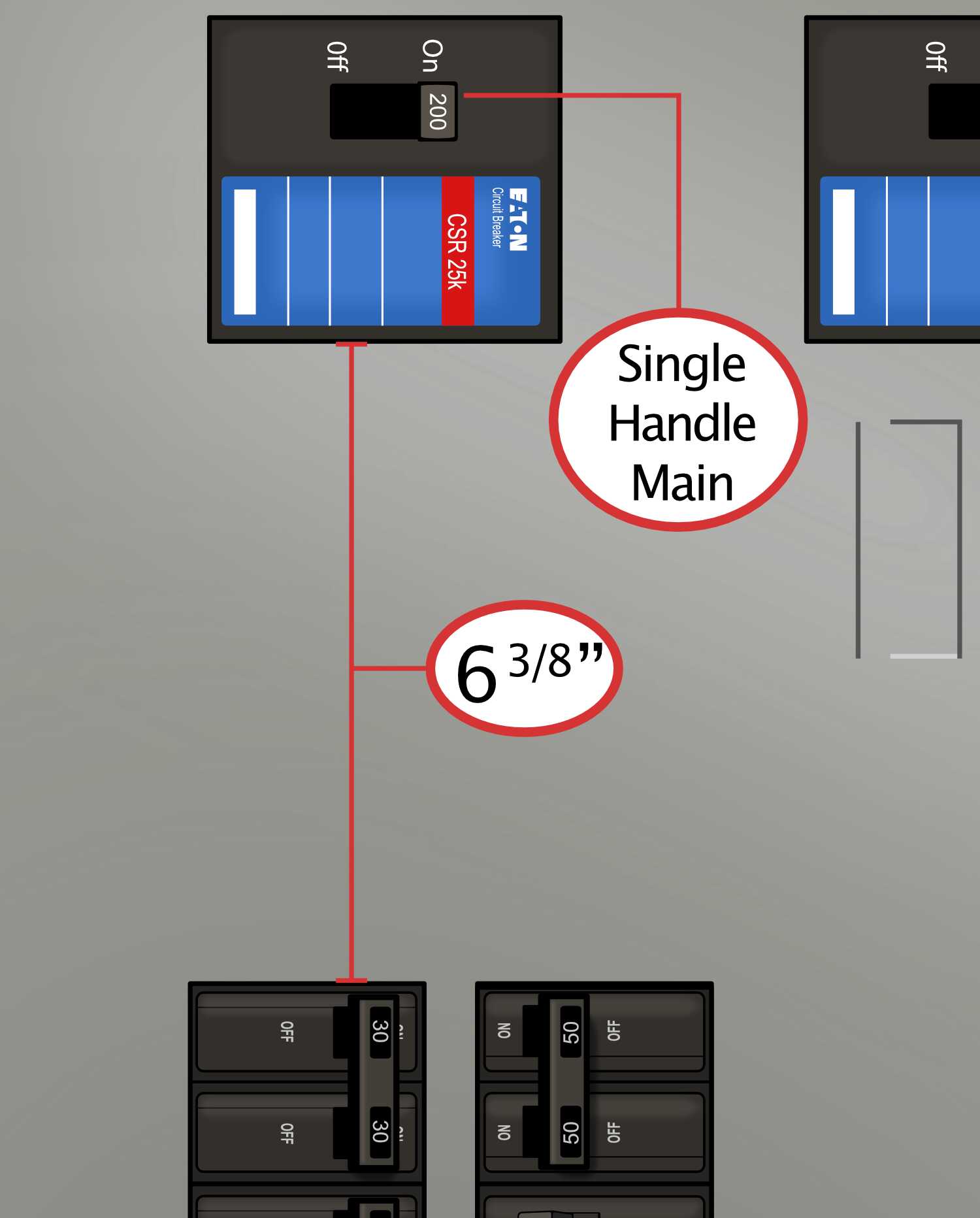

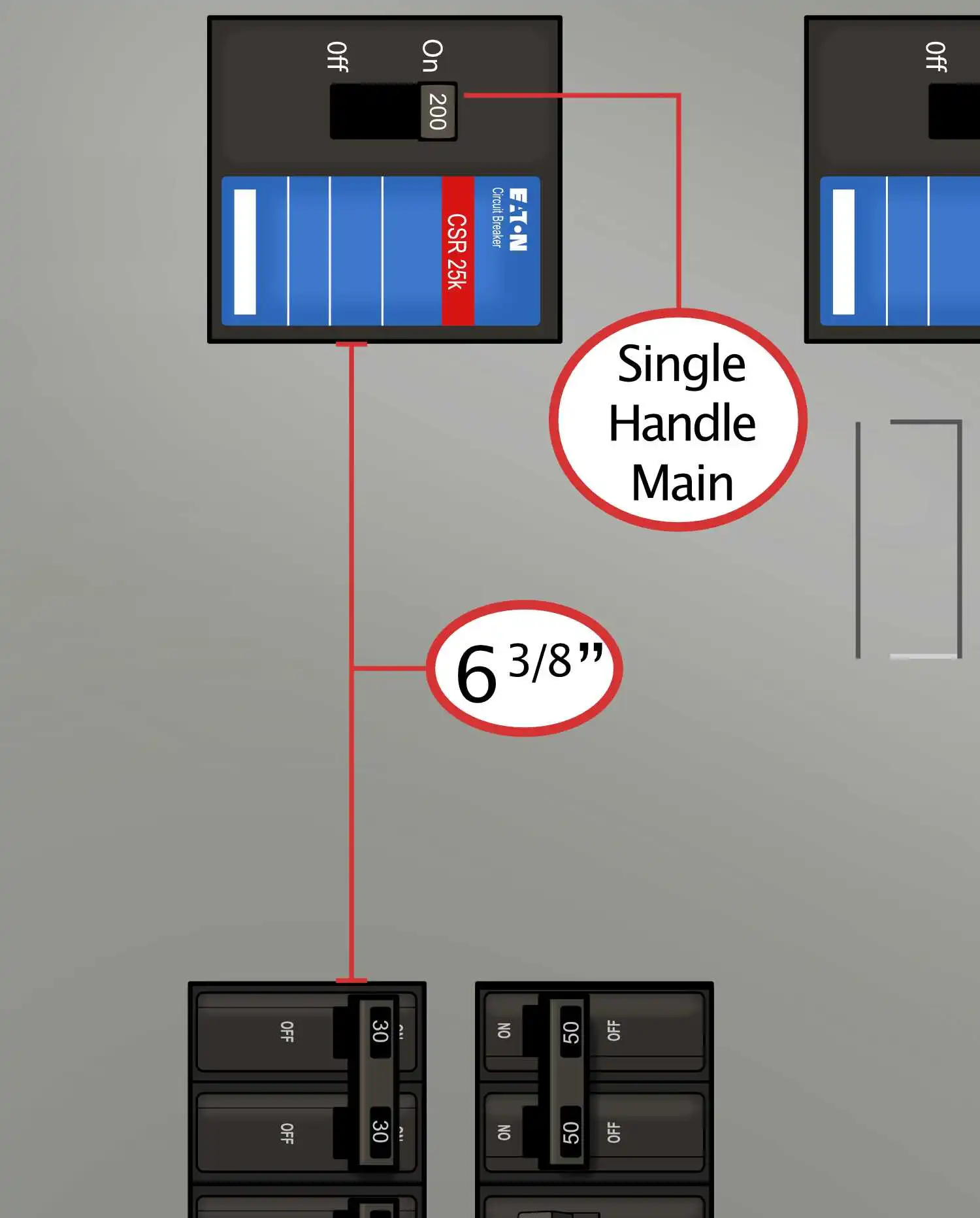

- Gap between the main breaker and columns below, is: 6 3/8 "
- 200-400 amp main breaker panel
- Main breaker toggle switch: Horizontal (left-right) throw direction ON & OFF
- Main breaker sits offset from the center: 1/2 " to the left
- Compatible with: BR type breakers
- Install a two pole generator breaker at the top of the right breaker column: spaces 2 & 4
- Page four of the installation instructions includes a list of contents included in Kit K-6410
Modified versions of this Interlock Kit exist, see: K-6410M. Call (804)726-2448 to place and order for K-6410
