Interlock Kit K-6112 | Interlock Kit

This Kit performs like a manual transfer switch for EATON / Cutler Hammer electrical panels with the following features:

• Space between breaker columns: 1/2″

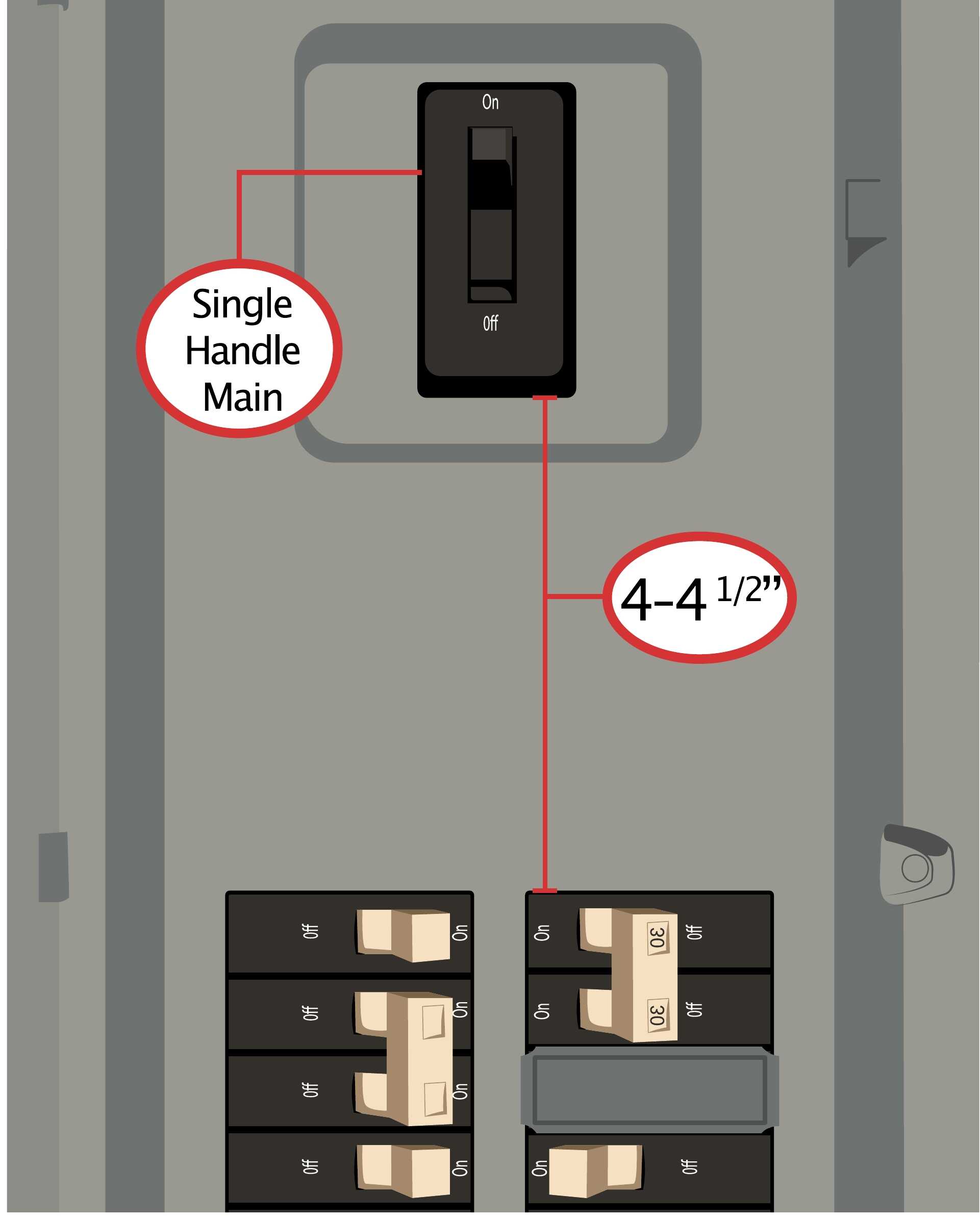

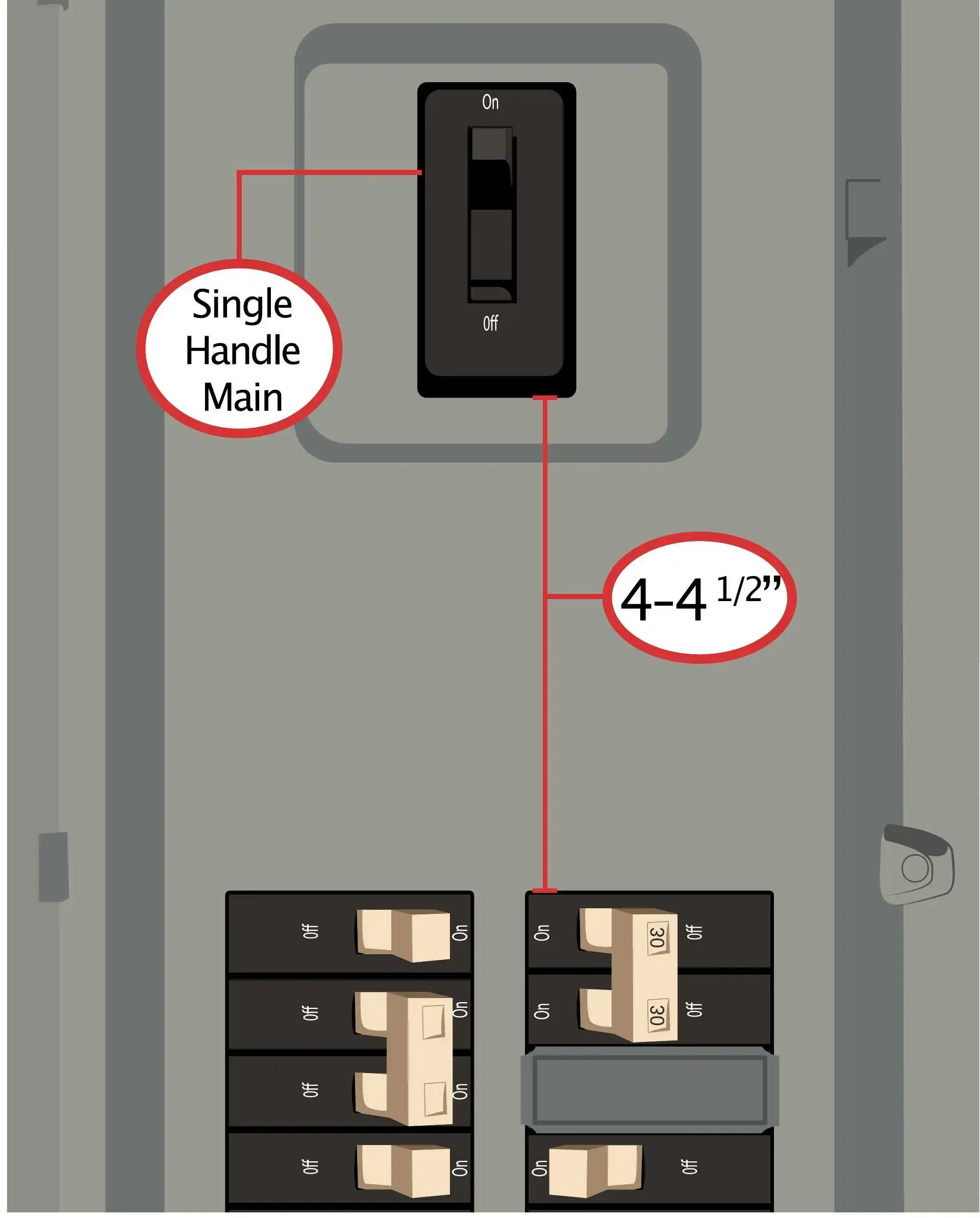

• Gap between main breaker and breaker columns below: 4 - 4 1/2"
• 150-200 amp main breaker
• Main breaker toggle action: Vertical (up-down) throw direction ON & OFF
• Main breaker is centered over both breaker columns below
• Compatible with CH breakers

Recommendations:

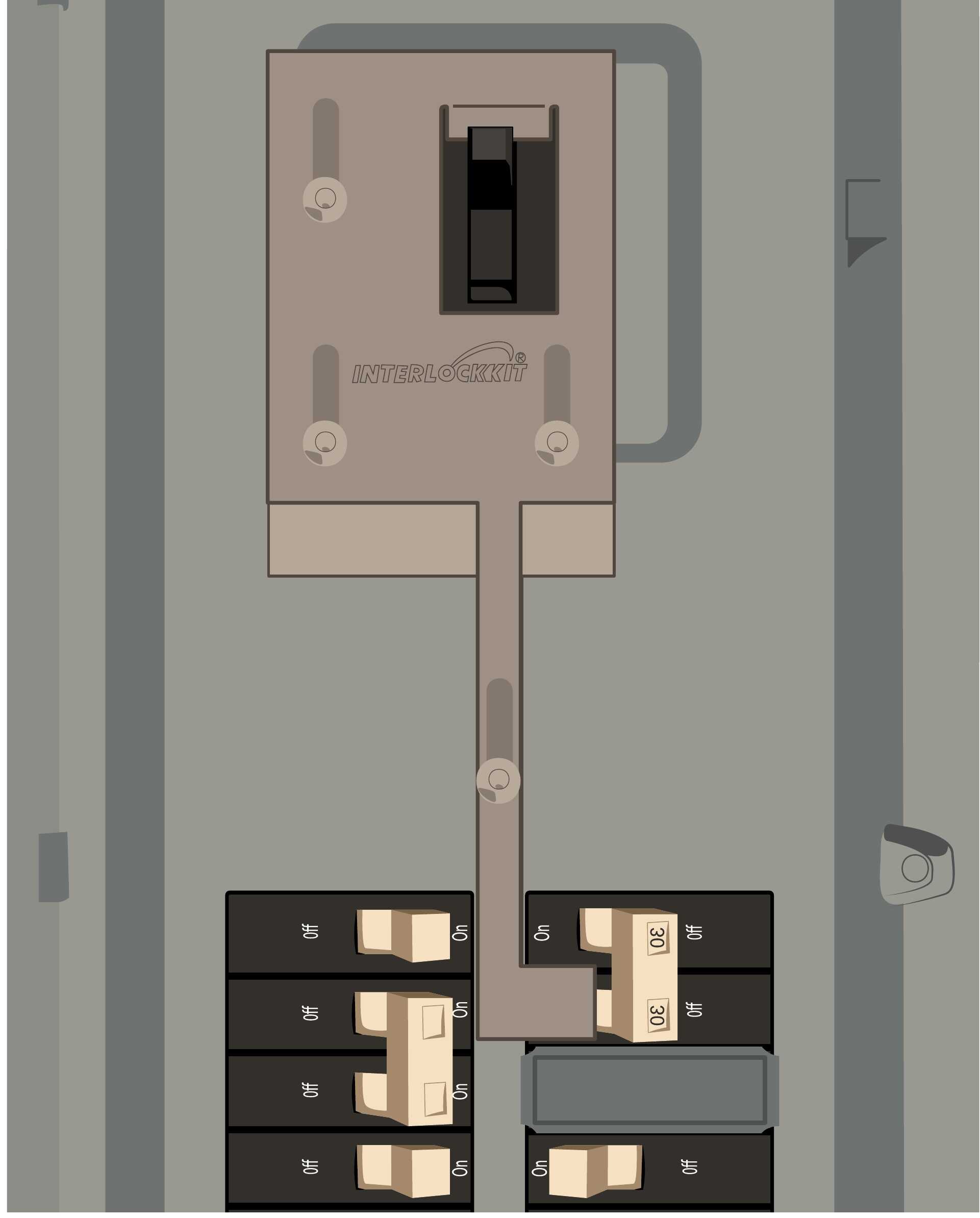

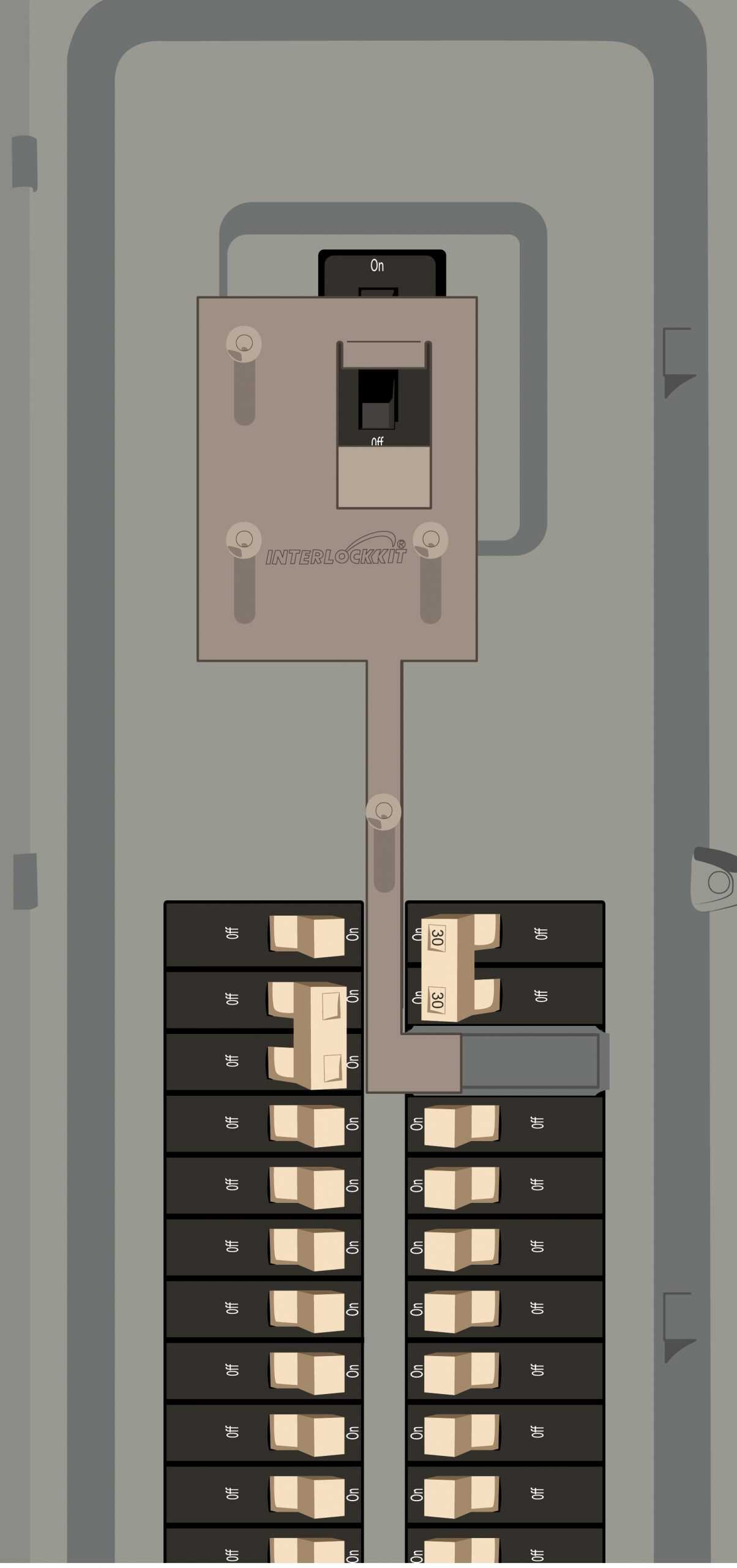

• install a two pole generator breaker at the top of the right column: spaces 2 & 4
• Page four of the installation instructions includes a list of contents included in Kit K-6112

Modified versions of this Interlock Kit exist, see: K-6110, K-6115
