Interlock Kit K-9410

Name: Interlock Kit K-9410
SKU: K-9410
Availability: InStock

$149.95

20 in stock

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

SKU: K-9410 Categories: Cutler Hammer/EATON, Gould, ITE, Murray, Siemens, Square D

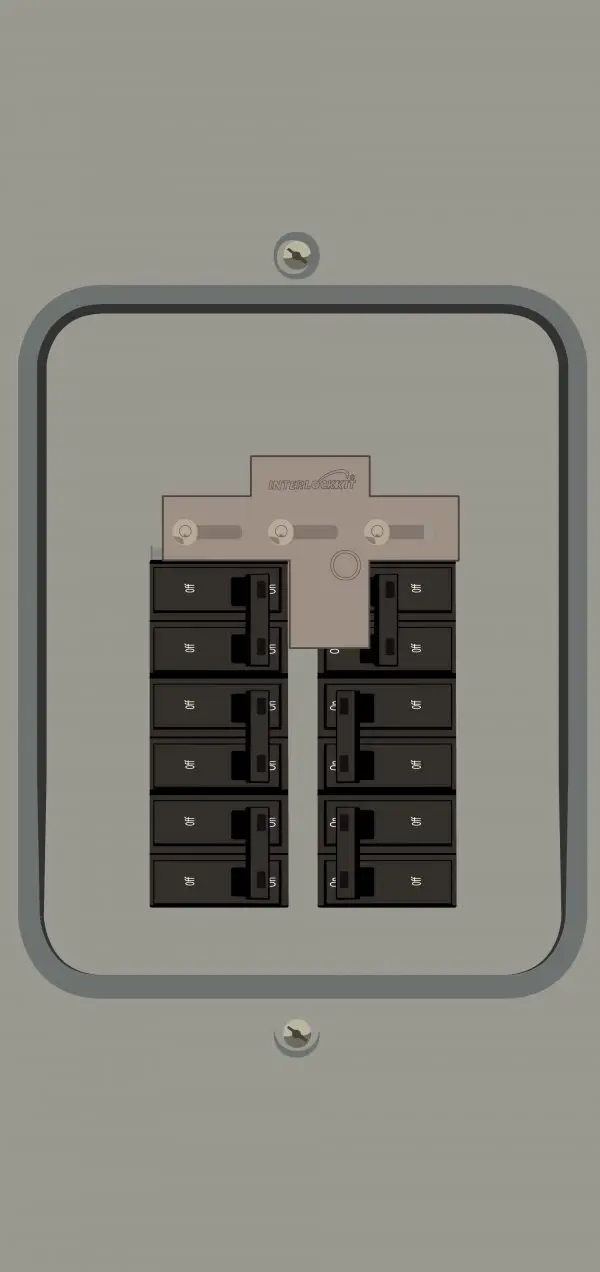

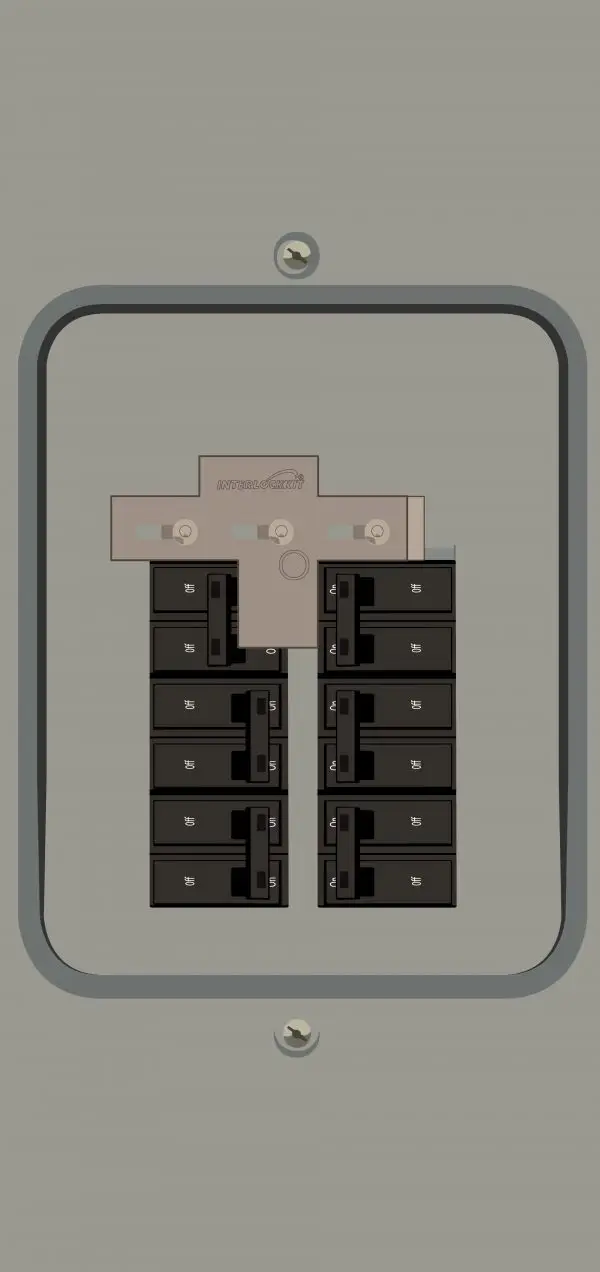

This kit mounts to Cutler Hammer / Square D / Siemens electrical panels with the following features:

Space between breaker columns: 1/2"
No gap

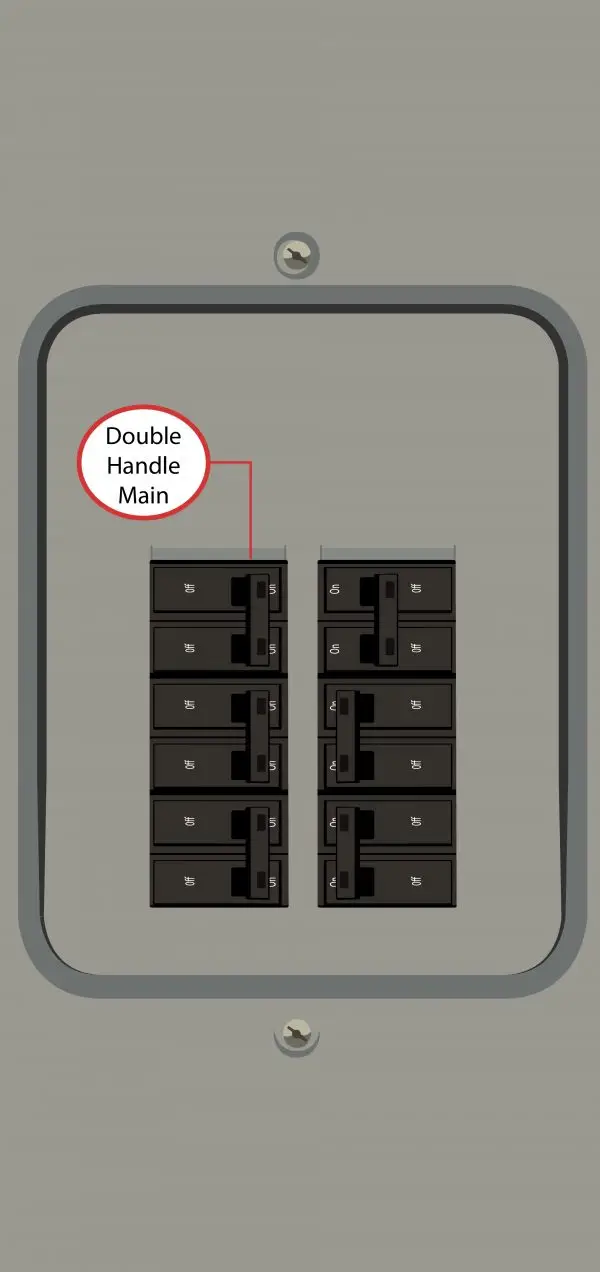

100-125 amp two pole main breaker
Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
Main breaker sits directly on top of the breaker stack in the right or left column
Compatible with BR, QO, Homeline, & Siemens style breakers

Requirements:

Install a two pole generator breaker at the top of the opposite column from the main breaker

Interlock Kits similar to this kit include: K-9010, K-9011, K-9210, & K-9310

Additional information

Weight	1 lbs
Catalog #:	BRP12L125V24, HOM612L100RBCP, TLM1212CCUP, BRP16B100, BRP12B100, G2020MB1100, B20-20 FN,SN 100 amps, LC130DC #'s may not be listed here yet. Use the details listed in "Description" to help match your kit!

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!
