Interlock Kit K-7110M | Interlock Kit

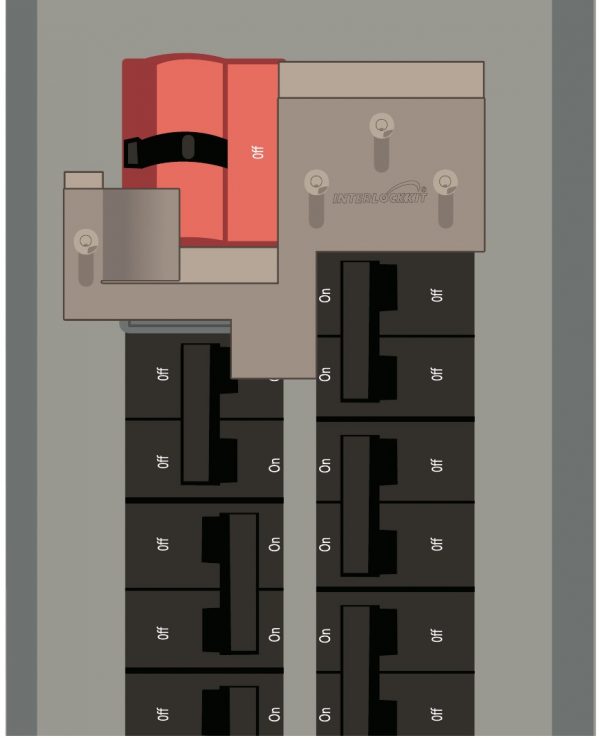

This Interlock Kit performs like a manual transfer switch for Crouse-Hinds / Murray electrical panels with the following features:

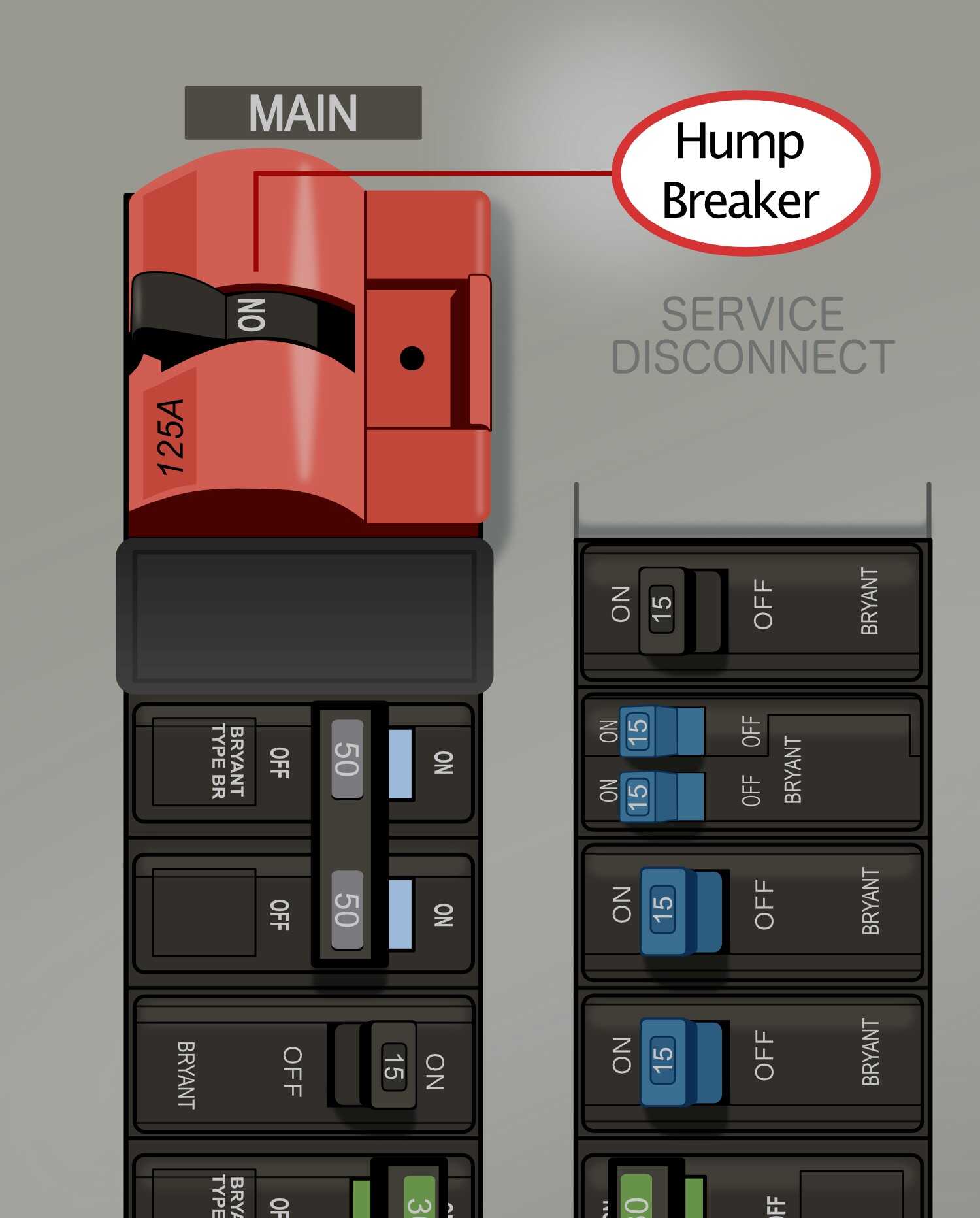

• This Kit works with the existing humpback style main breaker!

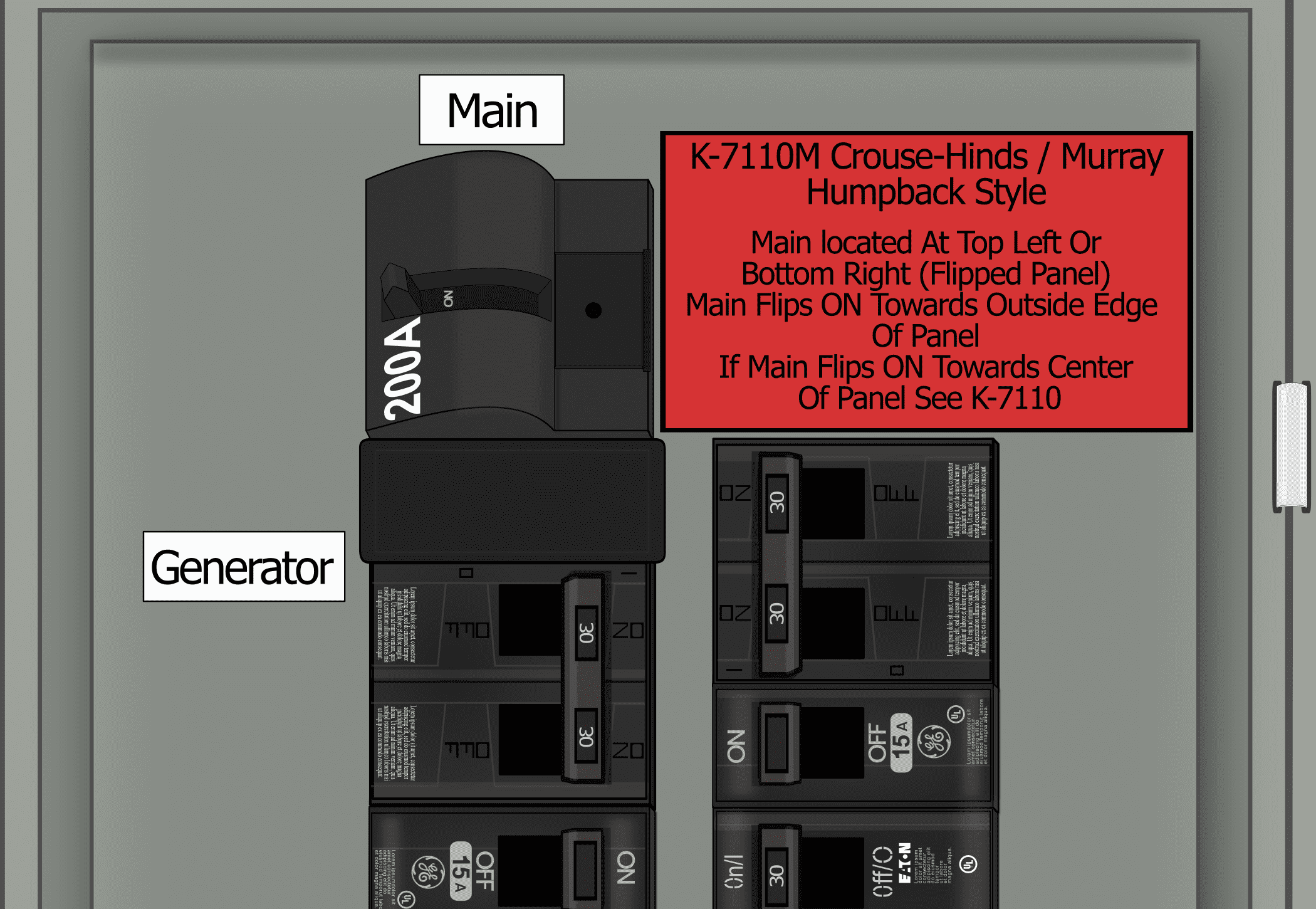

• "M" stands for modified. The main breaker engages ON to the left in this scenario
• Space between breaker columns: 1/2"
• No gap
• 100-150 amp two pole hump-back style main breaker
• Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF
• Main breaker sits directly on top of the breaker stack in the left column

Requirements

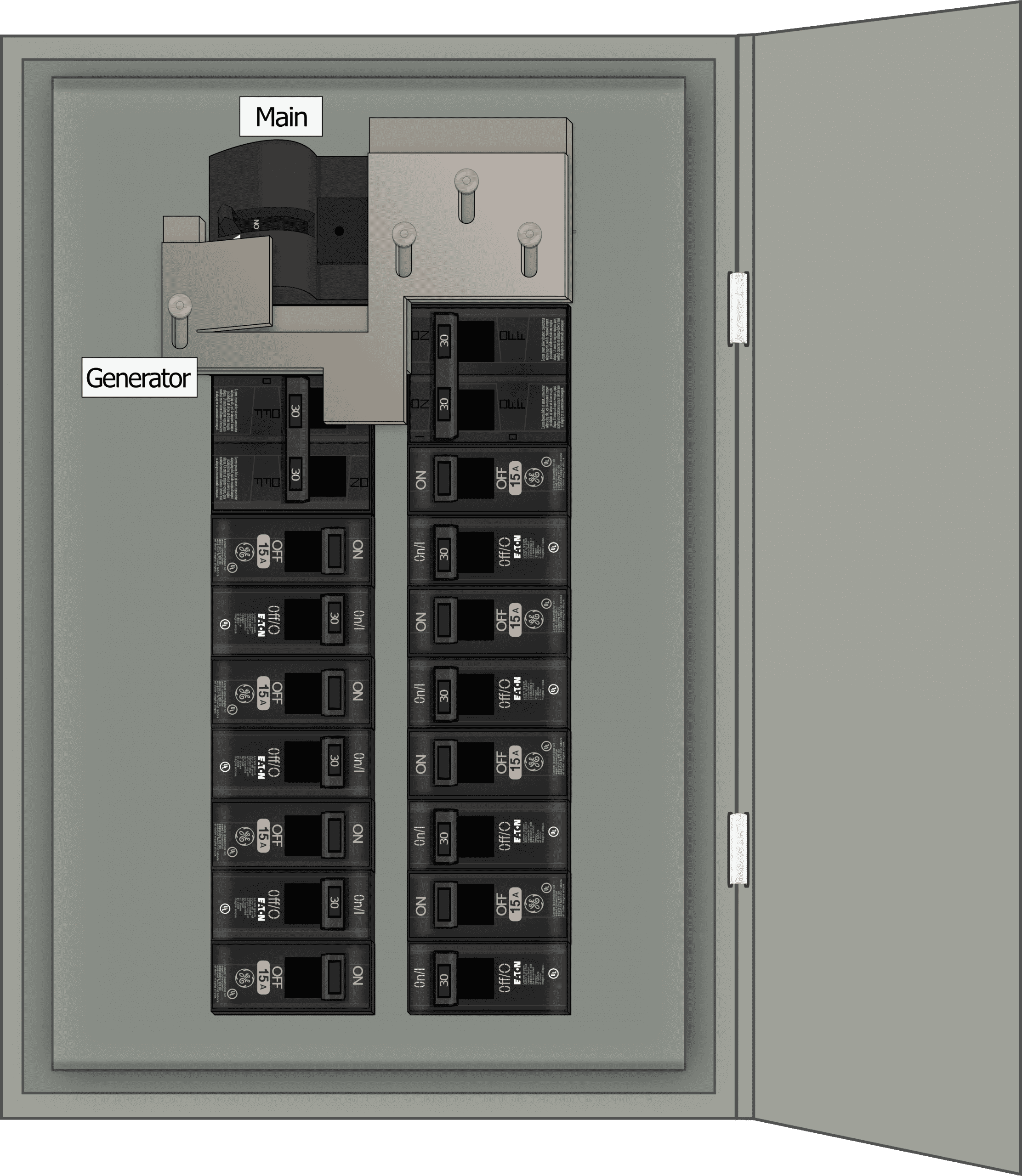

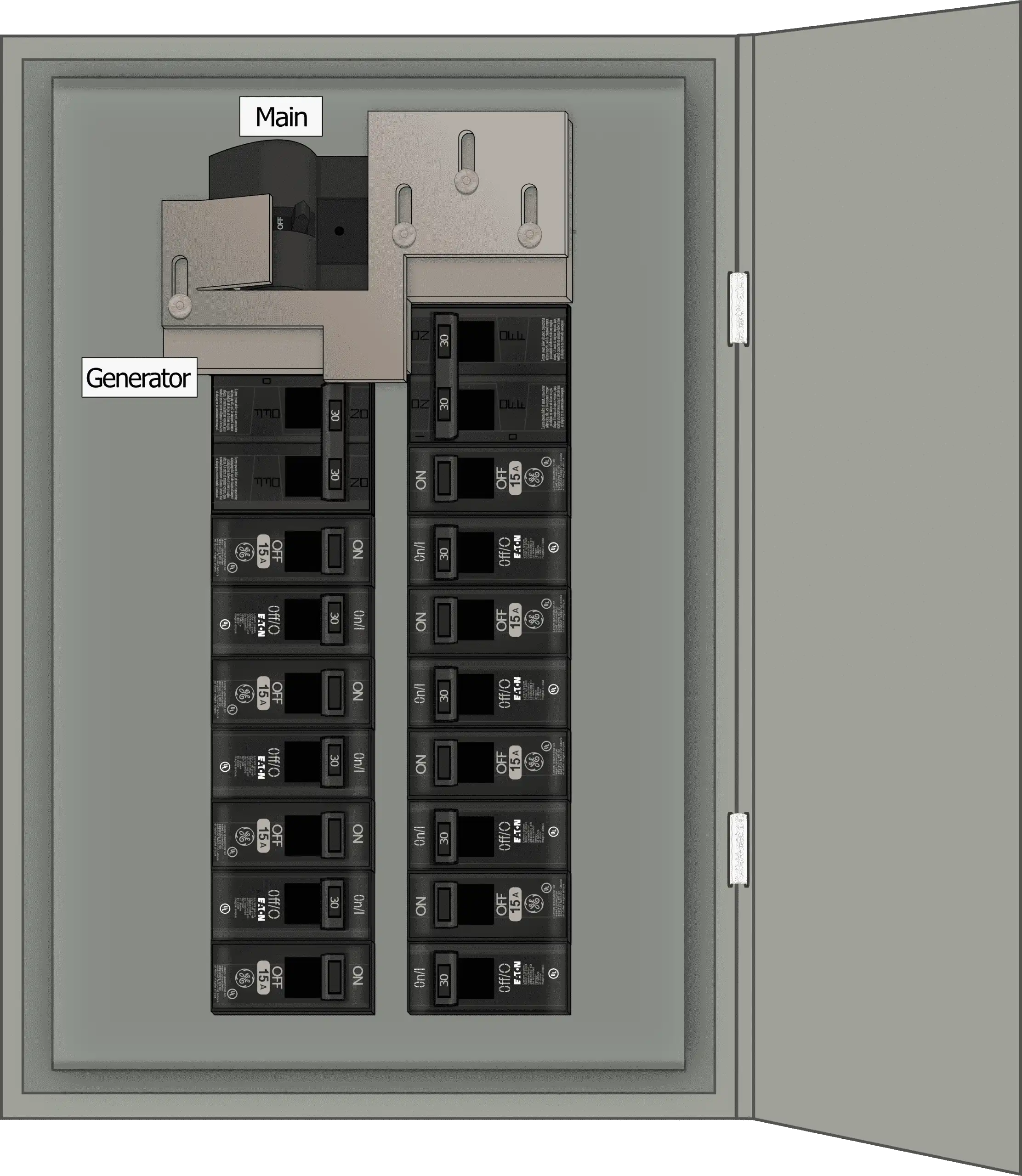

• Install a filler plate directly beneath the main breaker in spaces: 5 and install the generator breaker directly below the filler plate in spaces 7 & 9
• Page four of the installation instructions includes a list of contents for K-7110M
