Interlock Kit K-3010

This Interlock Kit mounts to Bryant electrical panels with the following features:

• Space between breaker columns: 1/2"

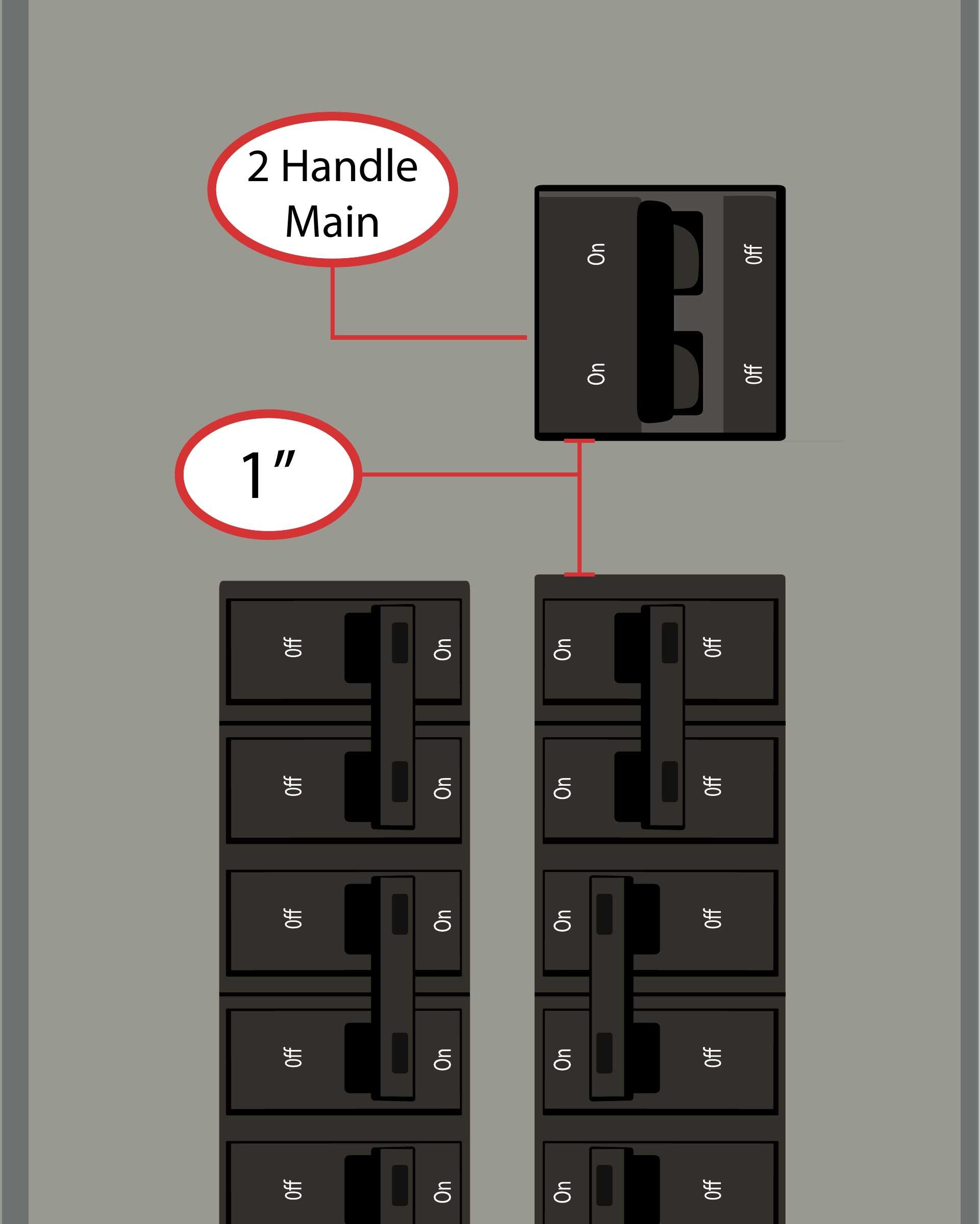

• Gap between the main breaker columns below is: 1"

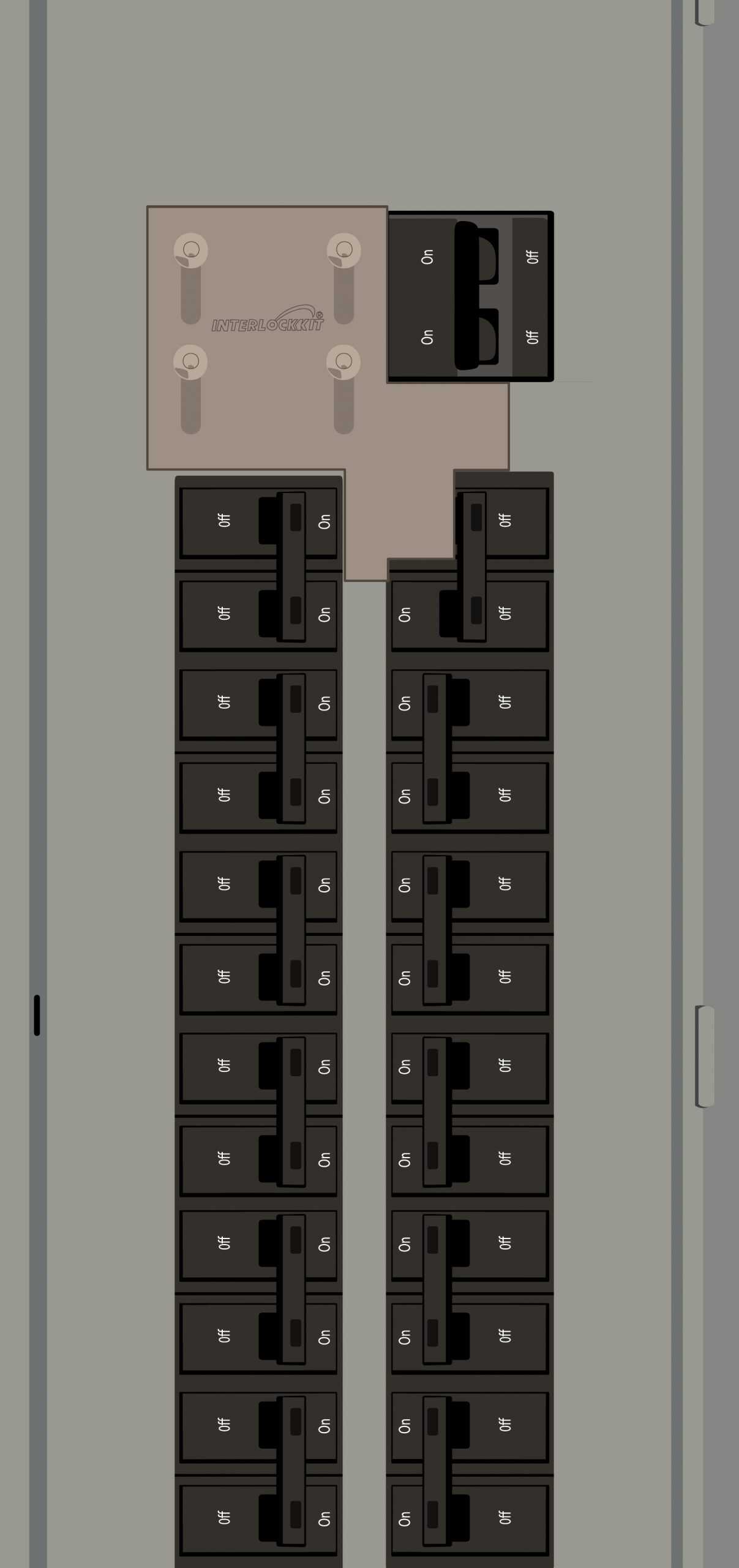

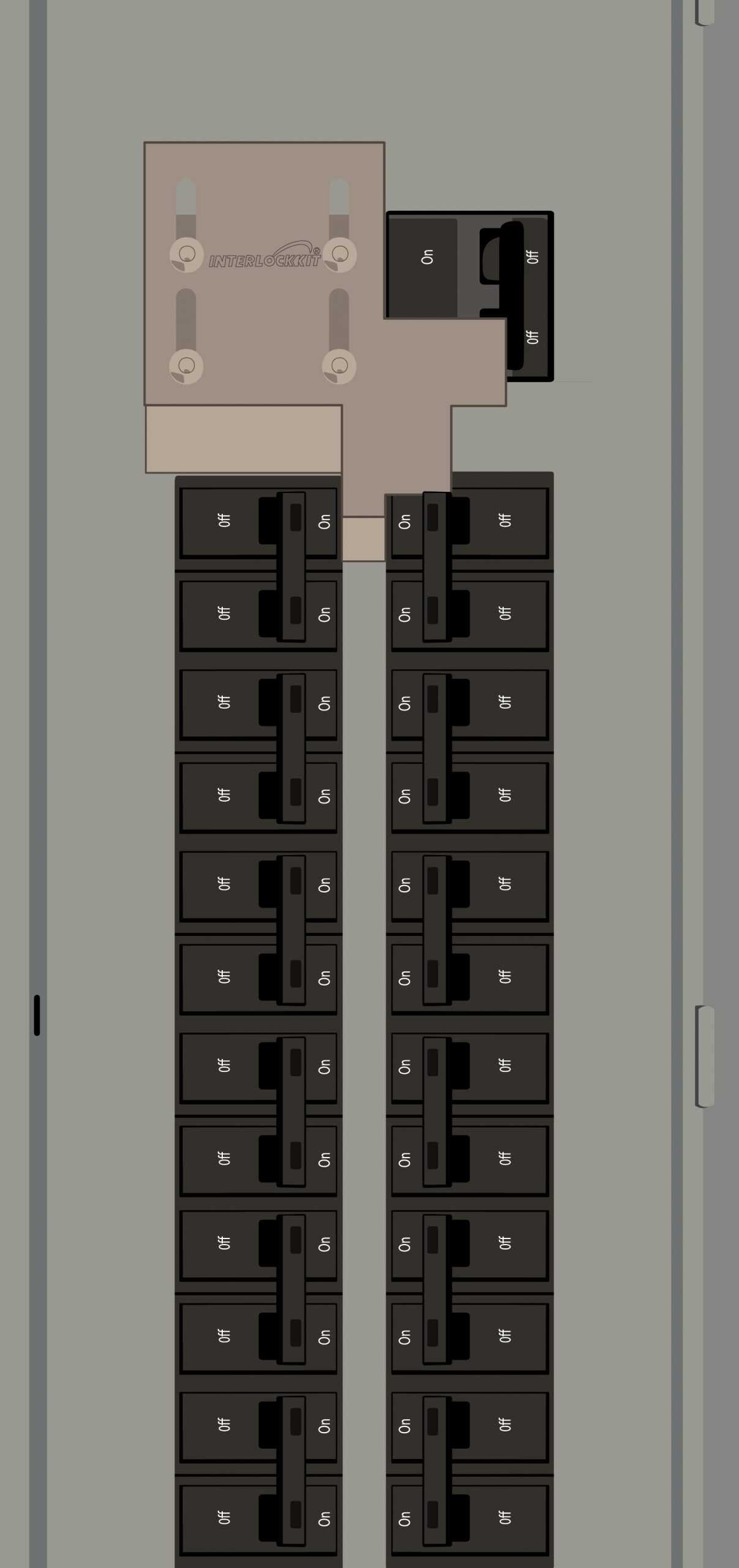

• Install a two pole generator breaker in spaces: 2 & 4 (top two spaces in the right column, directly below the main)
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
• Main breaker is offset from center directly over the right breaker column
• See page four of the installation instructions for more info on the kit contents for Interlock Kit K-3010

Space between breaker columns: ½"; three panel spaces required for this Kit.

Kit Installation Instructions
