The Hidden Component of Your Interlock Kit

When installing an interlock kit to safely connect a portable generator to your home’s electrical panel, most people focus on the major components: the interlock kit, inlet box, and generator breaker. However, one often-overlooked item—the breaker retainer—plays a crucial role in ensuring your system is both safe and code-compliant. Whether you’re a licensed electrician or a knowledgeable DIYer, understanding how breaker retainers work and why they matter is essential for a proper installation.

What Is a Breaker Retainer?

So, what exactly is a breaker retainer? Simply put, it’s a small clip or bracket designed to lock the generator breaker securely into the panel. Not all breakers snap in with the same firmness, and some can even be removed without tools. This becomes an issue when backfeeding power from a generator. The retainer ensures the breaker cannot be accidentally pulled out, jarred loose, or dislodged during use, protecting your home’s electrical system from serious risks.

Breaker Retainers and NEC Code Compliance

This isn’t just a best practice—it’s a requirement. According to the National Electrical Code (NEC), specifically section 408.36(D) and 702.6, any back-fed breaker (like the one used in a generator interlock setup) must be mechanically secured in place. Electrical inspectors will look for a breaker retainer during final inspection, and failure to include one can result in a failed permit or rework. That’s why our team always recommends purchasing the retainer along with your interlock kit if it’s required for your panel model.



Why Retainers Must Match Your Panel

Breaker retainers are specific to both the panel brand and breaker type. For example, a Square D QO panel will require a different hold-down than a GE or Siemens panel. This is where mistakes can happen—installing the wrong retainer or skipping it altogether can compromise the safety of your setup. At Generator Interlock Technologies, we help simplify this process by providing a universal breaker retainer for all manufacturers.

Easy to Install, Critical to Safety

The installation process for a breaker retainer is usually straightforward. Most retainers fasten to the panel using a small screw or bolt and require just a screwdriver. Despite their simplicity, they serve a critical function: keeping your back-fed generator breaker locked down in the event of vibration, load changes, or external movement. It’s a simple piece of hardware with a big safety payoff.

Prevent Power Loss and Fire Risk

Not only does the retainer protect the breaker, but it also ensures your entire interlock setup functions properly. Without it, the generator breaker could become loose and fail to deliver power—or worse, arc inside the panel and pose a fire hazard. In emergency situations when you need backup power the most, the last thing you want is a loose connection. That’s why professionals always include this component in a proper generator hookup.

The Two Breaker Retainers We Offer

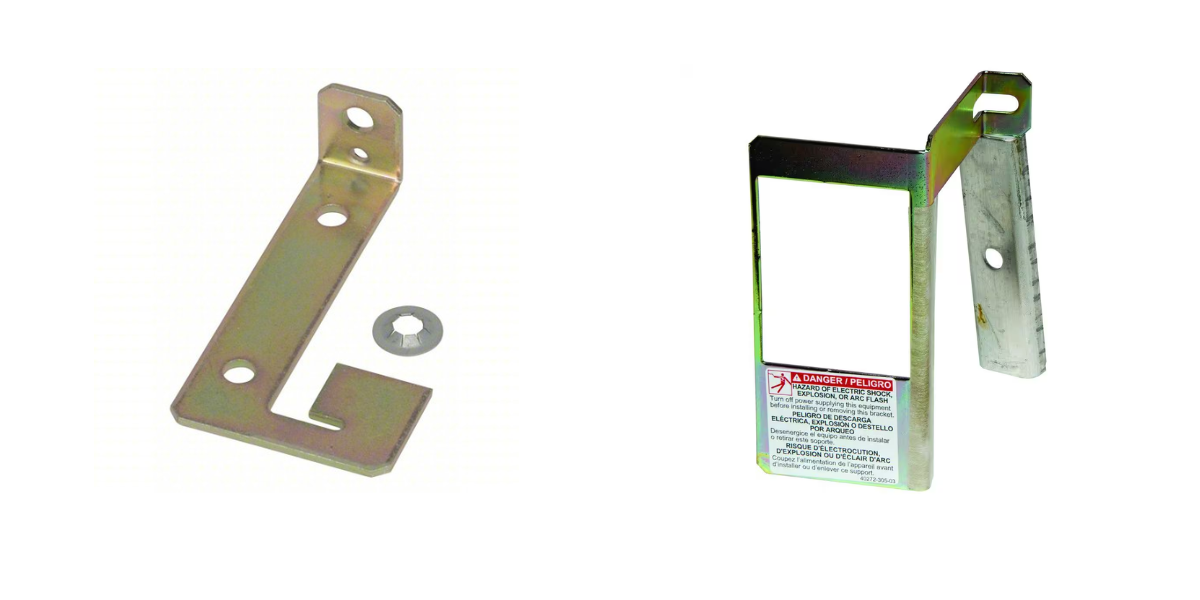

Here at Generator Interlock Technologies, we offer two types of breaker retainers designed to meet different panel configurations. For panels with two separate columns of breakers, we’ve developed a universal metal breaker retainer that provides a strong, secure fit across many brands and models. For simpler installations—or where a universal option doesn’t fit—we also offer a zip tie retainer accepted by WYLE, which is approved in many areas and provides a fast, effective solution. For single-column panels, we are currently developing a new metal version to serve this design. In the meantime, a properly installed zip tie or manufacturer-specific retainer will work just fine and still meet NEC requirements.

Final Thoughts: Small Part, Big Protection

In summary, a breaker retainer is a must-have for any interlock kit installation involving a back-fed generator breaker. It’s affordable, easy to install, and provides peace of mind that your system meets NEC standards and will perform when you need it. If you’re unsure whether your panel requires a retainer, our team is here to help you identify the correct part and ensure your installation is safe, secure, and fully compliant.

Check back next month for more expert tips on how to keep the lights on!
