Interlock Kit K-6610

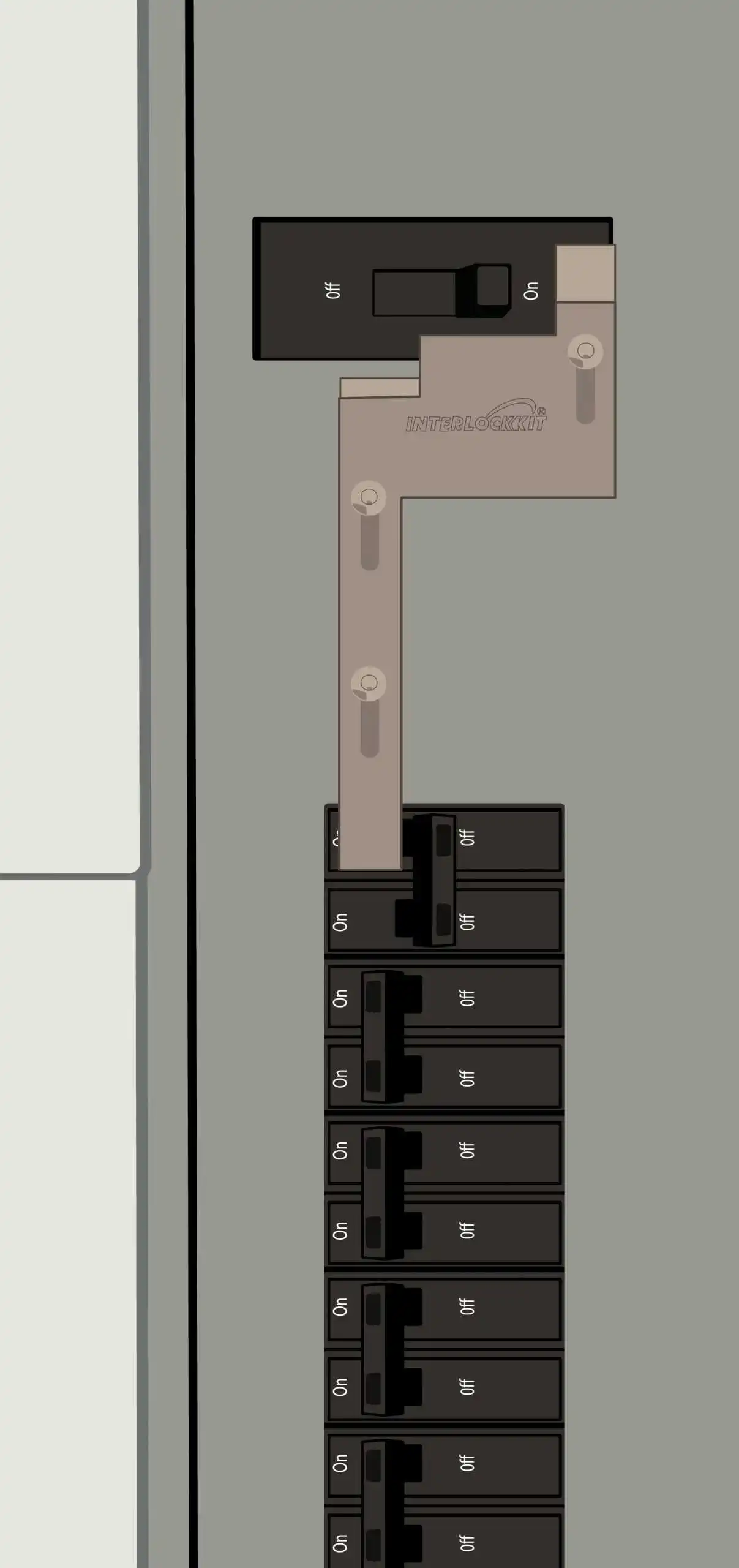

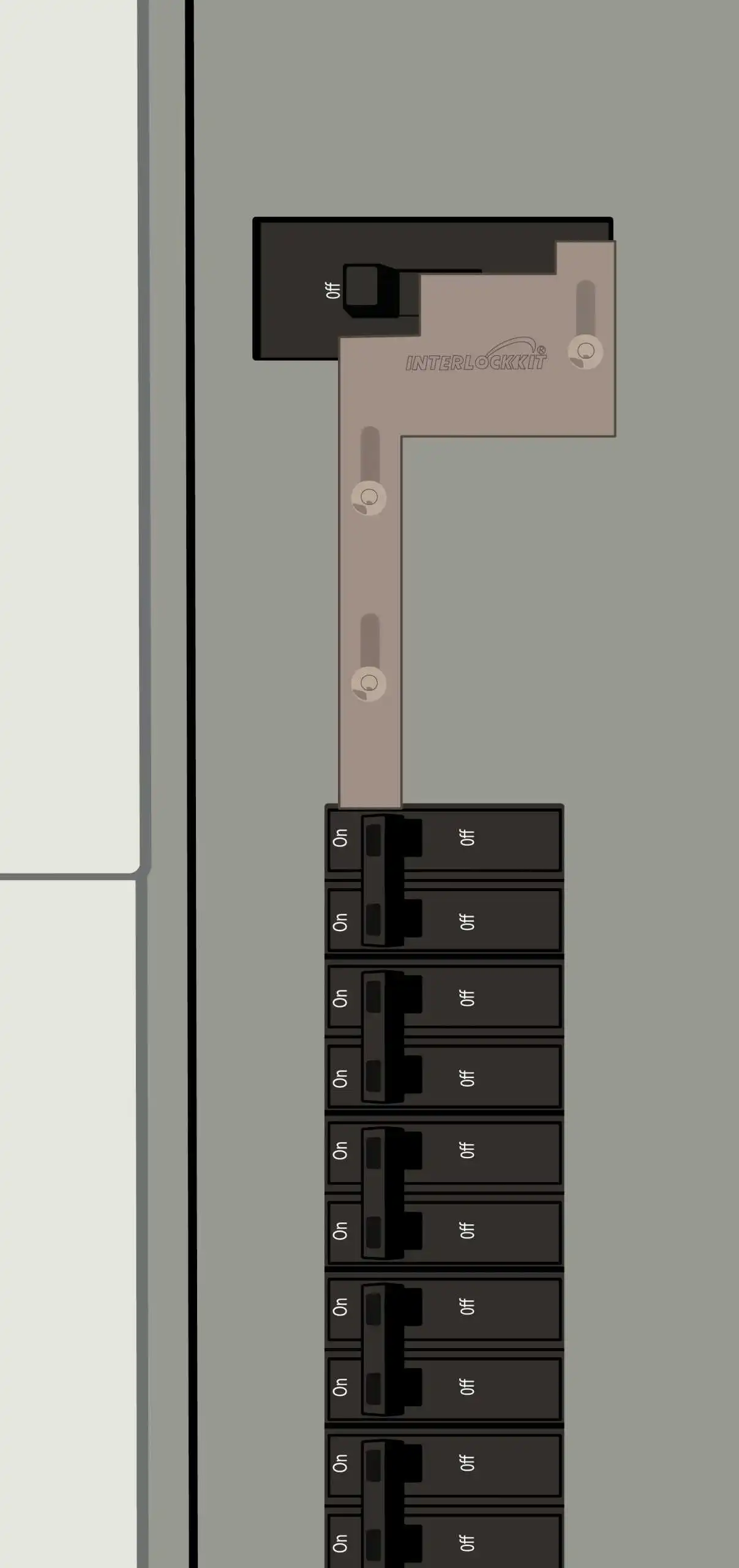

This Kit performs like a manual transfer switch for EATON / Cutler Hammer / Challenger electrical panels; requires:

• Single breaker column below the main breaker
• Gap between main breaker and breaker columns below, is: 5 1/4"
• 150-200 amp main breaker
• Main breaker toggle action: horizontally (left-right) throw direction ON & OFF
• Compatible with: BR style breakers

Requirements

• Install a two pole generator breaker directly below the main in the top two spaces of the breaker column

Modified versions of the Interlock Kit exist, see: K-6710, K-6715, K-6716

Kit Installation Instructions
