Interlock Kit K-5110 | Interlock Kit

This Interlock Kit performs like a manual transfer switch for Square D electrical panels with the following features:

• Space between breaker columns: 1/2"

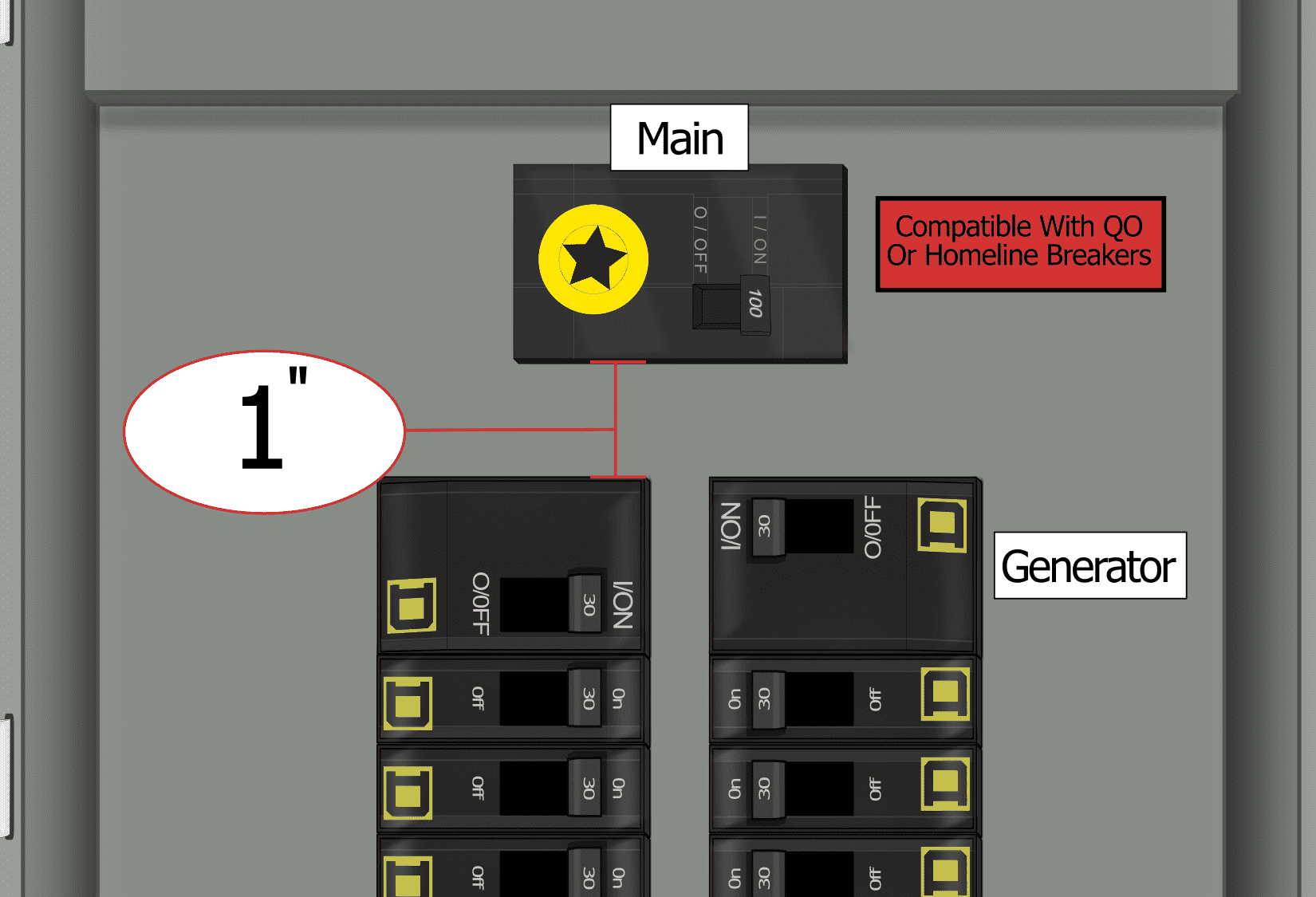

• Gap between main breaker and breaker columns below: 1" or more
• 100-125 amp main breaker
• Main breaker toggle action: horizontal (left-right) throw direction ON & OFF
• Main breaker centered over both breaker columns
• Compatible with: QO breakers

Requirements:

• Install a two pole generator breaker in the top two spaces of the right column: spaces 2 & 4
• Page four of the installation instructions includes a list of contents included in Kit K-5110

Kit Installation Instructions
