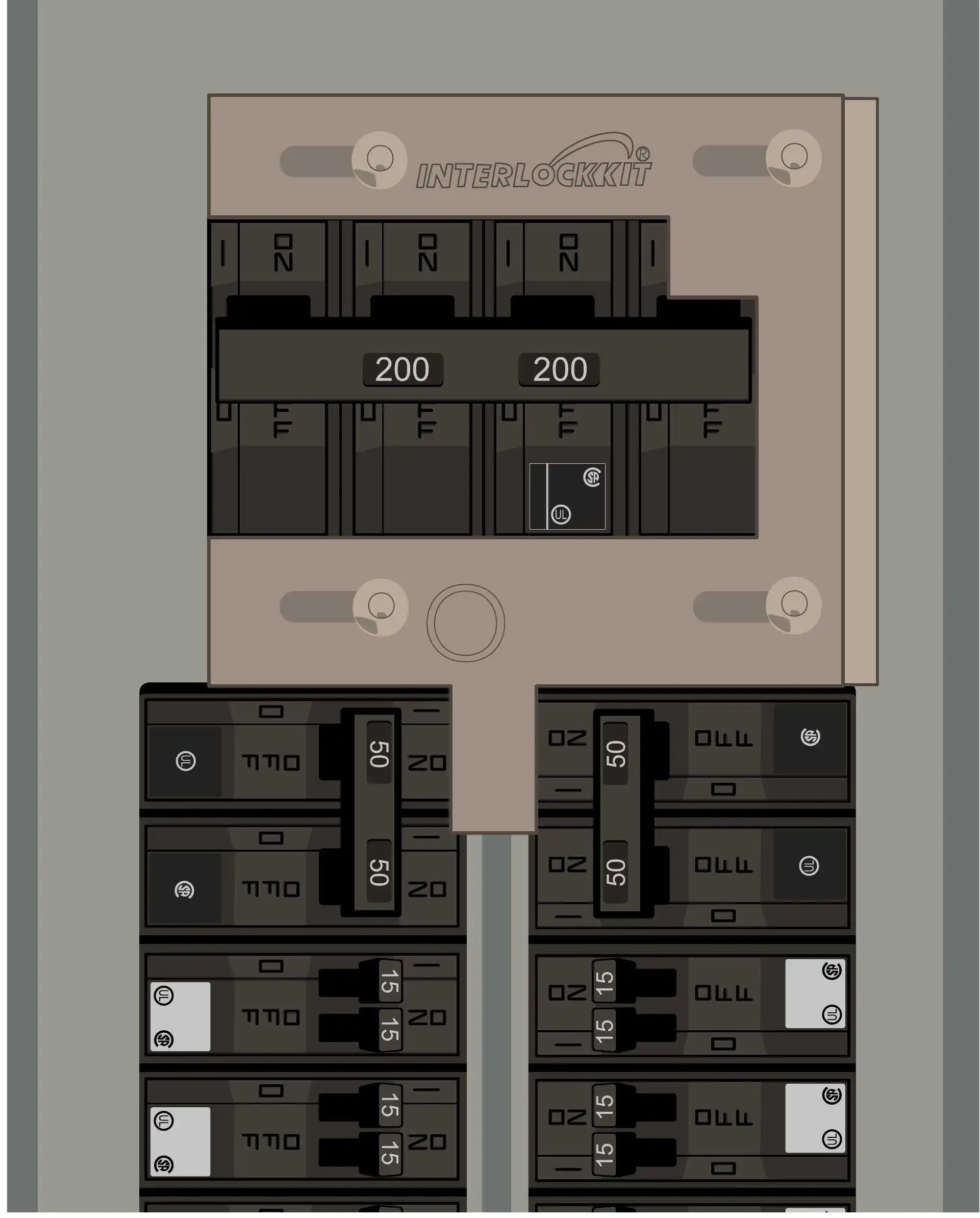

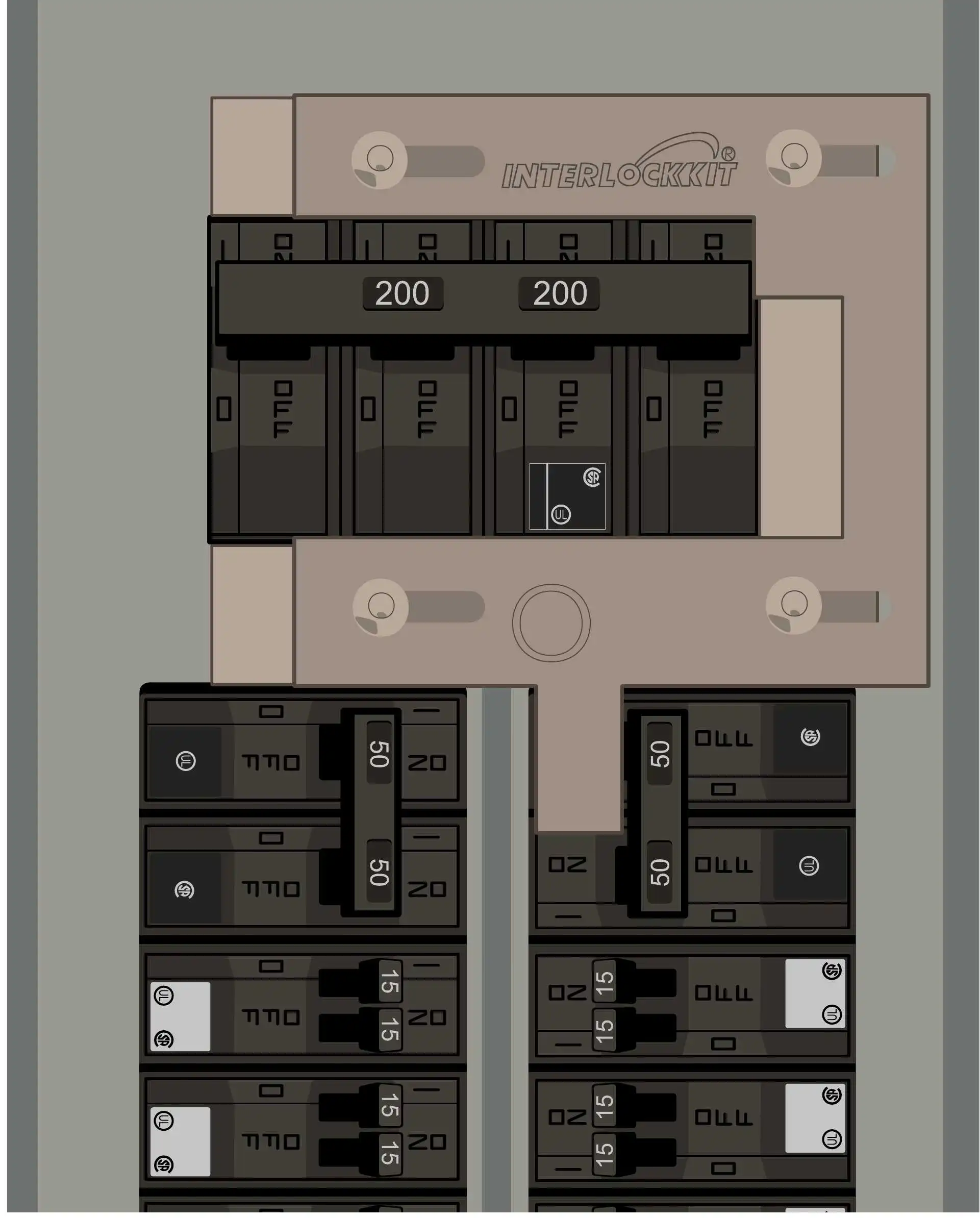

Interlock Kit K-1010
$149.95
PATENT PENDING PRODUCT
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

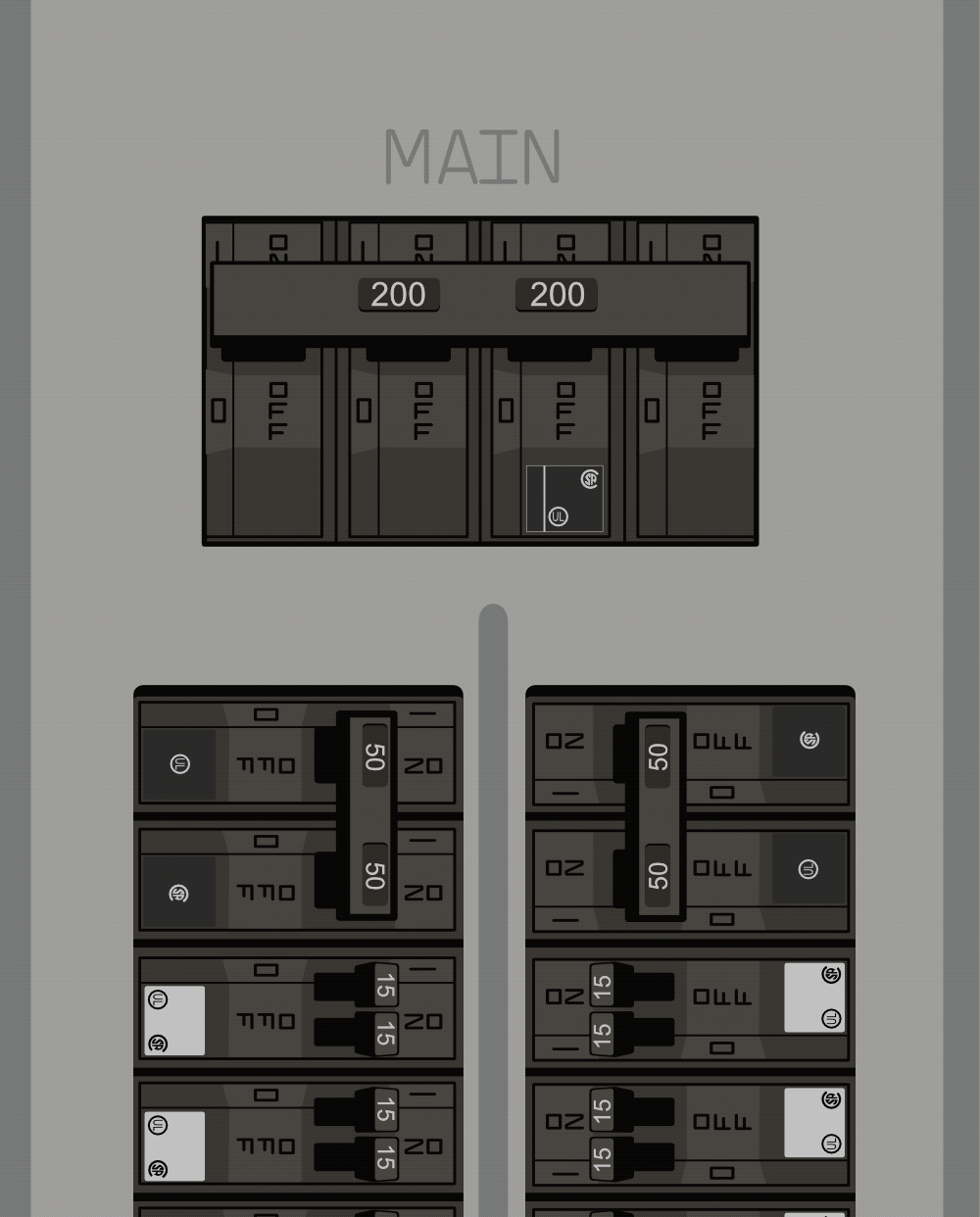

This Kit performs like a manual transfer switch for Siemens/ ITE / Murray / Gould electrical panels with the following features:

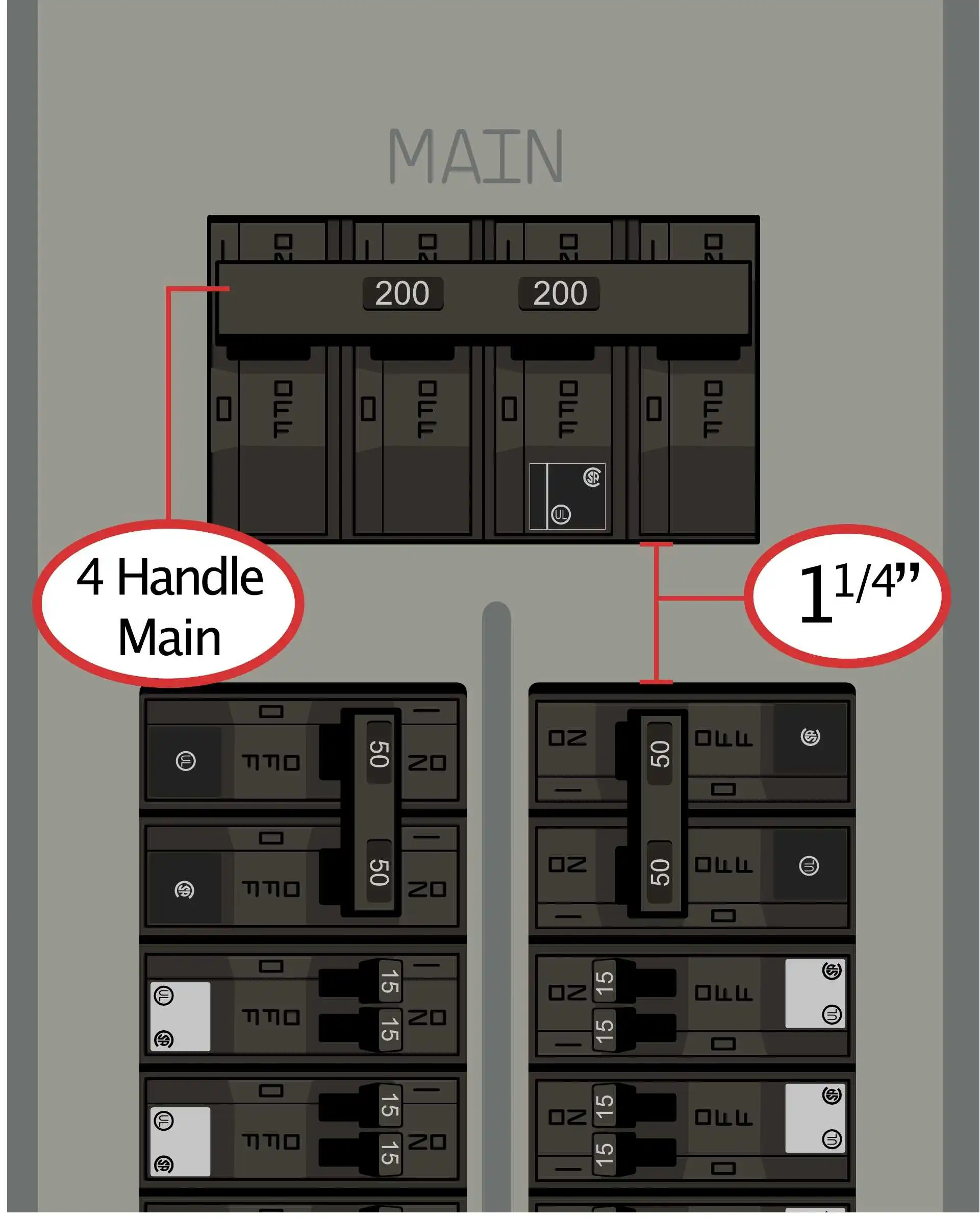

- Space Between breaker columns: 1/2"
- Gap between the main breaker and columns below, is: 1 1/4" typically
- 150-200 amp main breaker
- Main breaker toggle action: vertical (up-down) throw direction ON & OFF
- Main breaker is centered over both breaker columns
Requirements:
- Install a two-pole generator breaker, located in: spaces 2 & 4 (top two spaces in the right column)
- See page four of the installation instructions for more info on the kit contents for Interlock Kit K-1010
Modified versions of this Interlock Kit exist, see: Kit K-8310
Additional information
| Weight | 2 lbs |
|---|---|
| Catalog #: | G2040MB1200CU, G4040MB1200CU, M1632MB1200F MC0816B1200RCT, G2040MB1200 Series E Type 1, G3040B1200 Series –Type 1, GQF40MBB ITE, G2440MB1200, MW2040MB1200F, G3040MB1200cuSeries E Type – other compatible catalog #'s may not be listed here yet. Use the details listed in "Description" to help match your kit! |
Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!
