Interlock Kit K-3210R2

$149.95

778 in stock

PATENT PENDING PRODUCT

Have a question or don’t see a kit for your panel? We make custom Interlock Kits for any panel or solar scenario – call (804) 531-3359 or Contact Us!

SKU: K-3210R2 Categories: , , , ,

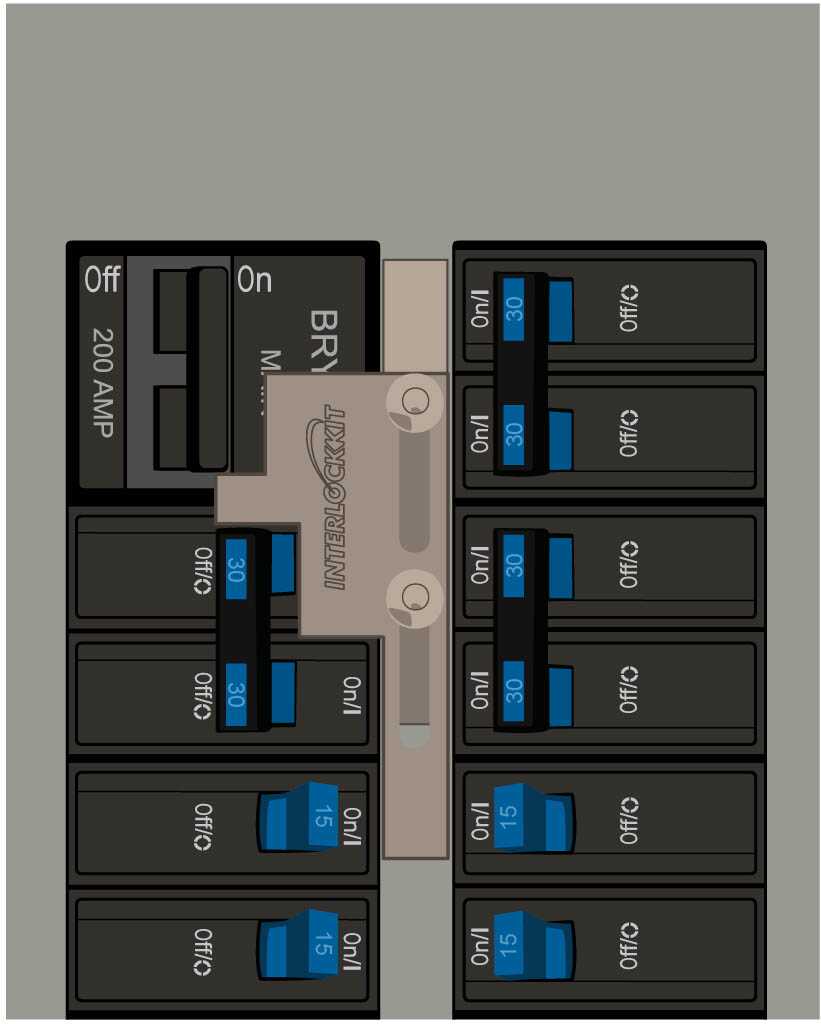

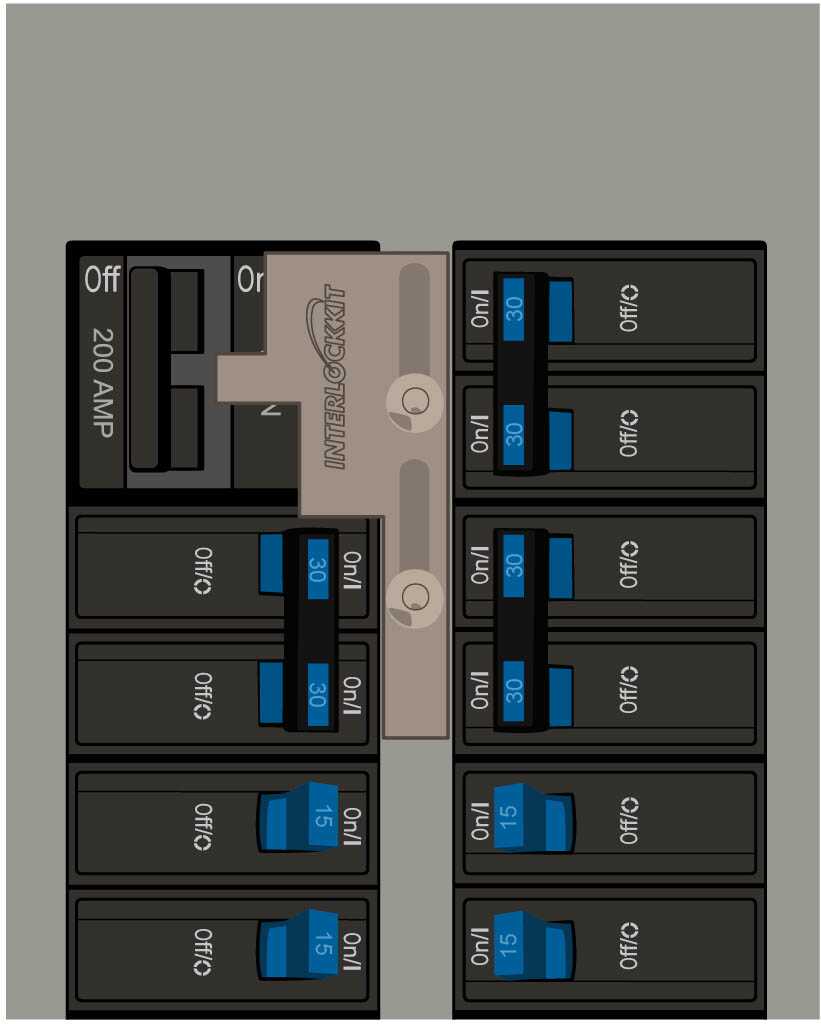

This Interlock Kit performs like a manual transfer switch for Bryant / Challenger / Westinghouse / & Midwest electrical panels with the following features:

  • Space between breaker columns: 1/2″
  • No gap
  • 150-200 amp 2 pole main breaker
  • Main breaker toggle action: Horizontal (right-left) throw direction ON & OFF
  • Main breaker sits directly over top of the left breaker column
  • Works with Adjustable dead front or flush mount panel types!
  • REPLACED KIT K-3211
  • Will replace the original K-3210 in the future

Requirements:

  • Install a generator breaker directly below the main breaker in spaces: 5 & 7

See Interlock Kit K-3110 or K-3110 R2 if the main breaker is located on the right side of the panel

Additional information

Weight 1 lbs
